Запчасти Case 921 (9-026) - BATTERY COMPARTMENT COVERS (09) - CHASSIS/ATTACHMENTS

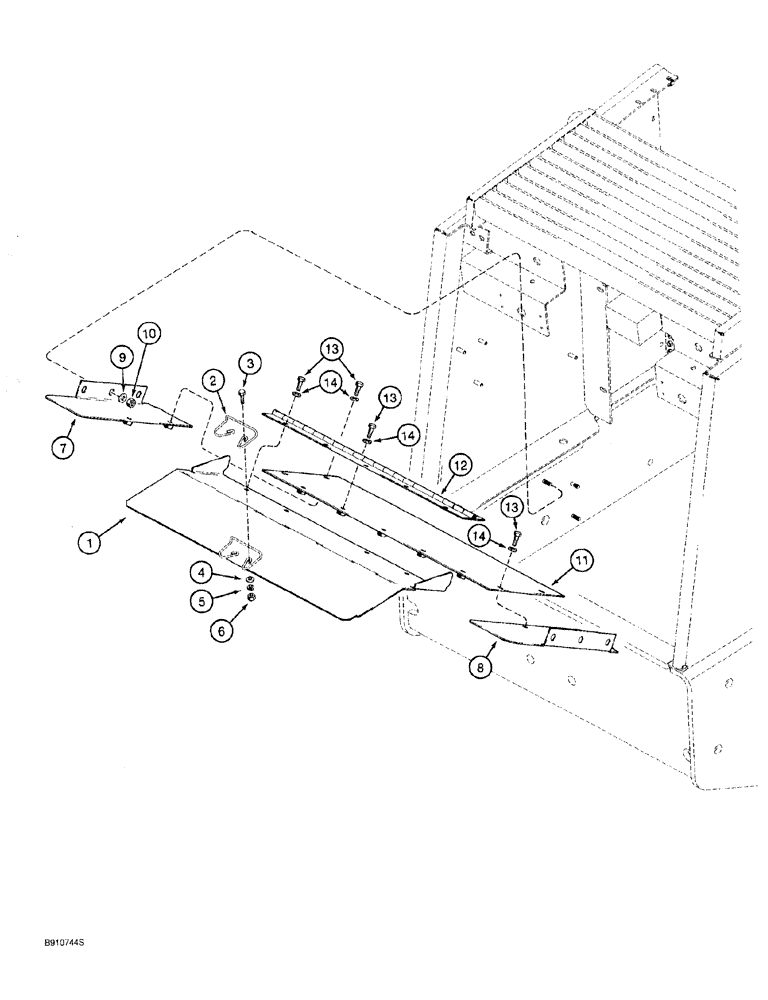

Схема запчастей Case 921 - (9-026) - BATTERY COMPARTMENT COVERS (09) - CHASSIS/ATTACHMENTS
2
3
12
1
6
14
10
13
14
13
7
14
5
9
8
11
4
13

Артикул

Название

Примечание

Количество

1

L128950

DOOR

battery compartment

1шт.

2

L125636

HANDLE

hold down

1шт.

3

11-310

CARRIAGE BOLT,Short NK, 3/16"-24 x 5/8", G2, Full Thd

BOLT, CARRIAGE, Short NK, 3/16"-24 x 5/8", G2, Full Thd

2шт.

4

495-31022

WASHER,#10

2шт.

5

492-11010

LOCK WASHER,#10

2шт.

6

225-14110

NUT,#10-24

2шт.

7

L128947

LARGE PLATE

PLATE, LARGE cover support, left-hand

1шт.

8

L128948

LARGE PLATE

PLATE, LARGE cover support, right-hand

1шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

6шт.

10

231-1446

NUT,3/8" - 16, Gr 5

6шт.

11

L128949

COVER

battery compartment

1шт.

12

L128887

HINGE

battery compartment cover

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

14шт.

14

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

14шт.

Выбрано товаров: 14
