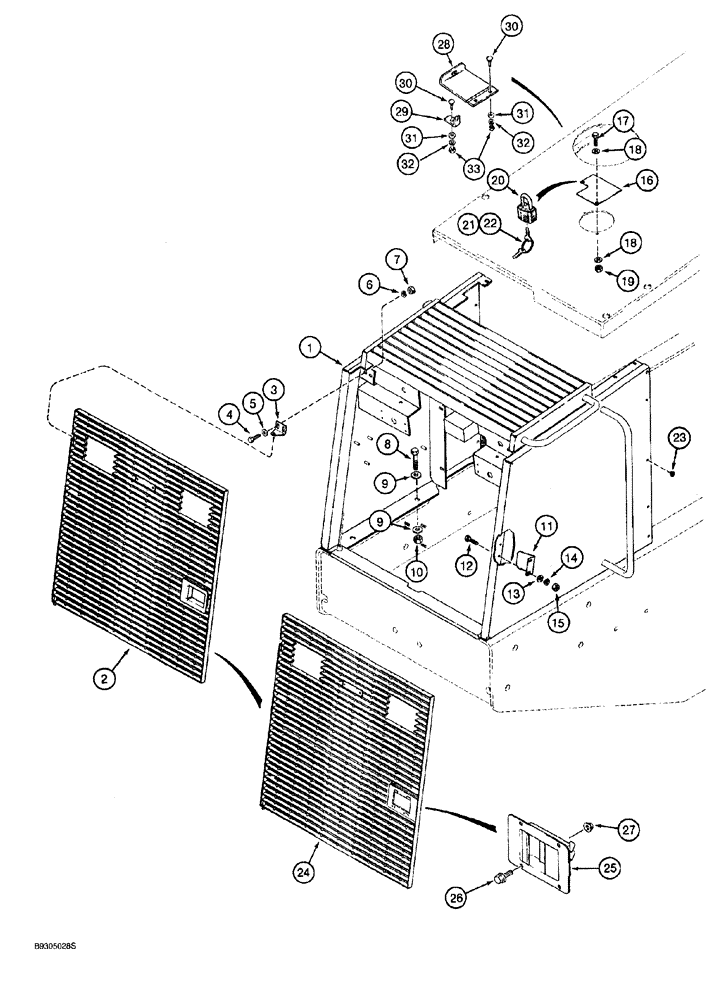

Запчасти Case 921 (9-024) - RADIATOR GUARD AND GRILLE (09) - CHASSIS/ATTACHMENTS

1

L129700

GUARD ASSY.

radiator

1шт.

2

L129754

GRILLE ASSY

radiator, if used

1шт.

3

L128614

SUPPORT

BRACKET upper grille

1шт.

4

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT hex, 5/8 NC x 2 inch, grade 8

6шт.

9

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

12шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

11

L129755

FASTENER

CATCH grille lever

1шт.

12

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

13

495-11034

WASHER,5/16", SAE

(Flat, 11/32 x 11/16 x 1/16")

2шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

425-105

NUT,5/16"-18, G5

2шт.

16

L129339

LARGE PLATE

PLATE, LARGE lockup, radiator, if used

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

19

231-1446

NUT,3/8" - 16, Gr 5

1шт.

20

D93753

PADLOCK

includes keys, if used, Includes: Ref. 21, 22

2шт.

21

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

22

R29555

KEY

for Master padlock only, if used

2шт.

23

L126856

RIVET

CUSHION rubber

8шт.

24

109160A1

GRILLE ASSY

radiator, with bolt on latch, if used

1шт.

25

R56221

LATCH

LATCH radiator grille, used with Ref. 24 grille

1шт.

26

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

27

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

28

L112374

COVER

radiator hinge

1шт.

29

L112314

SUPPORT

TAB radiator cap access cover lock

1шт.

30

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

31

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

3шт.

32

492-11038

LOCK WASHER,3/8"

3шт.

33

425-106

NUT,3/8"-16, Cl 5

3шт.
