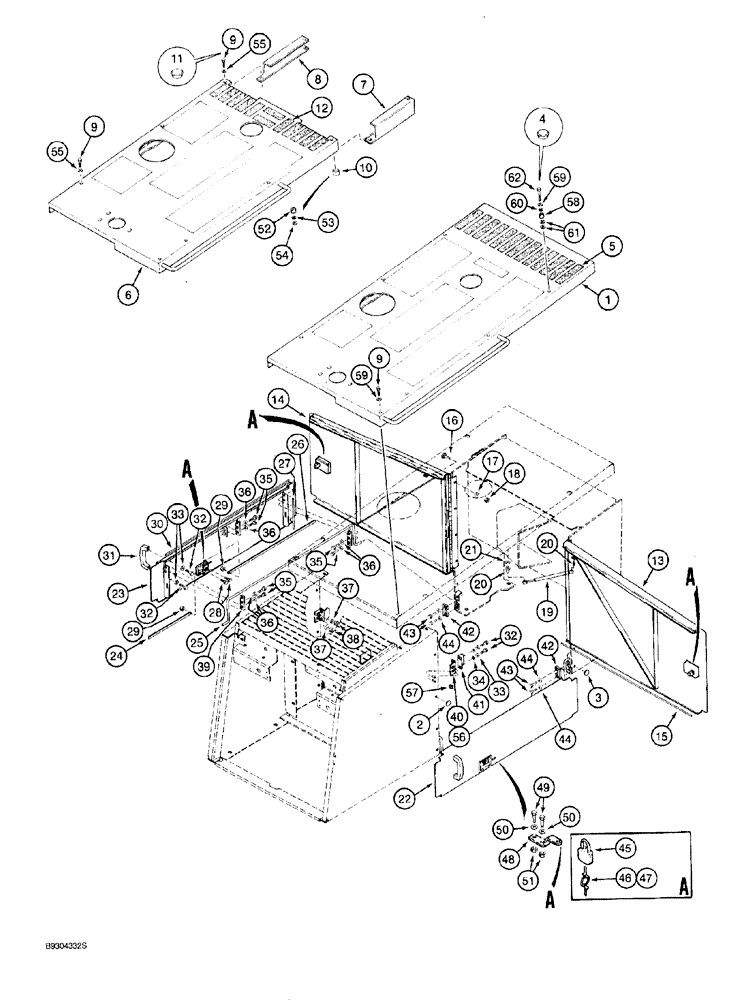

Запчасти Case 921 (9-020) - HOOD AND SIDE DOORS, PRIOR TO P.I.N. JAK0026022 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
L128247
HOOD ASSY.
engine top, models without air conditioning
1шт.
2
L126856
RIVET
CUSHION rubber
1шт.
3
107864A1
HITCH DAMPER
CUSHION rubber
4шт.
4
353-417
PLUG,Dome, 2.000" hole, Nylon
button, 2 inch
7шт.
5
D55216
PAD,2" x 9"
13шт.
6
L128739
HOOD ASSY.
engine top, models with air conditioning
1шт.
7
L128772
SLIDE
CHANNEL hood, right-hand, models with air conditioning
1шт.
8
L128773
SLIDE
CHANNEL hood, left-hand, models with air conditioning
1шт.
9
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
7шт.
10
D146035
SPACER,10.31mm ID x 16mm OD x 15.5mm L
SPACER hood channel, Replaces: L128774 or D76209, if used
2шт.
11
353-413
PLUG,Dome, 1.187" hole, Nylon
button, 1-3/16 inch
5-7шт.
12
D55216
PAD,2" x 9"
13шт.
13
L128785
DOOR ASSY.
engine access, upper right-hand
1шт.
14
L128786
DOOR ASSY.
engine access, upper left-hand
1шт.
15
D60179
RUBBER STRIP
TRIM edge, 6-1/2 inch (165 mm) long, cut from F42827 bulk trim, see below
2шт.
16
33-620
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT carriage, 3/8 NC x 1-1/4 inch
8шт.
17
496-21041
WASHER,13/32" x 13/16" x .089", HDN
8шт.
18
425-106
NUT,3/8"-16, Cl 5
8шт.
19
L129243
GAS STRUT,498mm Extended, 321mm Compressed
upper engine access door
2шт.
20
L129244
STUD
cylinder mounting
4шт.
21
495-11034
WASHER,5/16", SAE
(Flat, 11/32 x 11/16 x 1/16")
2шт.
22
L128797
DOOR ASSY.
engine access, lower right-hand
1шт.
23
L128798
DOOR ASSY.
engine access, lower left-hand
1шт.
24
L128782
BAR
locking, short
2шт.
25
L128781
ROD
pivot, lower engine access door
2шт.
26
L128783
BAR
locking, long
2шт.
27
D38500
LINING
TRIM edge, 9-13/16 inch (249 mm) long, cut from F42827 bulk trim, see below
4шт.
28
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
29
231-1444
NUT,1/4"-20, GB
4шт.
30
D39366
LINING
TRIM edge, 20 inch (508 mm) long, cut from F42827 bulk trim, see below
4шт.
31
A23725
HANDLE
grab, engine access door
2шт.
32
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
8шт.
33
495-11034
WASHER,5/16", SAE
(Flat, 11/32 x 11/16 x 1/16")
8шт.
35
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
12шт.
36
496-21041
WASHER,13/32" x 13/16" x .089", HDN
12шт.
37
496-41041
WASHER,13/32" x 1 1/8" x .134"
Hardened
4шт.
39
L129083
SUPPORT
BRACKET rod retaining
6шт.
40
L127957
SUPPORT
BRACKET door striker, includes weld nuts
2шт.
41
L127958
LARGE PLATE
PLATE, LARGE striker
2шт.
42
L128792
LOCK ASSY
STRIKER lower access door
4шт.
43
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
8шт.
44
496-21041
WASHER,13/32" x 13/16" x .089", HDN
8шт.
45
D93753
PADLOCK
includes keys, if used, Includes: Ref. 46, 47
4шт.
46
D93751
SET OF 2 KEYS
for Yale padlock only, if used
2шт.
47
R29555
KEY
for Master padlock only, if used
2шт.
48
L129347
SUPPORT
BRACKET lockup, access door
2шт.
49
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
hex, 5/16 NC x 1-1/4 inch
4шт.
50
396-21034
WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk
flat, hardened, 11/32 x 11/16 x 3/32 inch
4шт.
51
425-105
NUT,5/16"-18, G5
4шт.
52
D146035
SPACER,10.31mm ID x 16mm OD x 15.5mm L
SPACER hood, models with air conditioning
2шт.
53
492-11062
BEARING WASHER,5/8"
Models with air conditioning
2шт.
54
495-11066
WASHER,5/8", SAE
flat, 21/32 x 1-5/16 x 3/32 inch, models with air conditioning
2шт.
55
496-41041
WASHER,13/32" x 1 1/8" x .134"
Hardened, Models with air conditioning
7шт.
56
L127956
SUPPORT
BRACKET door striker, used with 131-637
2шт.
57
131-637
SPRING NUT,Ret, J, 5/16"-18
4шт.
58
D146035
SPACER,10.31mm ID x 16mm OD x 15.5mm L
SPACER hood, models without air conditioning
2шт.
59
496-41041
WASHER,13/32" x 1 1/8" x .134"
Hardened, Models without air conditioning
7шт.
60
492-11062
BEARING WASHER,5/8"
Models without air conditioning
2шт.
61
495-11066
WASHER,5/8", SAE
flat, 21/32 x 1-5/16 x 3/32 inch, models without air conditioning
4шт.
62
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
F42827
TRIM,2946.4mm L
TRIM edge, bulk, 116 inch (2946 mm) long
1шт.
Выбрано товаров: 63
