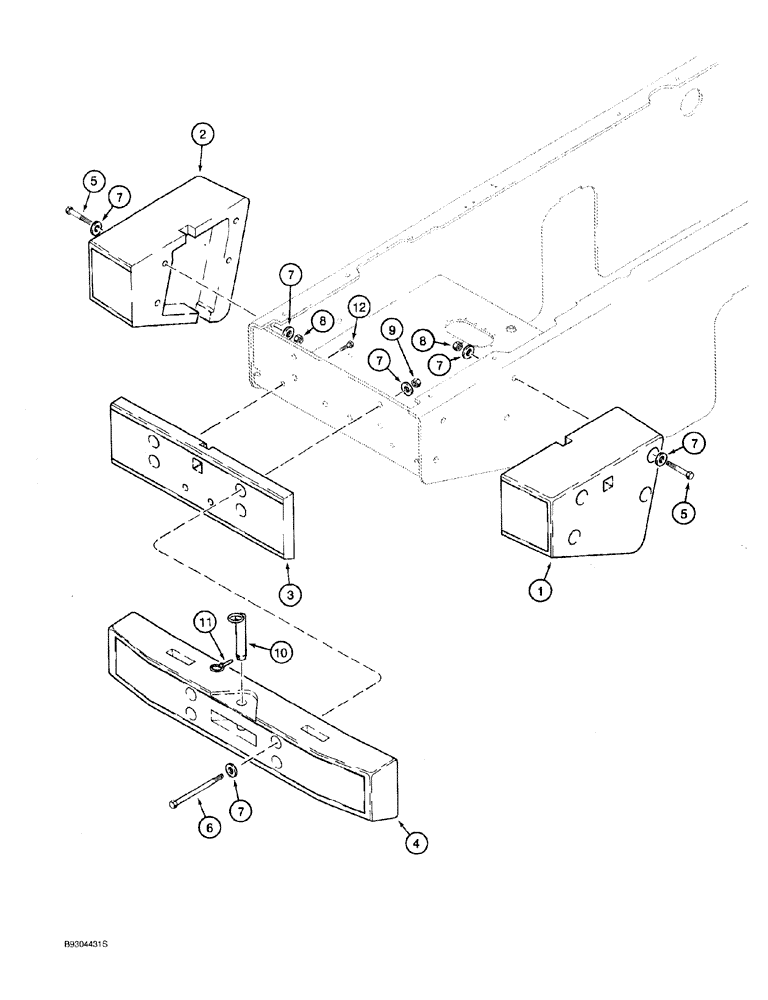

Запчасти Case 921 (9-018) - COUNTERWEIGHTS, 4785 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

1

L129802

BALANCER

COUNTERWEIGHT right-hand rear, 1345 pound

1шт.

2

L129803

BALANCER

COUNTERWEIGHT left-hand rear, 1345 pound

1шт.

3

L129801

BALANCER

COUNTERWEIGHT center rear, 545 pound

1шт.

4

L129804

BALANCER

COUNTERWEIGHT center rear, outer, 1550 pound

1шт.

5

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

hex, 1 NC x 5 inch

8шт.

6

326-16192

BOLT,Hex, 1" - 8 x 12", Gr 8

4шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, hardened

24шт.

8

425-1016

NUT,1"-8, G5

Hex

8шт.

9

329-1016

NUT,1"-8, G8

4шт.

10

101311A1

HITCH PIN

Hitch

1шт.

11

D33805

PIN

locking

1шт.

12

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

13

S243101

WEAR PAD

anti-skid, counterweight, wide, not shown

1шт.

14

D55216

PAD,2" x 9"

counterweight, narrow, not shown

2шт.
