Запчасти Case 921 (9-016) - COUNTERWEIGHTS, 3235 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

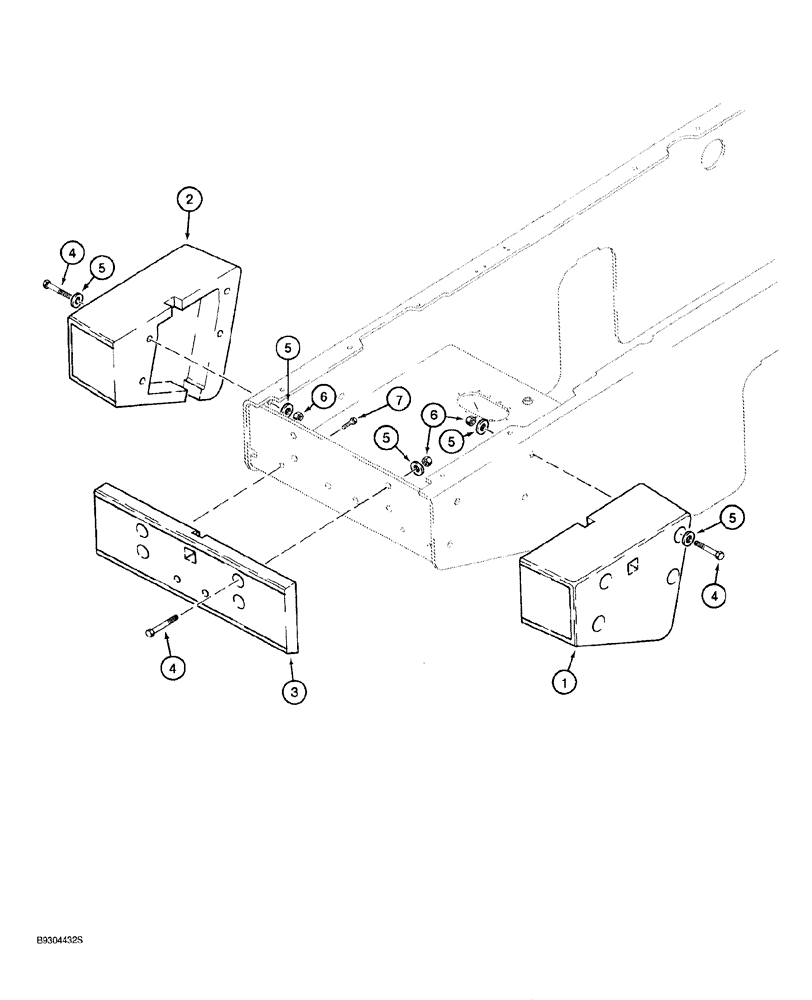

Схема запчастей Case 921 - (9-016) - COUNTERWEIGHTS, 3235 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS
6
5
1
5
2
4
6
5
5
7
5
3
4
4

Артикул

Название

Примечание

Количество

1

L129802

BALANCER

COUNTERWEIGHT right-hand rear, 1345 pound

1шт.

2

L129803

BALANCER

COUNTERWEIGHT left-hand rear, 1345 pound

1шт.

3

L129801

BALANCER

COUNTERWEIGHT center rear, 545 pound

1шт.

4

413-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

BOLT hex, 1 NC x 5-1/2 inch

12шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, hardened

20шт.

6

425-1016

NUT,1"-8, G5

Hex

12шт.

7

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

8

S243101

WEAR PAD

anti-skid, counterweight, not shown

4шт.

Выбрано товаров: 8
