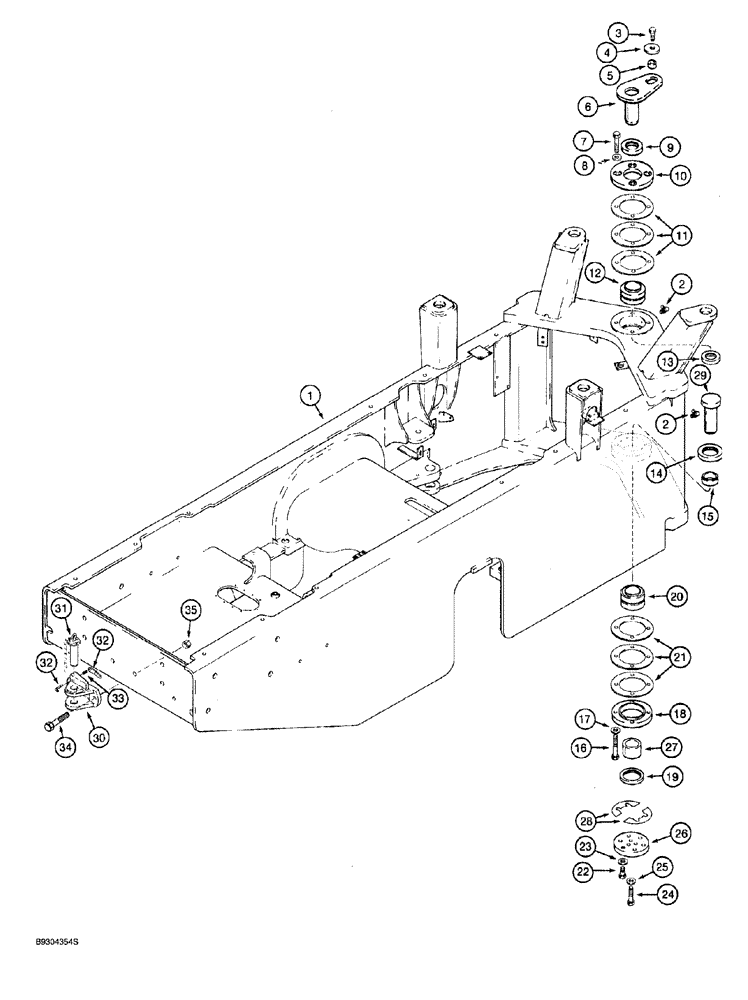

Запчасти Case 921 (9-014) - REAR FRAME AND PIVOT (09) - CHASSIS/ATTACHMENTS

1

L129200

CHASSIS

FRAME rear, includes fuel tank

1шт.

The plug on the bottom of the fuel tank is P/N 221-35.

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

4

NLS

NO LONGER SERVICED

WASHER flat, special, hardened

1шт.

5

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

upper pin

1шт.

6

L129985

HANDLED SHAFT

PIN upper pivot

1шт.

7

326-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

4шт.

8

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

4шт.

9

L127989

SEAL,85.73mm ID x 120.8mm OD x 12.7mm Thk

upper articulation plate

1шт.

10

L128223

RETAINER

upper pivot

1шт.

11

L128240

SHIM,138.5mm ID x 218mm OD x 0.1mm Thk

SHIM upper pivot, 0.1 mm thick

1шт.

11

L128237

SHIM

SHIM upper pivot, 0.25 mm thick

1шт.

11

L128236

SHIM

SHIM upper pivot, 0.5 mm thick

1шт.

12

L127970

TAPERED BEARING,85.72mm ID x 136.53mm OD x 60.33mm W

upper pivot

1шт.

13

L127988

SEAL,85.73mm ID x 119.2mm OD x 12.7mm Thk

lower, upper articulation plate

1шт.

14

L127991

SEAL,107.95mm ID x 139.85mm OD x 12.7mm Thk

upper, lower articulation plate

1шт.

15

L130013

SPACER

upper, lower pivot bearing

1шт.

16

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

4шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

4шт.

18

L128232

RETAINER

lower pivot

1шт.

19

L127990

SEAL,107.95mm ID x 189.85mm OD x 14.27mm Thk

lower, lower pivot

1шт.

20

L127971

TAPERED BEARING,89.99mm ID x 154.99mm OD x 88mm W

lower pivot

1шт.

21

L128235

SHIM

lower pivot, 0.1 mm thick

1шт.

21

L128234

SHIM

SHIM lower pivot, 0.25 mm thick

1шт.

21

L128233

SHIM,156.4mm ID x 228mm OD x 0.5mm Thk

lower pivot, 0.5 mm thick

1шт.

22

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

6шт.

23

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

flat, hardened, 13/16 x 1-3/4 x 7/32 inch

6шт.

24

326-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

3шт.

25

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special

3шт.

26

L130011

LARGE PLATE

PLATE, LARGE lower pin

1шт.

27

L130014

SPACER

lower, lower pivot bearing

1шт.

28

L128243

SHIM,112.4mm ID x 170mm OD x 0.11mm Thk

SHIM one half, lower plate, 0.1 mm thick

1шт.

28

L128242

SHIM,112.4mm ID x 170mm OD x 0.28mm Thk

SHIM one half, lower plate, 0.25 mm thick

1шт.

28

L128241

SHIM,112.4mm ID x 170mm OD x 0.54mm Thk

SHIM one half, lower plate, 0.5 mm thick

1шт.

29

L127953

PIVOT PIN,89.98mm OD x 243mm L

lower pivot, Replaces: L118857

1шт.

L125487

HITCH ASSY

clevis, includes pin, if used, Includes: Ref. 30 - 33

1шт.

30

NSS

NOT SOLD SEPARAT

HITCH clevis

1шт.

31

S300988

PIN

Includes chain

1шт.

32

S300989

HANDLE

includes locking pin

1шт.

33

S300990

SPRING

compression

1шт.

34

326-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

If used

2шт.

35

329-1016

NUT,1"-8, G8

If used

2шт.
