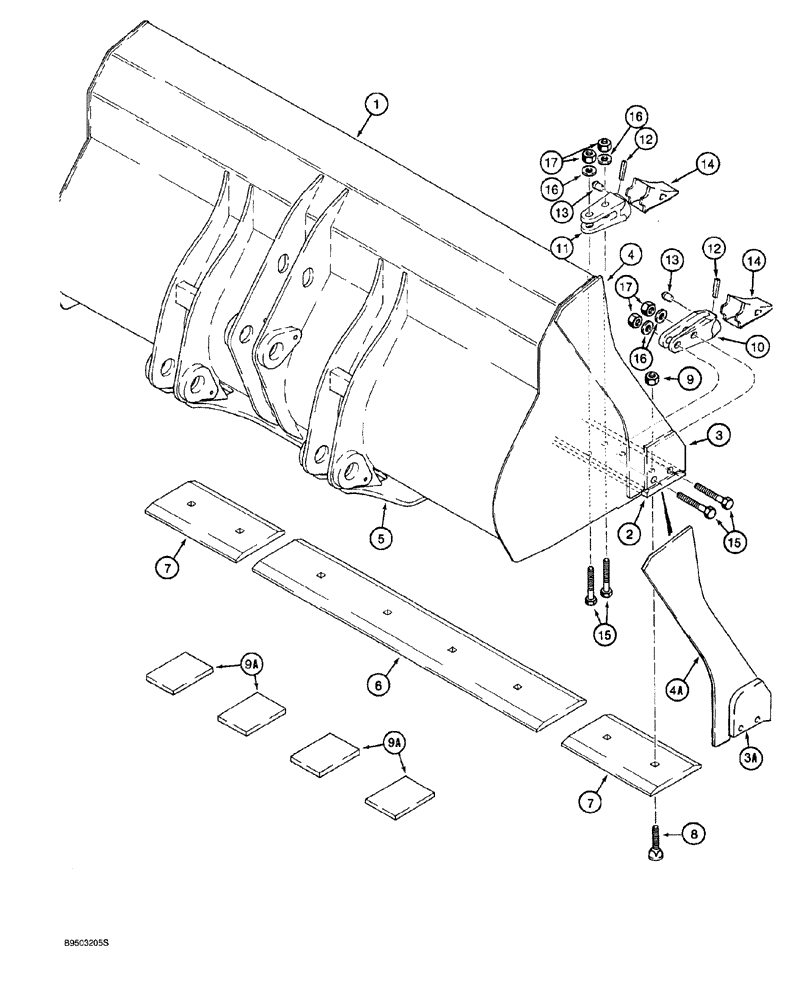

Запчасти Case 921 (9-008) - LOADER BUCKETS AND CUTTING EDGES, 4.75 CUBIC YARD (09) - CHASSIS/ATTACHMENTS

L128270

BUCKET

ASSY., loader, order from Machinery Price List, 120 inch wide, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET loader

1шт.

2

L127823

EDGE, CUTTING

bucket, weld-on

1шт.

3

L129539

BLADE

EDGE cutting, bucket corner, weld-on, no longer available, order L130041

2шт.

3a

L130041

EDGE, CUTTING

bucket corner, weld-on

2шт.

4

L128302

EDGE

cutting, bucket side, weld-on, no longer available, order L130042

2шт.

4a

L130042

EDGE

cutting, bucket side, weld-on

2шт.

5

L128388

LARGE PLATE

PLATE, LARGE bucket skid

1шт.

6

L128861

EDGE, CUTTING

center, bolt-on three-piece

1шт.

7

L128862

EDGE, CUTTING

end, bolt-on three-piece

2шт.

8

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

BOLT plow, 1 NC x 3-1/2 inch, grade 8, three-piece cutting edge

8шт.

9

329-1016

NUT,1"-8, G8

Bolt-on three-piece cutting edge

8шт.

9a

L129601

LARGE PLATE

PLATE, LARGE bucket skid, bolt-on three-piece cutting edge

4шт.

L128975

TOOTH

ASSY., bucket, corner

2шт.

L128973

TOOTH

ASSY., bucket, center, Includes: Ref. 10 - 14

6шт.

10

NSS

NOT SOLD SEPARAT

TOOTH bucket, corner

1шт.

11

NSS

NOT SOLD SEPARAT

TOOTH bucket, center

1шт.

12

S301663

PIN

flex, point retaining, bucket teeth

1шт.

13

S301664

PLUG

pin, bucket teeth

1шт.

14

S301662

POINT

tooth, bucket

1шт.

15

326-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

Bucket teeth

16шт.

16

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, hardened, bucket teeth

16шт.

17

329-1016

NUT,1"-8, G8

Bucket teeth

16шт.
