Запчасти Case 921 (9-004) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

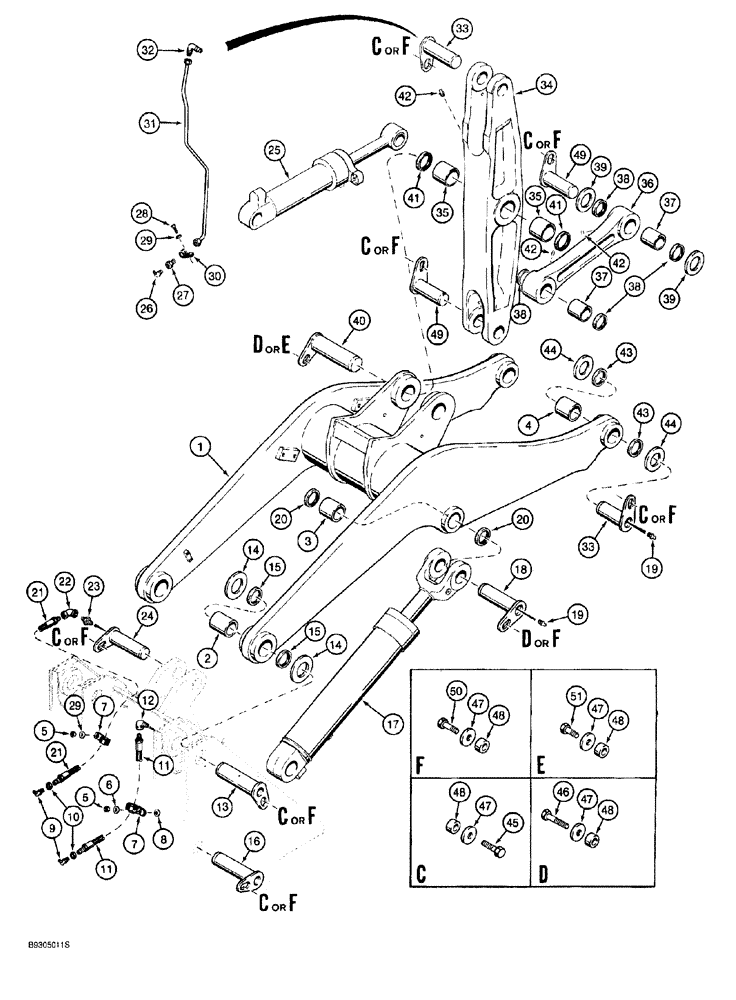

Схема запчастей Case 921 - (9-004) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS
22
15
46
24
47
13
48
50
14
47
28
26
7
32
34
43
11
1
14
48
23
19
27
9
35
25
38
4
44
51
42
20
31
33
48
42
10
39
3
39
49
7
43
42
37
29
44
20
30
38
33
15
16
8
29
12
5
17
47
40
41
35
5
36
49
2
19
38
45
41
18
47
48
6
21
21
11
37

Артикул

Название

Примечание

Количество

L127609

ARM, LIFT

FRAME ASSY., loader, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME loader lift

1шт.

2

L127806

BUSHING

loader lift frame, at chassis

2шт.

3

L127972

BUSHING

loader lift frame, at lift cylinder

2шт.

4

L129966

BUSHING

loader lift frame, at bucket

2шт.

5

231-1446

NUT,3/8" - 16, Gr 5

4шт.

6

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

7

49832

CLAMP

P-type, 5/16 inch ID

5шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

3шт.

9

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

3шт.

10

F53473

LOCK NUT,1/8-27 NPSM

special, lubrication hose

3шт.

11

L114211

HOSE,4.83mm ID x 549mm L

Lubrication

2шт.

12

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street

2шт.

13

L127848

HANDLED SHAFT

PIN mounting, loader lift, Serial Range: frame-chassis

2шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

14

L128823

WASHER

flat, wear, special

4шт.

15

L128528

RING,108.03mm ID x 119.46mm OD x 8.3mm Thk

SEAL loader lift, Serial Range: frame-chassis

4шт.

16

L127849

HANDLED SHAFT

PIN mounting, lift, Serial Range: cylinder-chassis

2шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

17

1986603C1

CYLINDER ASSY.

7 (178) ID x 34-1/8 inch (867 mm) stroke, see Figure 8-052

2шт.

18

L128356

HANDLED SHAFT

PIN mounting, lift cylinder to lift frame

2шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

20

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

lift, Serial Range: cylinder-chassis

4шт.

21

L54694

HOSE,4.8mm ID x 1041mm L

41 inch (1041 mm) long, lubrication

1шт.

22

217-1050

90 ELBOW,1/8" - 27 NPTF Female

90°

1шт.

23

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE hex, 1/8 PT x 1-1/16 inch, if used

1шт.

23

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE hex, 1/8 PT x 3/4 inch, if used, replaced 217-1079 on later production models

1шт.

24

L127847

HEADED PIN,88.9mm OD x 287.7mm L

mounting, bucket cylinder closed, Serial Range: end-chassis

1шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

25

1346171C3

CYLINDER ASSY.

8 (203) ID x 29-5/16 inch (745 mm) stroke, see Figure 8-054

1шт.

26

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

If used

1шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

If used, replaces 219-36 on later production

1шт.

27

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

straight, 7/16-20 flare x 1/8 inch female PT

1шт.

28

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

30

129083R1

CLAMP

P-type, 5/8 inch ID

1шт.

31

L129909

TUBE,0.625" OD

lubrication

1шт.

32

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

ELBOW, 90°, long, 7/16-20 flare x 1/8 inch PT

1шт.

33

L127847

HEADED PIN,88.9mm OD x 287.7mm L

PIN mounting, bucket cylinder to bellcrank and lift frame to bucket, left-hand lift frame to bucket pin, not shown

3шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

L129924

ROCKER ARM

BELLCRANK ASSY., loader bucket, Includes: Ref. 34, 35

1шт.

34

NSS

NOT SOLD SEPARAT

BELLCRANK Ioader bucket

1шт.

35

L128185

BUSHING

bellcrank

2шт.

L129925

ROCKER ARM

LINK ASSY., loader bucket dump, Includes: Ref. 36, 37

1шт.

36

NSS

NOT SOLD SEPARAT

LINK loader bucket dump

1шт.

37

L129906

BUSHING

loader bucket dump link

2шт.

38

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

wiper, loader bucket dump link

4шт.

39

105917A1

WASHER,98mm ID x 176mm OD x 3.5mm Thk

flat, special, Replaces: L129939

2шт.

40

L128354

HANDLED SHAFT

PIN mounting, bellcrank pivot

1шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

41

L128527

RING,111.43mm ID x 127.13mm OD x 7.95mm Thk

SEAL wiper, bellcrank pivot

2шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

43

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

wiper, loader lift frame, seals for left-hand lift frame to bucket pin not shown

4шт.

44

L128721

WASHER

flat, special, loader lift frame, washer for left-hand lift frame to bucket pin not shown

4шт.

45

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

10шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

46

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

3шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

47

NLS

NO LONGER SERVICED

WASHER flat, special, hardened

13шт.

48

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

pin mounting

13шт.

49

L129897

PIN,95.25mm OD x 275mm L

PIN mounting, bellcrank to dump link and dump, Serial Range: link-bucket

2шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

50

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

hex, 3/4 NC x 1-1/2 inch

1шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

51

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

12шт.

Use hardware in boxes labeled C or D for early production models and boxes labeled E or F for later production models.

1шт.

Выбрано товаров: 67
