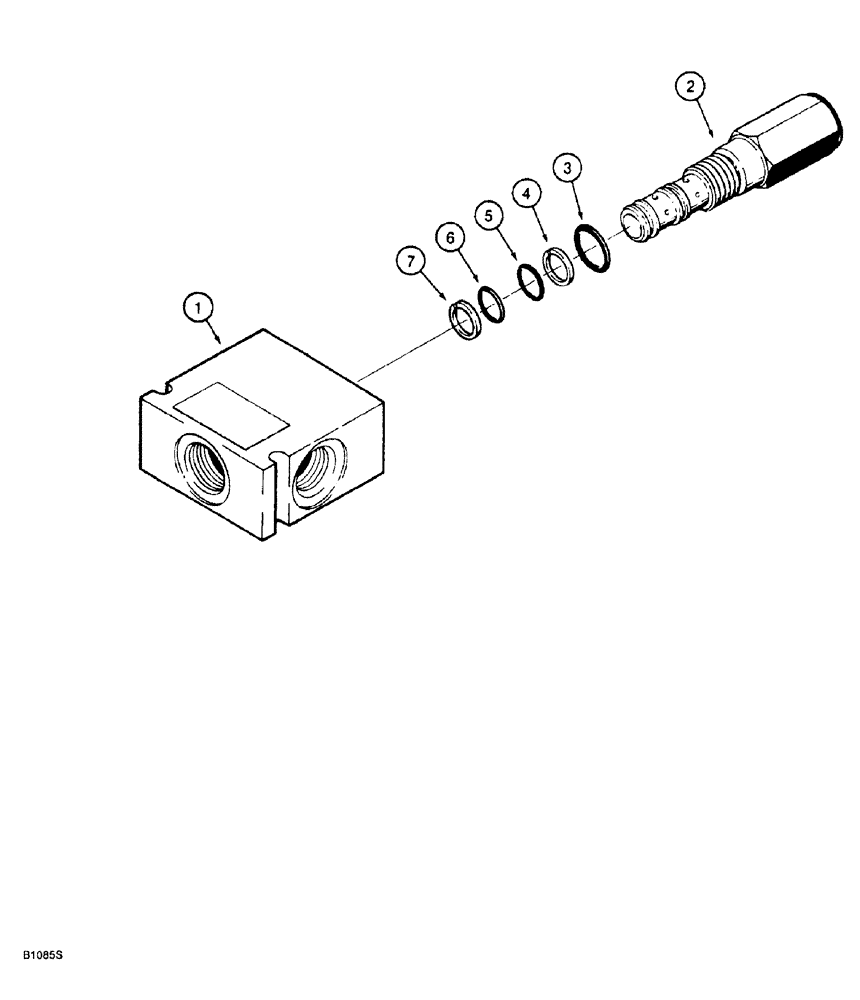

Запчасти Case 921 (8-110) - PRESSURE REDUCING VALVE L101927 (08) - HYDRAULICS

L101927

VALVE

ASSY., pressure-reducing, Includes: Ref. 1 - 7

1шт.

1

N6523

BODY

valve

1шт.

N6524

VALVE

RELIEF ASSY., pressure-reducing, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE relief assy.

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

L30012

RING

backup, outer

1шт.

5

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

backup, inner

1шт.
