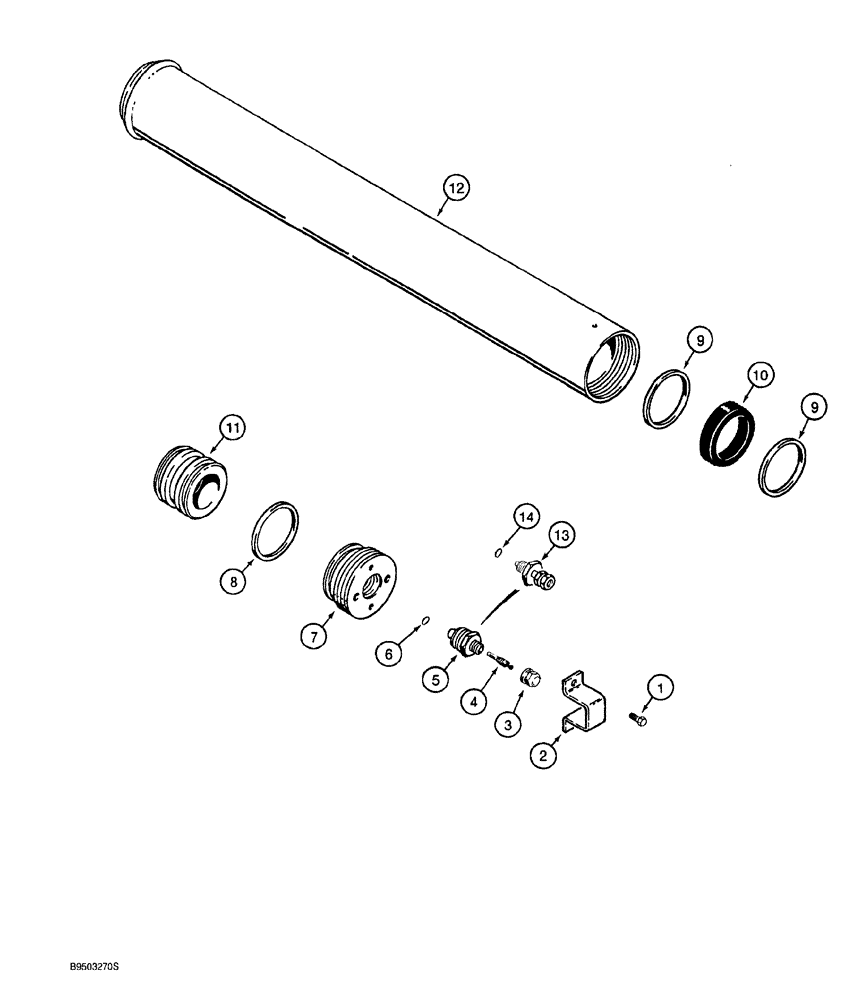

Запчасти Case 921 (8-108) - HYDRAULIC ACCUMULATOR (08) - HYDRAULICS

L118361

ACCUMULATOR

ASSY., hydraulic, Includes: Ref. 1 - 14

1шт.

1

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

self-tapping, hex head, No. 10 NC x 3/8 inch

2шт.

2

1978140C1

PROTECTOR

BRACKET valve

1шт.

1978142C1

VALVE

ASSY., charge, if used, Includes: Ref. 3 - 5

1шт.

L118361 accumulator may have a charge valve assembly or a gas valve. Replace valve with the type in your accumulator. The valves are not interchangeable.

1шт.

3

1978144C1

CAP

valve

1шт.

4

1978143C1

PISTON

CORE valve

1шт.

5

NSS

NOT SOLD SEPARAT

BODY order 1978142C1

1шт.

6

1978158C1

O-RING

O-RING valve

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND accumulator

1шт.

1978141C1

SEAL KIT

Incl Ref 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

RING seal, gland

1шт.

9

NSS

NOT SOLD SEPARAT

RING wear, Teflon, piston

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON accumulator

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE accumulator

1шт.

13

179066A1

VALVE

gas, if used, Includes: Ref. 14

1шт.

L118361 accumulator may have a charge valve assembly or a gas valve. Replace valve with the type in your accumulator. The valves are not interchangeable.

1шт.

14

1978158C1

O-RING

O-RING valve

1шт.
