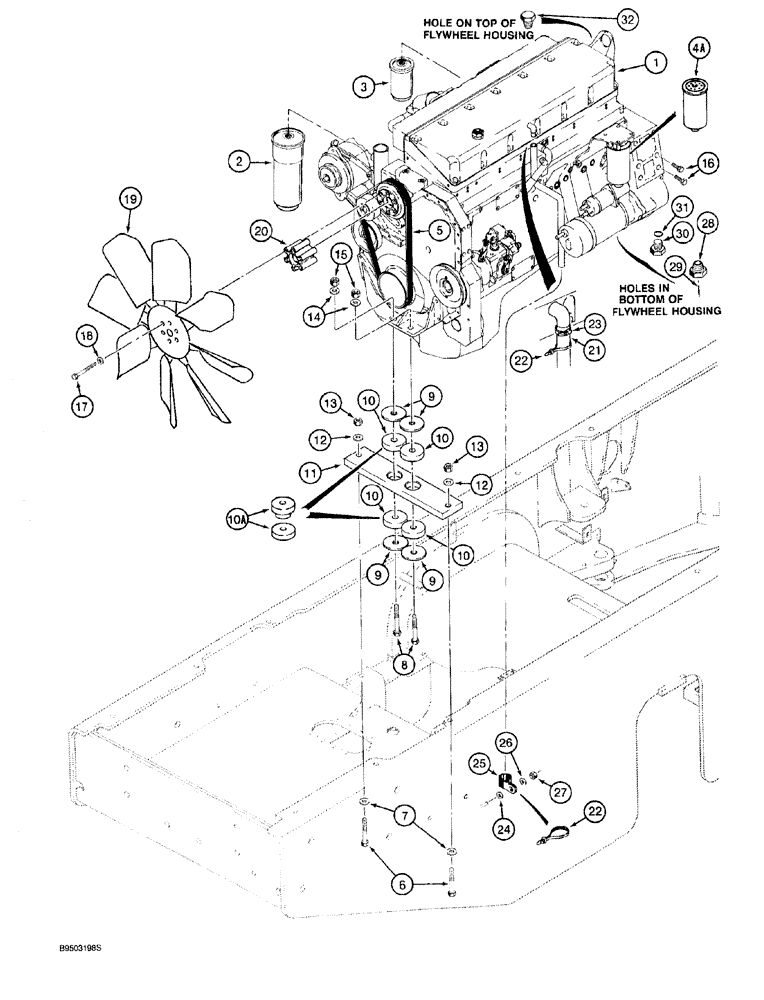

Запчасти Case 921 (2-010) - ENGINE MOUNTING AND FILTERS (02) - ENGINE

1

L129891

ENGINE ASSEMBLY

ENGINE ASSY L10 Cummins, Serial Range: -JAK0026022

1шт.

See your authorized Cummins engine dealer for internal serviceable parts and engine replacement.

1шт.

1

104048A1

ENGINE ASSEMBLY

ENGINE ASSY LTA10 Cummins, Includes: Ref. 2 - 5A, Start Serial: JAK0026022

1шт.

See your authorized Cummins engine dealer for internal serviceable parts and engine replacement.

1шт.

2

90-7101T1

FILTER, ENGINE OIL

FILTER, OIL engine, L129891 and 104048A1 engines

1шт.

3

S302030

FILTER

water conditioning, precharge, use at 2000 hour service, L129891 engine only

1шт.

4

A77544

FILTER

water conditioning, precharge, use at 250 hour service, L129891 and 104048A1 engines

1шт.

4a

90-3941T1

SEPARATOR

L129891 and 104048A1 engines

1шт.

5

S302026

BELT

Fan drive, Engine, L129891 and 104048A1 engines

1шт.

5a

90-3650T1

V-BELT,0.14" W x 34.50" L, 5 Ribs

Alternator, L129891 and 104048A1 engines, Replaces S302027, not shown

1шт.

6

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

2шт.

7

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, hardened, 13/16 x 1-1/2 x 7/32 inch

2шт.

8

814-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 8.8

2шт.

9

L129148

WASHER

flat, special

4шт.

10

L129145

HITCH DAMPER

MOUNT engine, set of two, L129891 engine, Serial Range: -JAK0026022

2шт.

10a

114360A1

HITCH DAMPER

MOUNT engine, set of two, 104048A1 engine, Start Serial: JAK0026022

2шт.

11

L129153

LARGE PLATE

PLATE, LARGE engine mount

1шт.

12

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, hardened 13/16 x 1-1/2 x 7/32 inch

2шт.

13

131-1400

LOCK NUT,Jam, 3/4"-16

Heavy hex, self-locking

2шт.

14

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

2шт.

15

832-41320

NUT,M20 x 2.5, Cl 10

hex, self-locking, 20 mm - 2.5, class 10.9

2шт.

16

614-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

Bolt, Hex, M16 x 25, 8.8, Full Thd

4шт.

17

426-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

BOLT hex, 3/8 NC x 4 inch, grade 8

6шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

19

L129967

FAN

pusher

1шт.

For a puller (suction) fan, the dealer must make a special purchase from the Fargo plant. The puller fan is used on a CM11 emission-controlled engine. Use 140978A1 puller fan for non-emission-controlled CM11 engine.

1шт.

20

L128584

SPACER

fan

1шт.

21

L128677

HOSE,15.9mm ID x 1230mm L

Breather, Earlier Production Hoses Were 1650 mm

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, retaining

2шт.

23

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

If Used

1шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), If used

1шт.

25

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Ref 21 hose to rear frame, if used

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), If used

1шт.

27

231-1446

NUT,3/8" - 16, Gr 5

If used

1шт.

28

L113178

PLUG

BUSHING reducer

1шт.

29

32-1416

COTTER PIN,7/32" x 1"

1шт.

30

214389

PLUG,3/4" - 16 ORB

Includes Ref. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.
