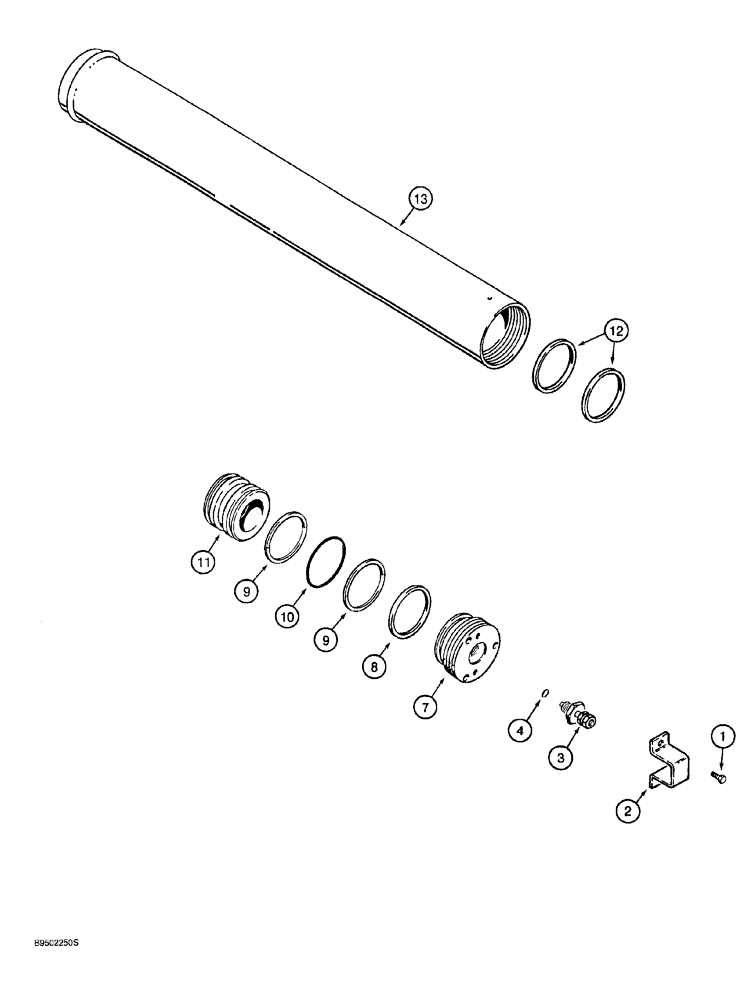

Запчасти Case 921 (8-106) - ACCUMULATOR ASSEMBLY, RIDE CONTROL (08) - HYDRAULICS

130354A1

ACCUMULATOR

ASSY., ride control, 4 inch diameter, see Figure 8-098 for mounting, Includes: Ref. 1 - 13

1шт.

1

S301367

SCREW

special, bracket

2шт.

2

S301366

SUPPORT

BRACKET protection, valve

1шт.

3

179066A1

VALVE

gas, Includes: Ref. 4

1шт.

4

1978158C1

O-RING

O-RING valve

1шт.

Part of kit P/N 1341919C1

1шт.

7

179065A1

CAP

GLAND accumulator, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

RING seal, gland

1шт.

Part of kit P/N 1341919C1

1шт.

9

NSS

NOT SOLD SEPARAT

RING backup, piston O-ring

2шт.

Part of kit P/N 1341919C1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of kit P/N 1341919C1

1шт.

11

S301364

PISTON

accumulator

1шт.

12

S301365

RING

wear, teflon, piston

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE accumulator

1шт.

1341919C1

SEAL KIT

seal, Includes: Ref. 4, 8 - 10

1шт.
