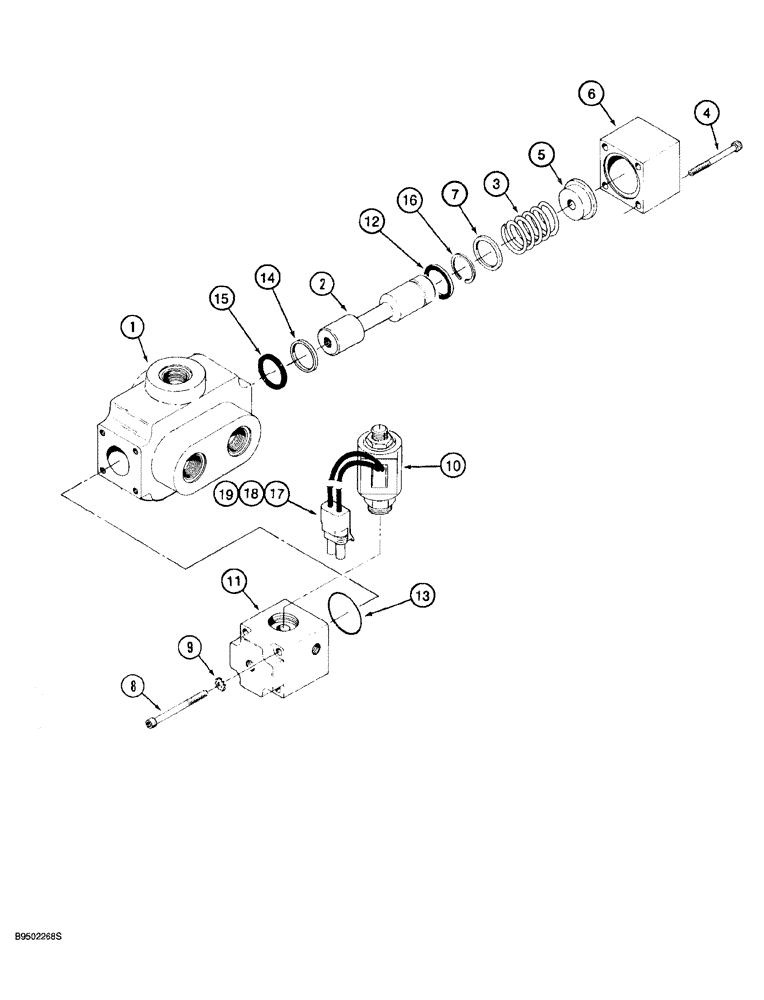

Запчасти Case 921 (8-102) - RIDE CONTROL MASTER DIRECTIONAL VALVE ASSEMBLY (08) - HYDRAULICS

107866A1

VALVE

ASSY., master directional, with electrical connector, ride control, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve, order 107866A1

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve, order 107866A1

1шт.

3

33-1165T1

COMPRESSION SPRING

1шт.

4

33-1168T1

HEX SOC SCREW

hex socket, special, 1/4 NC x 2 inch, grade 8

4шт.

5

33-1171T1

SPACER

spring

1шт.

6

33-1170T1

CAP

End

1шт.

7

33-1164T1

WASHER

spool

1шт.

8

33-1167T1

HEX SOC SCREW

socket head, special, 1/4 NC x 2-1/2 inch, grade 8

4шт.

9

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

10

122965A1

SOLENOID

24 volt

1шт.

11

122971A1

VALVE BODY

HOUSING solenoid

1шт.

12

R24866

RING

SEAL quad

1шт.

13

189344A1

O-RING

housing, solenoid end

1шт.

14

189345A1

SEAL

teflon

1шт.

15

189346A1

O-RING

spool

1шт.

16

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

1шт.

17

195842A1

SEAL

cable, not shown

2шт.

18

190256A1

TERMINAL CONNECTOR

terminal, not shown

2шт.

19

190258A1

BODY

connector, not shown

1шт.
