(8-100) - RIDE CONTROL HYDRAULIC CIRCUIT, MASTER AND DIRECTIONAL VALVES TO LIFT TUBES

Запчасти Case 921 (8-100) - RIDE CONTROL HYDRAULIC CIRCUIT, MASTER AND DIRECTIONAL VALVES TO LIFT TUBES (08) - HYDRAULICS

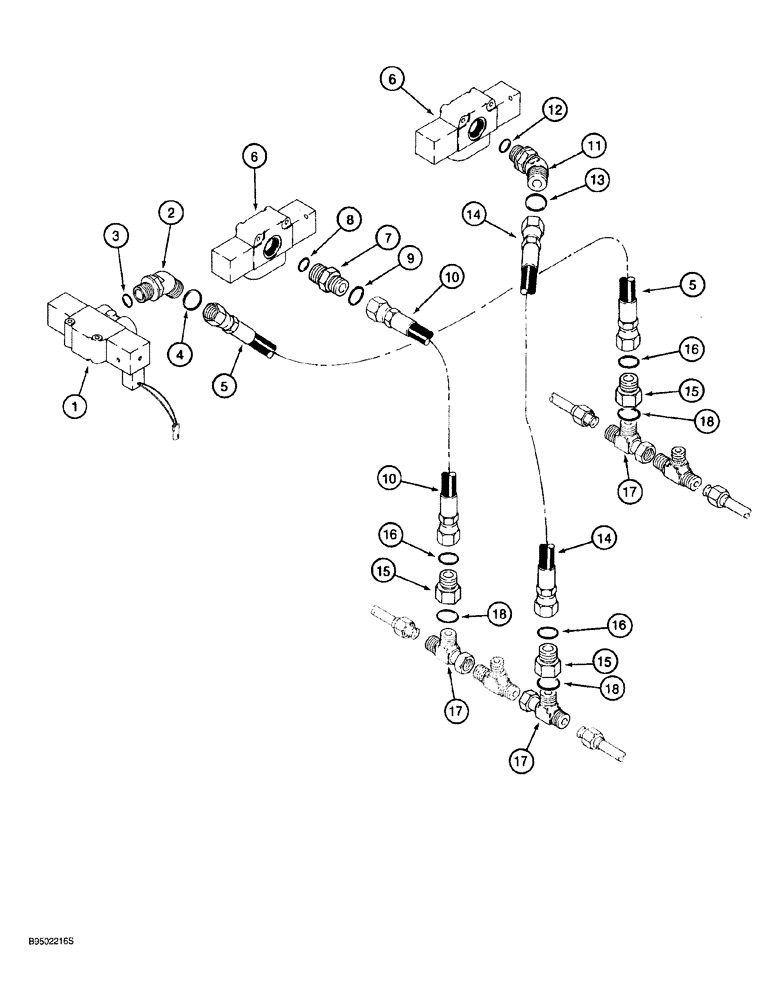

Схема запчастей Case 921 - (8-100) - RIDE CONTROL HYDRAULIC CIRCUIT, MASTER AND DIRECTIONAL VALVES TO LIFT TUBES (08) - HYDRAULICS
2
6
16
7
15
14
9
17
17
3
10
13
18
1
5
11
18
15
14
15
16
16
18
8
10
5
12
4
6
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

107866A1

VALVE

ASSY., master directional, with electrical connector, see Figure 8-102

1шт.

2

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

45°, 1-7/1 6-12 face seal x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 3, 4

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

5

131329A1

HOSE ASSY.

25-9/16 inch (648 mm) long, to left-hand rod end cylinder tube

1шт.

See Figure 8-046 for lift tubes used on models with ride control.

1шт.

6

106488A1

VALVE

ASSY., directional control, see Figure 8-104

2шт.

7

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - straight, Rear directional valve, Incl Ref 8, 9

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

10

131329A1

HOSE ASSY.

25-9/16 inch (648 mm) long, rear directional valve to right hand closed end cylinder tube

1шт.

See Figure 8-046 for lift tubes used on models with ride control.

1шт.

11

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

45°, 1-7/16-12 face seal x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 12, 13

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

14

131326A1

HOSE ASSY.

27-1/4 inch (692 mm) long, front directional valve to left hand closed end cylinder tube

1шт.

See Figure 8-046 for lift tubes used on models with ride control.

1шт.

15

201-150

REDUCER,1 11/16"-12 Male x 2"-12 Fem, ORFS

reducing, 1-11/16-12 face seal x 2-12 inch female face, Includes: Ref. 16

3шт.

16

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

17

201-437

TEE,2"-12 ORFS x 2"-12 Sw Run

2-12 inch face branch x face x swivel face, Includes: Ref. 18

3шт.

See Figure 8-046 for lift tubes used on models with ride control.

1шт.

18

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.
