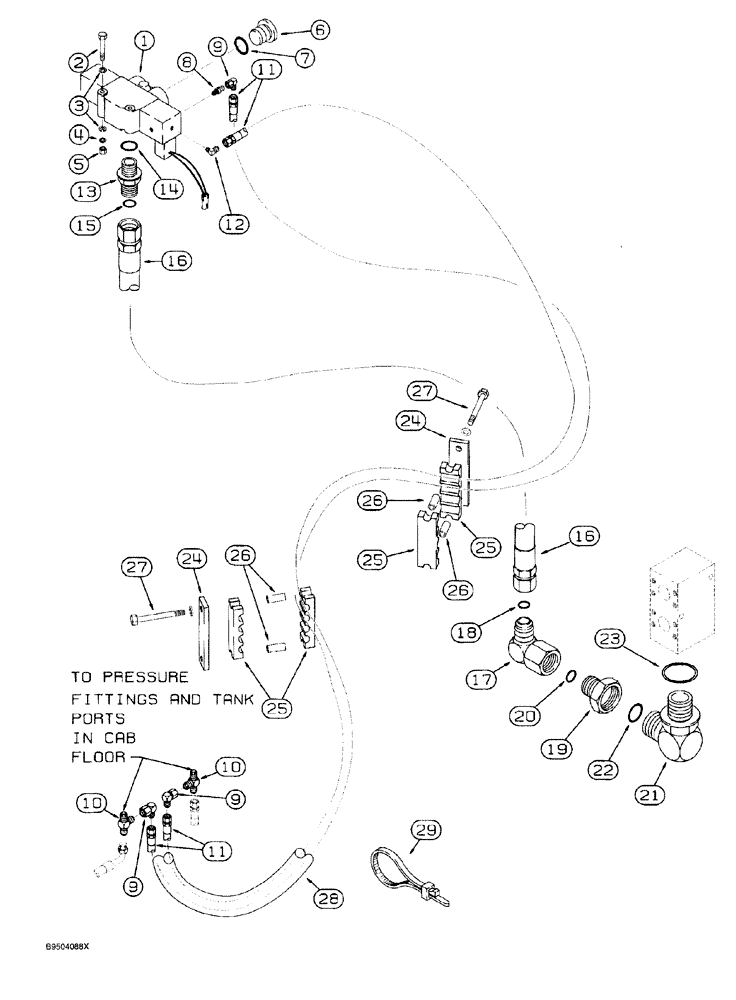

Запчасти Case 921 (8-096) - RIDE CONTROL HYDRAULIC CIRCUIT, MASTER VALVE TO CAB AND RETURN MANIFOLD (08) - HYDRAULICS

1

107866A1

VALVE

ASSY., master directional, with electrical connector, see Figure 8-102

1шт.

2

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter, Straight

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

10шт.

11

L129590

HOSE ASSY.

114-3/16 inch (2900 mm) long, master, Serial Range: valve-cab

2шт.

12

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

90°, 9/16-18 flare x 1/8 inch PT

1шт.

13

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - straight, Incl Ref 14, 15

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss end

1шт.

16

131422A1

HOSE ASSY.

18 inch (457 mm) long, master valve to return manifold, see Figure 8-014, Ref. 4

1шт.

17

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

ELBOW, 90°, 1-7/16-12 face seal x swivel face seal, Includes: Ref. 18

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

201-118

REDUCER,1-7/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

reducing, 1-7/16-12 face seal x 1-11/16-12 inch female face, Includes: Ref. 20

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

21

201-369

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-7/8" - 12 Male ORB

90°, 1-11/16-12 face seal x 1-7/8-12 inch adj O-ring boss, Includes: Ref. 22, 23

1шт.

22

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face seal end

1шт.

23

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

Boss end

1шт.

24

L124270

LARGE PLATE

PLATE, LARGE mounting, ride control hydraulic hoses

2шт.

Ref. 24 - 29 are used only with two or four-spool valves. Hoses for three-spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

25

L124271

FIXING BRACKET

CLAMP rubber

4шт.

Ref. 24 - 29 are used only with two or four-spool valves. Hoses for three-spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

26

L126936

SPACER

34 mm long

4шт.

Ref. 24 - 29 are used only with two or four-spool valves. Hoses for three-spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

27

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch

4шт.

Ref. 24 - 29 are used only with two or four-spool valves. Hoses for three-spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

28

S120426

TUBE

GUARD hose protector

1шт.

Ref. 24 - 29 are used only with two or four-spool valves. Hoses for three-spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

Ref. 24 - 29 are used only with two or four-spool valves. Hoses for three-spool valves are mounted in clamps with standard hoses from the remote controller.

1шт.
