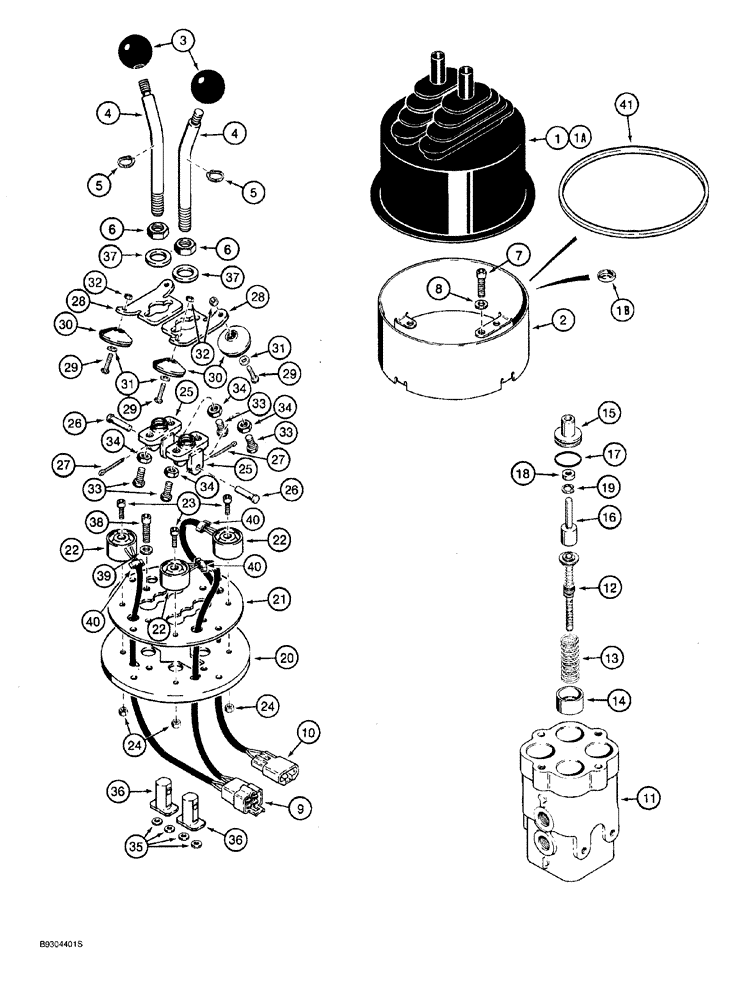

Запчасти Case 921 (8-092) - DUAL LEVER REMOTE CONTROL VALVE 107389A1, P.I.N. JAK0022795 AND AFTER (08) - HYDRAULICS

107389A1

VALVE

ASSY., remote, dual lever, stamped 107389A1, Includes: Ref. 1 - 41

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order the single lever remote control valve and component parts from the 921B Parts Catalog, Bur 8-9660.

1шт.

1

1971897C1

DUST CAP

BOOT, no longer available, order Ref. 1A and 1B

1шт.

1a

112951A1

DUST CAP

BOOT

1шт.

1b

112952A1

CUP WASHER

WASHER boot retaining

2шт.

2

1971890C1

CLAMP

COLLAR control valve

1шт.

3

1978187C1

BALL KNOB

control lever

2шт.

4

1971898C1

LEVER

control

2шт.

5

26593R1

SNAP RING,#50, Ext

control lever, if used #50, Ext

2шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

7

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT hex socket, 1/4 NC x 3/4 inch

2шт.

8

1978189C1

WASHER

flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

9

1978198C1

CONNECTION

magnetic coil, with male terminal

1шт.

10

1978225C1

CONNECTION

magnetic coil, with female terminal

1шт.

109620A1

VALVE

ASSY., remote control, Includes: Ref. 11 - 40

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

12

1971892C1

SPOOL

control valve

4шт.

13

1978191C1

SPRING

spool

4шт.

14

1978192C1

RACE

SLEEVE spool

4шт.

109627A1

PLUNGER ASSY.

control valve, Includes: Ref. 15 - 19

4шт.

15

1978207C1

GUIDE

valve, 7/8 inch long

1шт.

16

109839A1

PIN,6.32mm OD x 48.31mm L

Plunger - valve, 1-1/4 inch long stem

1шт.

17

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

18

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

19

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

20

1978196C1

LARGE PLATE

PLATE, LARGE plastic, lower

1шт.

21

1978208C1

LARGE PLATE

PLATE, LARGE metal, upper

1шт.

22

109713A1

ELEC. TERMINAL PIN

COIL magnetic

3шт.

23

461-3108

HEX SOC SCREW,#10 - 24 x 1/2"

BOLT hex socket, No. 10 NC x 1/2 inch

3шт.

24

225-14110

NUT,#10-24

3шт.

25

N13680

PIVOT

control valve

2шт.

26

109716A1

PIN,6.38mm OD x 25.15mm L

2шт.

27

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

2шт.

28

1978210C1

BRACKET

PLATE control valve

2шт.

29

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

machine, No. 8 NC x 1/2 inch

3шт.

30

121563A1

TAPPET

DISC armature, electromagnet

3шт.

31

111248A1

SEALING WASHER

special, disc alignment, Replaces: 1978224C1

3шт.

32

225-13108

NUT,#8-32

3шт.

33

N13679

BOLT

special

4шт.

34

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

4шт.

35

1978211C1

SHIM

control valve

1шт.

36

N13681

POST

control valve

2шт.

37

1978212C1

SPACER

WASHER flat, special, 43/64 x 1-5/64 x 1/8 inch

2шт.

38

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT hex socket, 1/4 NC x 3/4 inch

2шт.

39

1978189C1

WASHER

flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

40

109752A1

MOUNTING CLIP

magnetic coil

3шт.

41

109625A1

GROMMET

TRIM 17-1/2 inch long, valve collar, used as a grommet

1шт.
