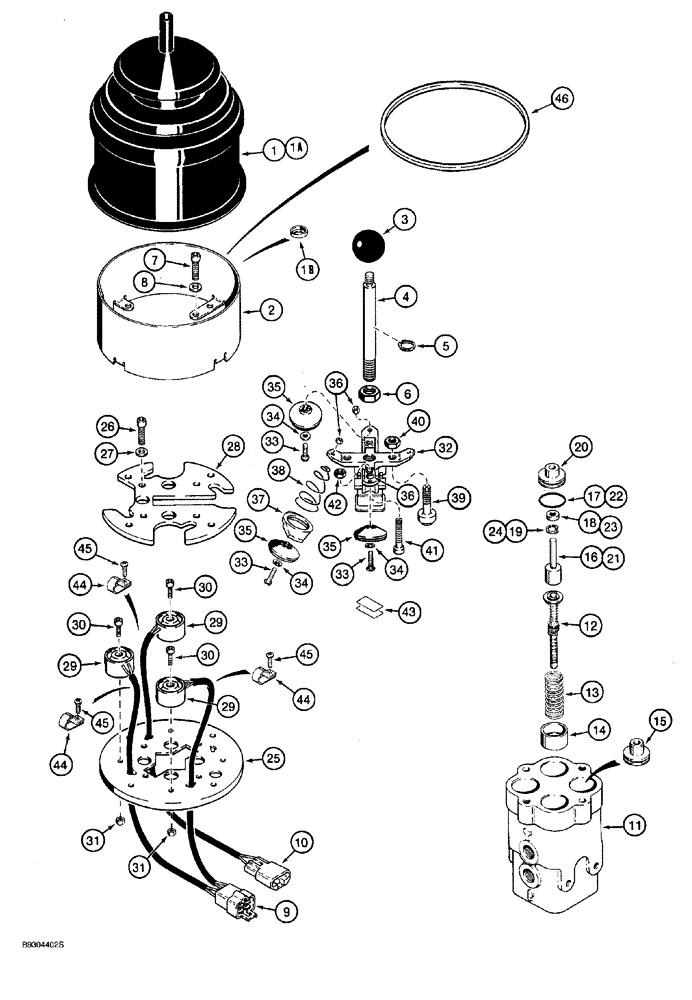

Запчасти Case 921 (8-086) - SINGLE LEVER REMOTE CONTROL VALVE 107390A1, P.I.N. JAK0022795 AND AFTER (08) - HYDRAULICS

107390A1

VALVE

ASSY., remote, single lever, stamped 107390A1, Includes: Ref. 1 - 46

1шт.

1

1341816C1

DUST CAP

BOOT, no longer available, order Ref. 1A and 1B

1шт.

1a

112950A1

DUST CAP

BOOT

1шт.

1b

112952A1

CUP WASHER

WASHER boot retaining

2шт.

2

1971890C1

CLAMP

COLLAR control valve

1шт.

3

1978187C1

BALL KNOB

control lever

1шт.

4

1971888C1

LEVER

control

1шт.

5

26593R1

SNAP RING,#50, Ext

control lever, if used #50, Ext

1шт.

6

429-108

NUT,1/2"-13, G8

hex, 1/2 inch NC, grade 8

1шт.

7

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT hex socket, 1/4 NC x 3/4 inch

2шт.

8

1978189C1

WASHER

flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

9

1978198C1

CONNECTION

magnetic coil, with male terminal

1шт.

10

1978225C1

CONNECTION

magnetic coil, with female terminal

1шт.

109624A1

VALVE

ASSY., remote control, Includes: Ref. 11 - 45

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

1971884C1

SPOOL

ASSY., remote control valve, Includes: Ref. 12 - 14

4шт.

12

NSS

NOT SOLD SEPARAT

SPOOL remote control valve

1шт.

13

1978191C1

SPRING

spool

1шт.

14

1978192C1

RACE

SLEEVE spool

1шт.

1971896C1

PLUNGER

ASSY., control valve, Includes: Ref. 15 - 19

1шт.

15

1978193C1

GUIDE

valve, 5/8 inch long

1шт.

16

109765A1

PLUNGER

valve, 1 inch long stem

1шт.

17

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

18

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

19

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

109753A1

PLUNGER

ASSY., control valve, Includes: Ref. 20 - 24

3шт.

20

1978195C1

GUIDE

valve, 1/2 inch long

1шт.

21

109765A1

PLUNGER

valve, 1 inch long stem

1шт.

22

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

23

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

24

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

25

1978196C1

LARGE PLATE

PLATE, LARGE plastic, lower

1шт.

26

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT hex socket, 1/4 NC x 3/4 inch

2шт.

27

1978189C1

WASHER

flat, special, 17/64 x 1/2 x 1/32 inch

2шт.

28

1978197C1

LARGE PLATE

PLATE, LARGE metal, upper

1шт.

29

109713A1

ELEC. TERMINAL PIN

COIL magnetic

3шт.

30

461-3108

HEX SOC SCREW,#10 - 24 x 1/2"

BOLT hex socket, No. 10 NC x 1/2 inch

3шт.

31

225-14110

NUT,#10-24

3шт.

1971895C1

CAM

ARMATURE ASSY., control valve, Includes: Ref. 32 - 42

1шт.

32

1978199C1

CAM

PIVOT armature

1шт.

33

182-87

SCREW,Slotted Pan Hd, #8-32 X 5/8"

machine, pan head slotted, No. 8 x 5/8 inch

3шт.

34

111248A1

SEALING WASHER

special, disc alignment, Replaces: 1978224C1

3шт.

35

121563A1

TAPPET

DISC armature, electromagnet

3шт.

36

225-13108

NUT,#8-32

3шт.

37

1978201C1

EXTENSION

COLLAR armature

1шт.

38

1978202C1

SPRING

armature

1шт.

39

1978203C1

SCREW

ACTUATOR spool, large

2шт.

40

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

2шт.

41

1978204C1

SCREW

ACTUATOR spool, small

2шт.

42

425-104

NUT,1/4"-20, Cl 5

2шт.

43

1978205C1

SHIM

7/16 OD x 15/64 ID x 0.01 inch thick

1шт.

44

109769A1

CLAMP

P-type

3шт.

45

440-1104

SCREW,Cross Pan Hd, #10-24 x 1/4"

machine, pan Phillips, No. 10 NC x 1/4 inch

3шт.

46

109625A1

GROMMET

TRIM 17-1/2 inch long, control valve collar, used as a grommet

1шт.
