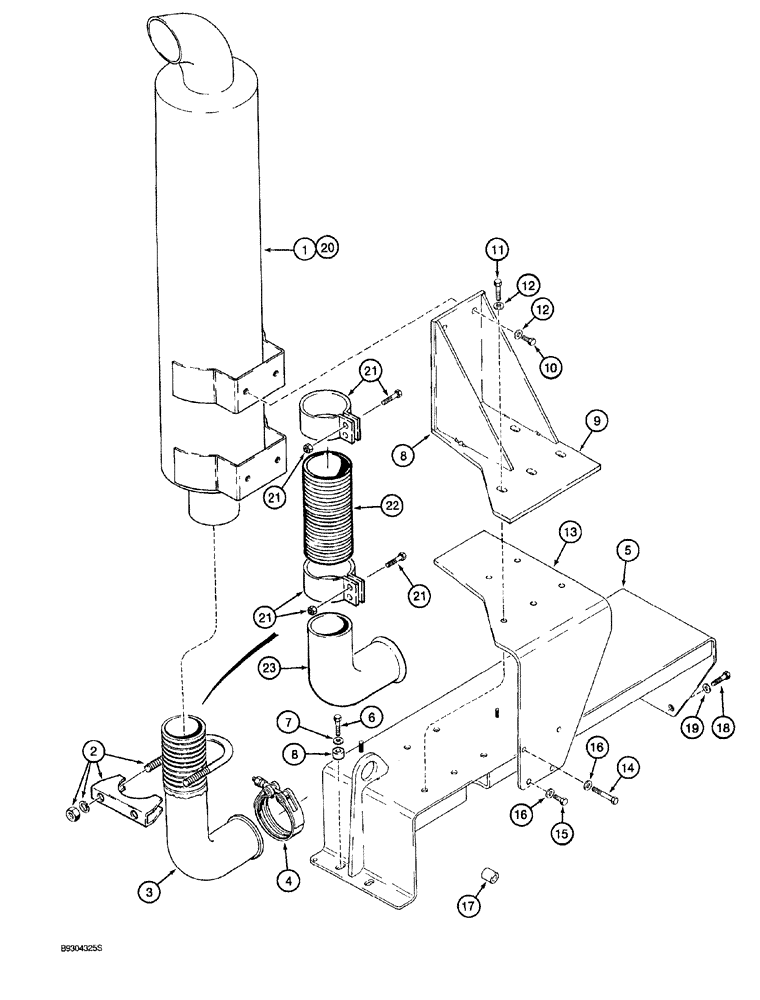

Запчасти Case 921 (2-009A) - MUFFLER AND EXHAUST SYSTEM, P.I.N. JAK0026022 AND AFTER (02) - ENGINE

1

105886A1

MUFFLER

engine exhaust, no longer available, order Ref. 20 muffler and Ref. 21 - 23

1шт.

2

A162896

CLAMP

muffler, includes hardware, muffler and turbocharger elbow, if used

2шт.

3

L129117

ELBOW

turbocharger to muffler, if used

1шт.

4

L127995

CLAMP

elbow at turbocharger, Replaces: L127995

1шт.

5

102155A1

SUPPORT

BRACKET, Serial Range: muffler-engine

1шт.

6

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

107391A1

SPACER

muffler to engine bracket

2шт.

9

104097A1

SUPPORT

BRACKET muffler mounting

1шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

11

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

5шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

13

104096A1

SUPPORT

muffler mounting bracket

1шт.

14

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

4шт.

17

90-7181T1

SPACER

muffler bracket

2шт.

18

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Full threads

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

20

183822A1

MUFFLER

engine exhaust

1шт.

21

90-7635T1

CLAMP

sleeve-type, includes hardware, muffler and turbocharger elbow

2шт.

22

90-5858T1

TUBE,4" ID x 4.25" OD x 9" L

flex, muffler to elbow

1шт.

23

109037A1

ELBOW

turbocharger

1шт.
