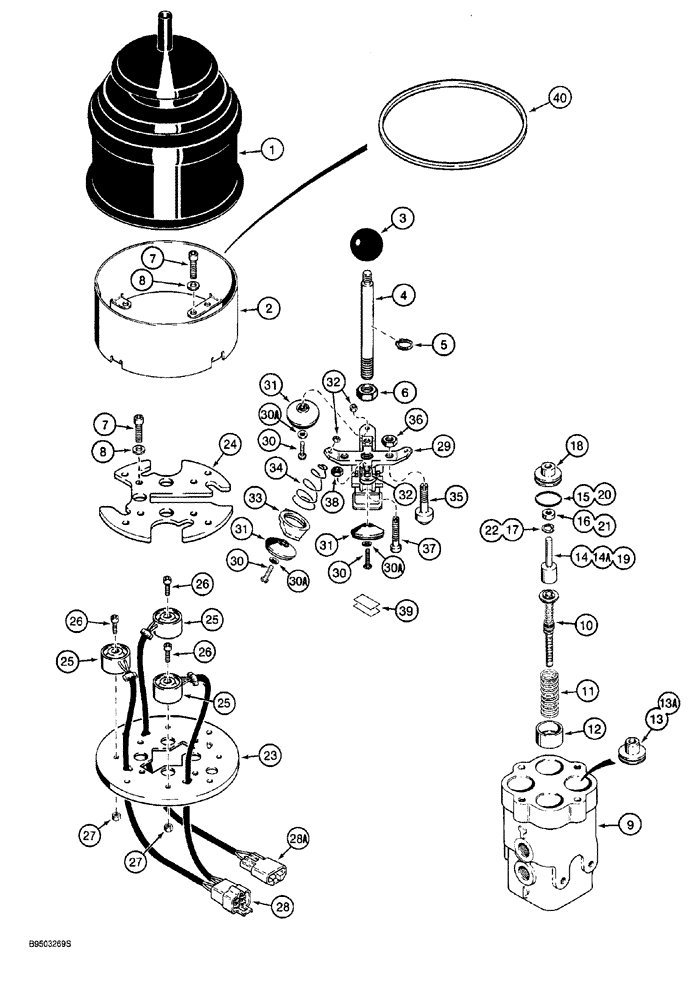

Запчасти Case 921 (8-082) - SINGLE LEVER REMOTE CONTROL VALVE L116443, PRIOR TO P.I.N. JAK0022795 (08) - HYDRAULICS

L116443

VALVE

ASSY., remote, single lever, stamped L116443, no longer available, order 107390A1 shown on Figure 8-086, Includes: Ref. 1 - 40

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order the single lever remote control valve and component parts from the 921B Parts Catalog, Bur 8-9660.

1шт.

1

1341816C1

DUST CAP

BOOT no longer available, order Ref. 1A and 1B on Figure 8-086

1шт.

2

1971890C1

CLAMP

COLLAR control valve

1шт.

3

1978187C1

BALL KNOB

control lever

1шт.

4

1971888C1

LEVER

control

1шт.

5

26593R1

SNAP RING,#50, Ext

control lever #50, Ext

1шт.

6

429-108

NUT,1/2"-13, G8

hex, 1/2 inch NC, grade 8

1шт.

7

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT hex socket, 1/4 NC x 3/4 inch

4шт.

8

1978189C1

WASHER

flat, special, 17/64 x 1/2 x 1/32 inch

4шт.

1971883C1

VALVE

ASSY., remote control, Includes: Ref. 9 - 40, no longer available, order 109624A1 shown on Figure 8-086

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING control valve

1шт.

1971884C1

SPOOL

ASSY., remote control valve, Includes: Ref. 10 - 12

4шт.

10

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

11

1978191C1

SPRING

spool

1шт.

12

1978192C1

RACE

SLEEVE spool

1шт.

1971893C1

PLUNGER

ASSY., control valve, no longer available, order 109627A1

1шт.

109627A1

PLUNGER ASSY.

control valve, Includes: Ref. 13 - 17

1шт.

13

1978193C1

GUIDE

valve, 5/8 inch long, used in 1971893C1 plunger assembly

1шт.

13a

1978207C1

GUIDE

valve, 7/8 inch long, used in 109627A1 plunger assembly

1шт.

14

109765A1

PLUNGER

valve, 1 inch long stem, Replaces: 1978194C1, used in 1971893C1 assembly

1шт.

14a

109839A1

PIN,6.32mm OD x 48.31mm L

Plunger - valve, 1-1/4 inch long stem, used in 109627A1 plunger assembly

1шт.

15

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

16

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

17

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

109753A1

PLUNGER

ASSY., control valve, Includes: Ref. 18 - 22

3шт.

18

1978195C1

GUIDE

valve, 1/2 inch long

1шт.

19

109765A1

PLUNGER

valve, 1 inch long stem

1шт.

20

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

21

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

U-cup, plunger

1шт.

22

100-2150

SNAP RING,0.50", Int, #50

Plunger

1шт.

23

1978196C1

LARGE PLATE

PLATE, LARGE plastic, lower

1шт.

24

1978197C1

LARGE PLATE

PLATE, LARGE metal, upper

1шт.

25

1971887C1

SOLENOID SWITCH

COIL magnetic, no longer available, order Ref. 29, 35 on Figure 8-086

3шт.

26

461-3108

HEX SOC SCREW,#10 - 24 x 1/2"

BOLT hex socket, No. 10 NC x 1/2 inch

3шт.

27

225-14110

NUT,#10-24

3шт.

28

1978198C1

CONNECTION

magnetic coil, with male terminal

1шт.

28a

1978225C1

CONNECTION

magnetic coil, with female terminal

1шт.

1971895C1

CAM

ARMATURE ASSY., control valve, Includes: Ref. 29 - 38

1шт.

29

1978199C1

CAM

PIVOT armature

1шт.

30

182-87

SCREW,Slotted Pan Hd, #8-32 X 5/8"

machine, pan head slotted, No. 8 x 5/8 inch

3шт.

30a

111248A1

SEALING WASHER

special, disc alignment, Replaces: 1978224C1

3шт.

31

121563A1

TAPPET

DISC armature, electromagnet, Replaces: 1978200C1

3шт.

32

225-13108

NUT,#8-32

3шт.

33

1978201C1

EXTENSION

COLLAR armature

1шт.

34

1978202C1

SPRING

armature

1шт.

35

1978203C1

SCREW

ACTUATOR spool, large

2шт.

36

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

2шт.

37

1978204C1

SCREW

ACTUATOR spool, small

2шт.

38

425-104

NUT,1/4"-20, Cl 5

2шт.

39

1978205C1

SHIM

7/16 OD x 15/64 ID x 0.01 inch thick

1шт.

40

109625A1

GROMMET

TRIM 17-1/2 inch long, valve collar, used as a grommet

1шт.
