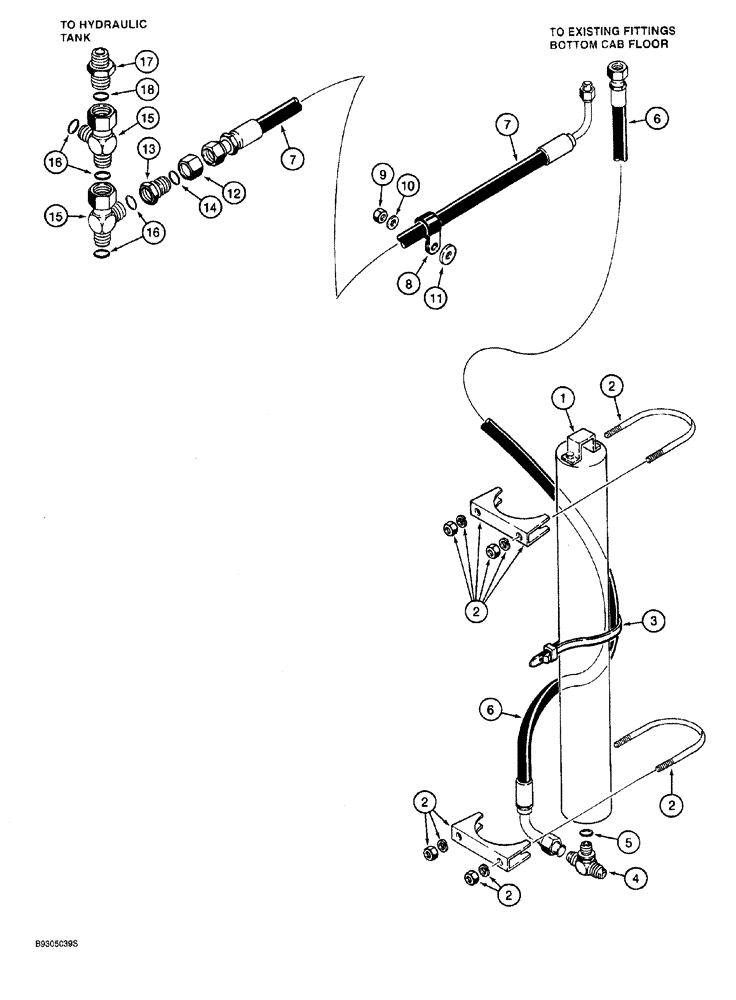

Запчасти Case 921 (8-080) - REMOTE LOADER CONTROL CIRCUIT, ACCUMULATOR TO REMOTE LOADER CONTROLS & RETURN TO HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

L118361

ACCUMULATOR

ASSY., hydraulic, see Figure 8-108

1шт.

2

A13240

CLAMP,2-5/8" ID

two-piece, includes hardware

2шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, retaining

1шт.

4

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

TEE 9/16-18 adj O-ring branch x flare x 3/4-16 inch flare, Includes: Ref. 5

1шт.

6

101636A1

HOSE ASSY.

53-1/2 inch (1358 mm) long, Serial Range: accumulator-cab

1шт.

7

108444A1

HOSE ASSY.

47-1/4 inch (1180 mm) long, cab to hydraulic reservoir

1шт.

8

T50104

CLAMP

P-type, attaches to inner right-hand cab post

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

1шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

12

203-903

TUBE NUT,1"-14 ORFS

hex, 1-14 inch face seal

1шт.

13

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

ADAPTER reducing, 13/16-16 face seal x 1-14 inch female face, Includes: Ref. 14

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1-14 inch face seal branch x face seal x swivel face seal, Includes: Ref. 16

2шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

17

L129304

FITTING

ADAPTER straight, special, Includes: Ref. 18

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
