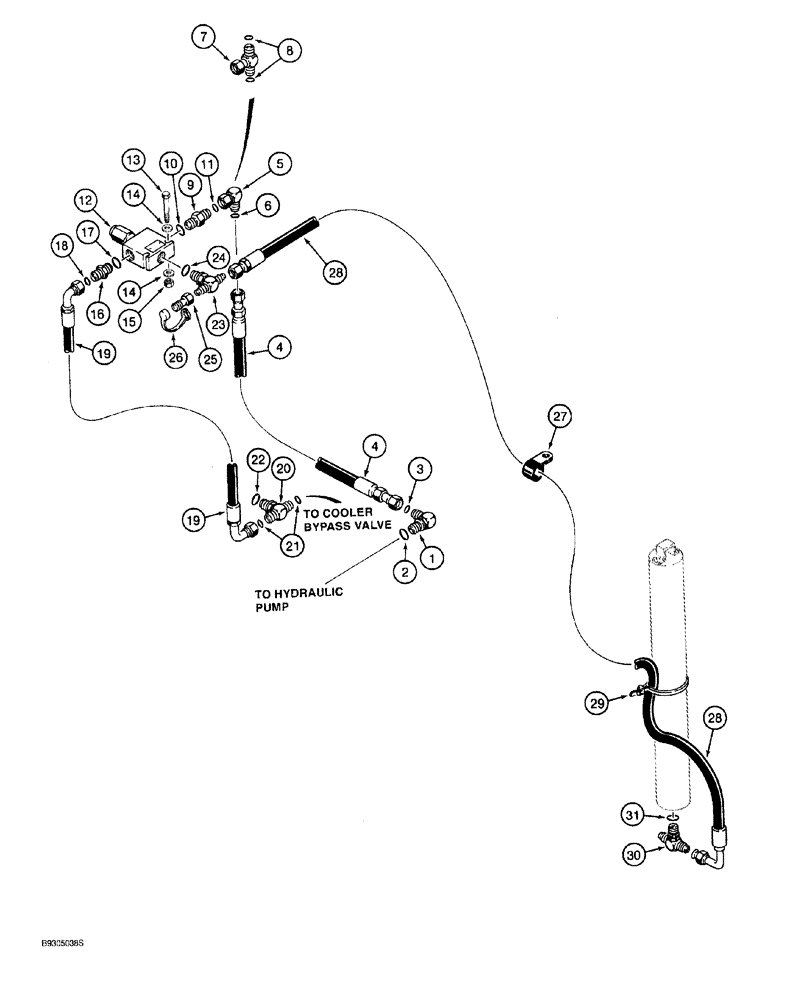

Запчасти Case 921 (8-078) - REMOTE LOADER CONTROL CIRCUIT, SUPPLY TO ACCUMULATER, P.I.N. JAK0026022 AND AFTER (08) - HYDRAULICS

1

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 2, 3

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

4

107818A1

HOSE ASSY.

22 inch (560 mm) long, hydraulic equipment pump to pressure reducing valve

1шт.

5

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Used on models with standard steering, Incl Ref 6

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

11/16-16 inch swivel face seal branch x face seal x face seal, use on models with auxiliary steering, Includes: Ref. 8

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

107699A1

VALVE

check, Includes: Ref. 10, 11

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

12

L101927

VALVE

ASSY., pressure reducing, see Figure 8-110

1шт.

13

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

3шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

15

231-1444

NUT,1/4"-20, GB

2шт.

16

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 17, 18

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

19

L128455

HOSE ASSY.

22 inch (560 mm) long, pressure reducing valve to cooler bypass valve

1шт.

20

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

9/16-18 adj O-ring boss branch x 11/16-16 inch face seal x face seal, Includes: Ref. 21, 22

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

2шт.

23

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

3/4-16 adj O-ring branch x 9/16-18 inch flare x flare, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

101792A1

COUPLING

quick disconnect

1шт.

26

H434163

DUST CAP

1шт.

27

R21385

CLAMP

P-type, 15/16 inch ID, uses flow control valve mounting hardware, shown on Figure 5-004

1шт.

28

107819A1

HOSE ASSY.

67 inch (1700 mm) long, pressure reducing, Serial Range: valve-accumulator

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, retaining, hose to accumulator

1шт.

30

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

TEE 9/16-18 adj O-ring branch x flare x 3/4-16 inch flare, Includes: Ref. 31

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
