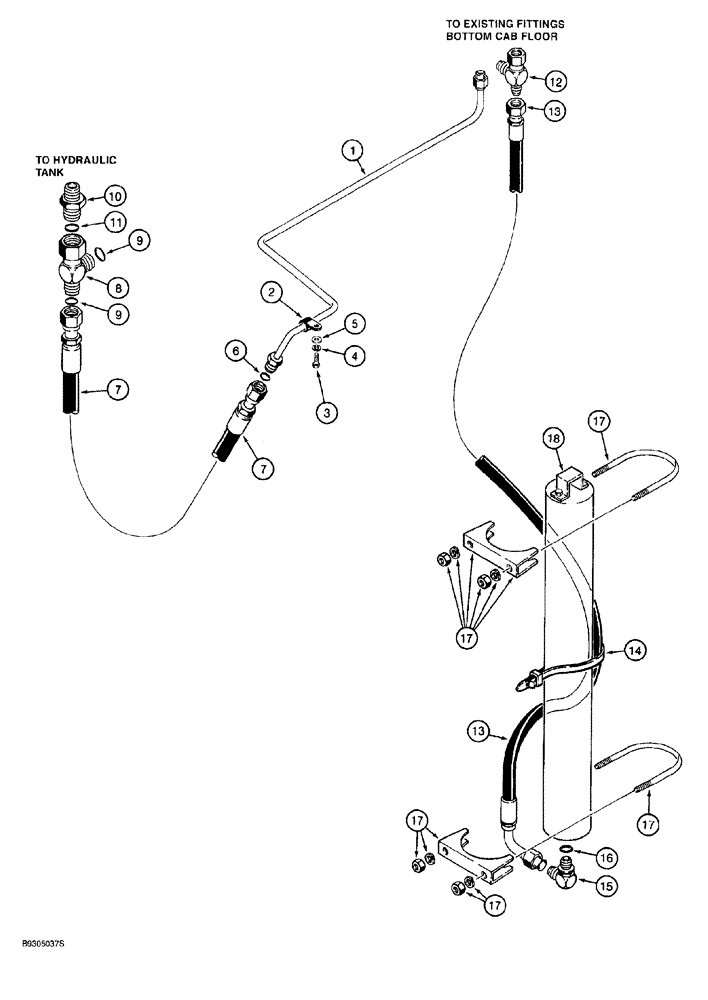

Запчасти Case 921 (8-076) - REMOTE LOADER CONTROL CIR., RETURN TO HYD. RES. & SUPPLY TO ACCUMULATOR, PRIOR TO P.I.N. JAK0026022 (08) - HYDRAULICS

1

L128416

TUBE,9.52 mm OD

hose separator to hose at hydraulic reservoir

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

L129772

HOSE ASSY.

37-7/16 inch (950 mm) long, lube to hydraulic reservoir

1шт.

8

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1-14 inch face seal branch x face seal x swivel face seal, Includes: Ref. 9

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

L129304

FITTING

ADAPTER straight, special, Includes: Ref. 11

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

12

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

13

101636A1

HOSE ASSY.

53-1/2 inch (1358 mm) long, Serial Range: accumulator-cab

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, retaining

1шт.

15

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°, 3/4-16 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

A13240

CLAMP,2-5/8" ID

two-piece, includes hardware

2шт.

18

L118361

ACCUMULATOR

ASSY., hydraulic, see Figure 8-108

1шт.
