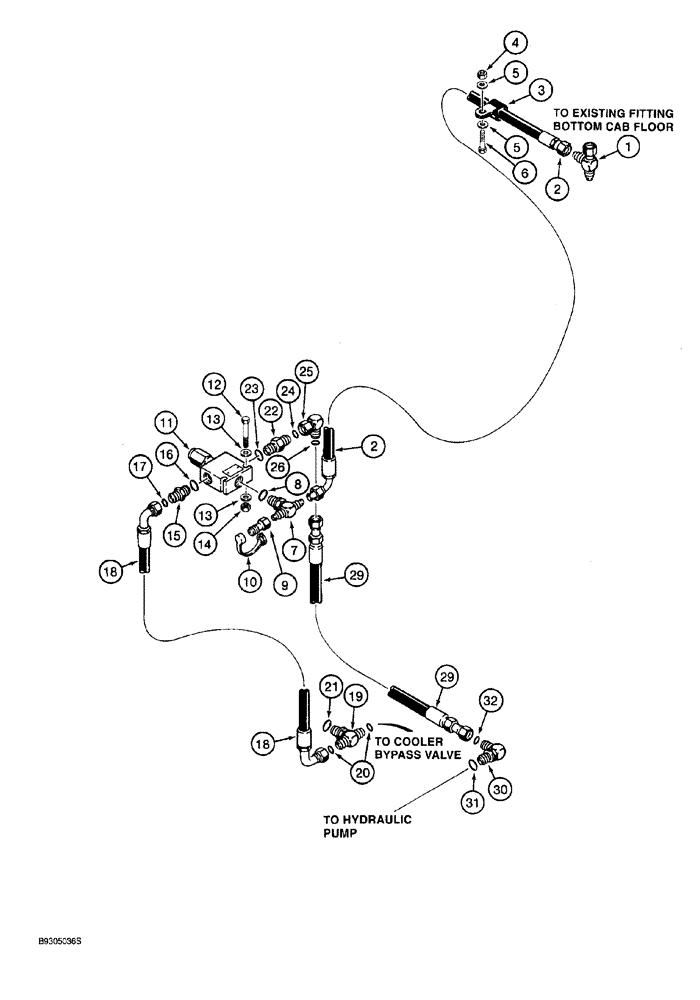

Запчасти Case 921 (8-074) - REMOTE LOADER CONTROL CIRCUIT, SUPPLY TO REMOTE LOADER CONTROLS, PRIOR TO P.I.N. JAK0026022 (08) - HYDRAULICS

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

2

101635A1

HOSE ASSY.

44 inch (1118 mm) long, pressure reducing, Serial Range: valve-cab

1шт.

3

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

1шт.

4

231-1446

NUT,3/8" - 16, Gr 5

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

7

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

3/4-16 adj O-ring branch x 9/16-18 inch flare x flare, Includes: Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

101792A1

COUPLING

quick disconnect

1шт.

10

H434163

DUST CAP

1шт.

11

L101927

VALVE

ASSY., pressure reducing, see Figure 8-110

1шт.

12

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

4шт.

14

231-1444

NUT,1/4"-20, GB

2шт.

15

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 16, 17

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

18

L128455

HOSE ASSY.

22 inch (560 mm) long, pressure reducing valve to cooler bypass valve

1шт.

19

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

9/16-18 adj O-ring boss branch x 11/16-16 inch face seal x face seal, Includes: Ref. 20, 21

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

2шт.

22

107699A1

VALVE

check, Includes: Ref. 23, 24

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

25

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl Ref 26

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

L128710

HOSE ASSY.

25-5/8 inch (650 mm) long, pressure reducing valve to hydraulic equipment pump

1шт.

30

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 31, 32

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.
