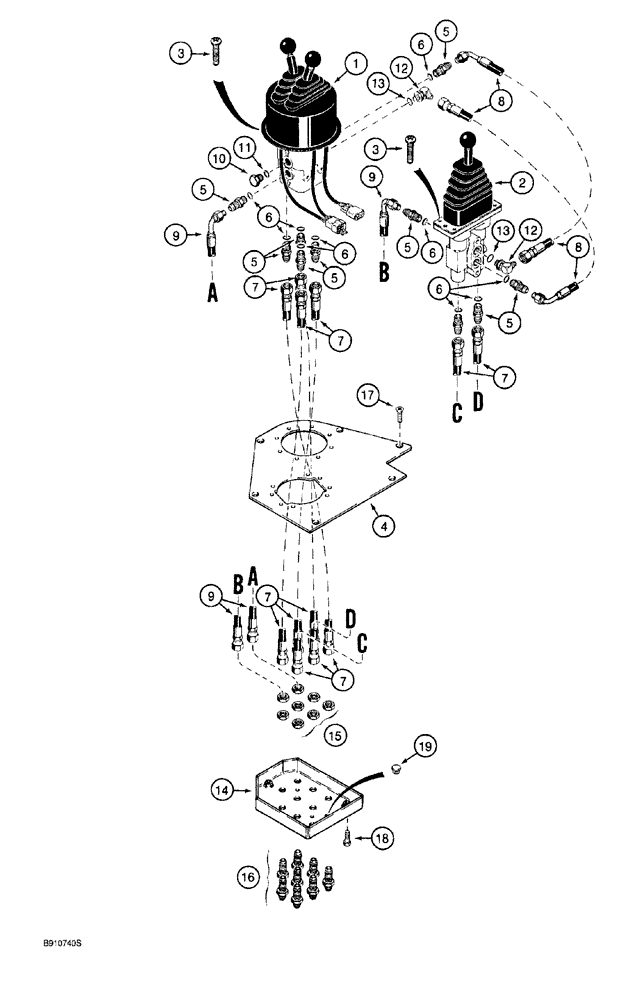

Запчасти Case 921 (8-066) - REMOTE LOADER CONTROL CIRCUIT, THREE LEVERS WITH THREE-SPOOL VALVE (08) - HYDRAULICS

1

L118040

VALVE

ASSY., remote, dual lever, see Figure 8-090 , no longer available, order 107389A1 for models with cabs or canopies prior to P.I.N. JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order the dual lever remote control assembly and component parts from the 921B Parts Catalog, Bur 8-9660.

1шт.

1

107389A1

VALVE

ASSY., remote, dual lever, see Figure 8-092, used on models with cabs or canopies prior to P.I.N. JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order the dual lever remote control assembly and component parts from the 921B Parts Catalog, Bur 8-9660.

1шт.

2

L123917

VALVE

ASSY., remote, single lever, see Figure 8-094

1шт.

3

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

8шт.

4

1339947C1

LARGE PLATE

PLATE, LARGE mounting, remote controls

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 6

10шт.

7

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

16-1/2 inch (419 mm) long, remote controls to loader control valve

6шт.

8

1339963C1

HOSE ASSY.

12 inch (305 mm) long, auxiliary remote control to dual lever remote control

2шт.

9

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

19-7/8 inch (502 mm) long, adapter at remote controls to pressure reducing valve

2шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 11

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 13

2шт.

14

1339969C1

LARGE PLATE

PLATE, LARGE SEPARATOR hose, loader control

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

8шт.

16

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, 9/16-18 inch flare x bulkhead flare

8шт.

17

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

machine, flat Phillips, 1/4 NC x 3/4 inch

6шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

19

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

2шт.

20

1977320C3

DECAL

loader control, dual lever and auxiliary single lever remote control valves with three-spool valve, shown on Figure 9-080

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
