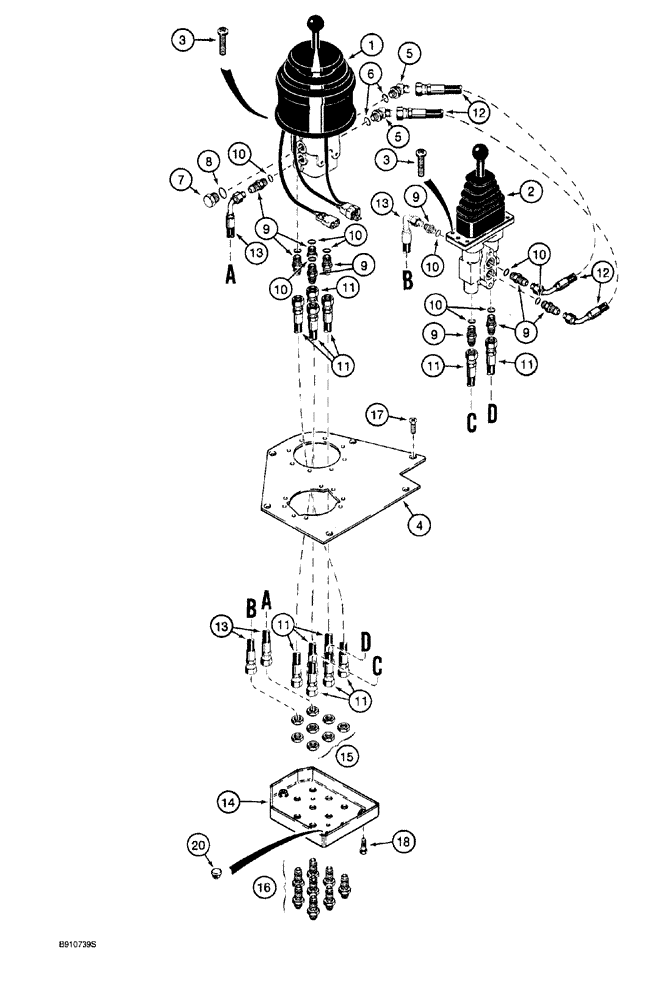

Запчасти Case 921 (8-064) - REMOTE LOADER CONTROL CIRCUIT, TWO LEVERS WITH THREE-SPOOL VALVE (08) - HYDRAULICS

1

L116443

VALVE

ASSY., remote, single lever, see Figure 8-082, no longer available, order 107390A1 for models with cabs or canopies prior to P.I.N. JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order the single lever remote control assembly and component parts from the 921B Parts Catalog, Bur 8-9660.

1шт.

1

107390A1

VALVE

ASSY., remote, single lever, see Figure 8-086, used on models with cabs or canopies prior to P.I.N. JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order the single lever remote control assembly and component parts from the 921B Parts Catalog, Bur 8-9660.

1шт.

2

L123917

VALVE

ASSY., remote, single lever, see Figure 8-094

1шт.

3

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

8шт.

4

1339947C1

LARGE PLATE

PLATE, LARGE mounting, remote control

1шт.

5

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45°, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 6

2шт.

7

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 8

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 10

10шт.

11

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

16-1/2 inch (419 mm) long, remote control to hose separator

6шт.

12

1339962C1

HOSE,9.53mm ID x 254mm L, SAE 100R1

10 inch (254 mm) long, auxiliary remote control to remote control

2шт.

13

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

19-7/8 inch (502 mm) long, remote control and auxiliary remote control to pressure reducing valve

2шт.

14

1339969C1

LARGE PLATE

PLATE, LARGE SEPARATOR hose, loader control

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

8шт.

16

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, 9/16-18 inch flare x bulkhead flare

8шт.

17

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

machine, flat Phillips, 1/4 NC x 3/4 inch

6шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

19

1977321C3

DECAL

loader control, single lever and auxiliary single lever remote control valves with three-spool valve, not shown, see Figure 9-080, Ref. 19

1шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
