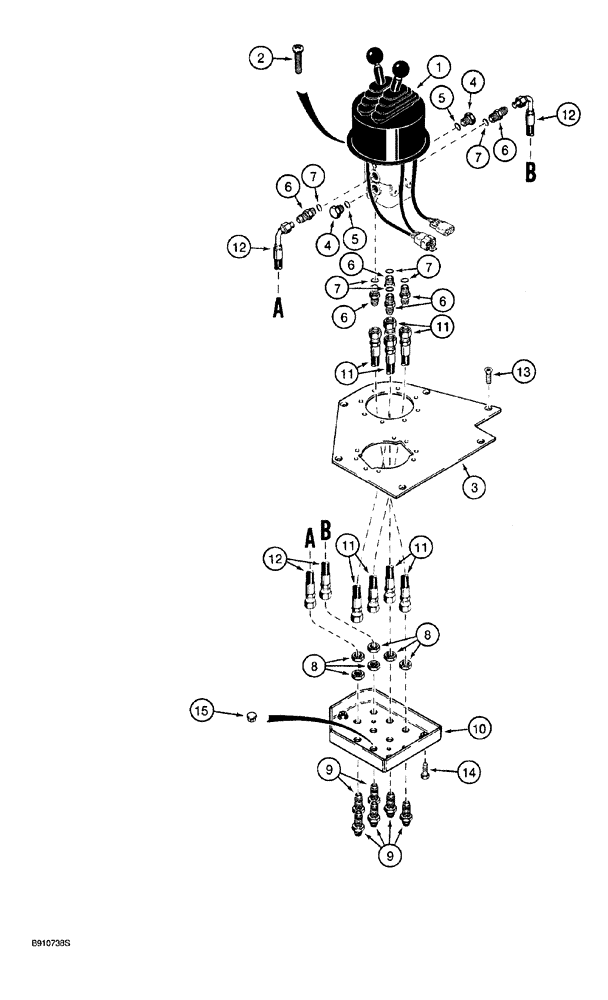

Запчасти Case 921 (8-060) - REMOTE LOADER CONTROL CIRCUIT, DUAL LEVER WITH TWO-SPOOL VALVE (08) - HYDRAULICS

1

L118040

VALVE

ASSY., remote, dual lever, see Figure 8-090, no longer available, order 107389A1 for models with cabs or canopies prior to P.I.N. JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order the dual lever remote control assembly and component parts from the 921B Parts Catalog, Bur 8-9660.

1шт.

1

107389A1

VALVE

ASSY., remote, dual lever, see Figure 8-092, used on models with cabs or canopies prior to P.I.N. JEE0041769

1шт.

For models with cabs or canopies P.I.N. JEE0041769 and after, order the dual lever remote control assembly and component parts from the 921B Parts Catalog, Bur 8-9660.

1шт.

2

140-114

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

4шт.

3

1339947C1

LARGE PLATE

PLATE, LARGE mounting, remote control

1шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 5

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 7

6шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

6шт.

9

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, 9/16-18 inch flare x bulkhead flare

6шт.

10

1339969C1

LARGE PLATE

PLATE, LARGE SEPARATOR hose, loader control

1шт.

11

1339965C1

HOSE,9.53mm ID x 419.1mm L, SAE 100R1

16-1/2 inch (419 mm) long, remote control to hose separator

4шт.

12

1339964C1

HOSE,9.53mm ID x 501.7mm L, SAE 100R1

19-7/8 inch (502 mm) long, remote control to hydraulic reservoir to pressure reducing valve

2шт.

13

43-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

machine, flat Phillips, 1/4 NC x 3/4 inch

6шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

15

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

4шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
