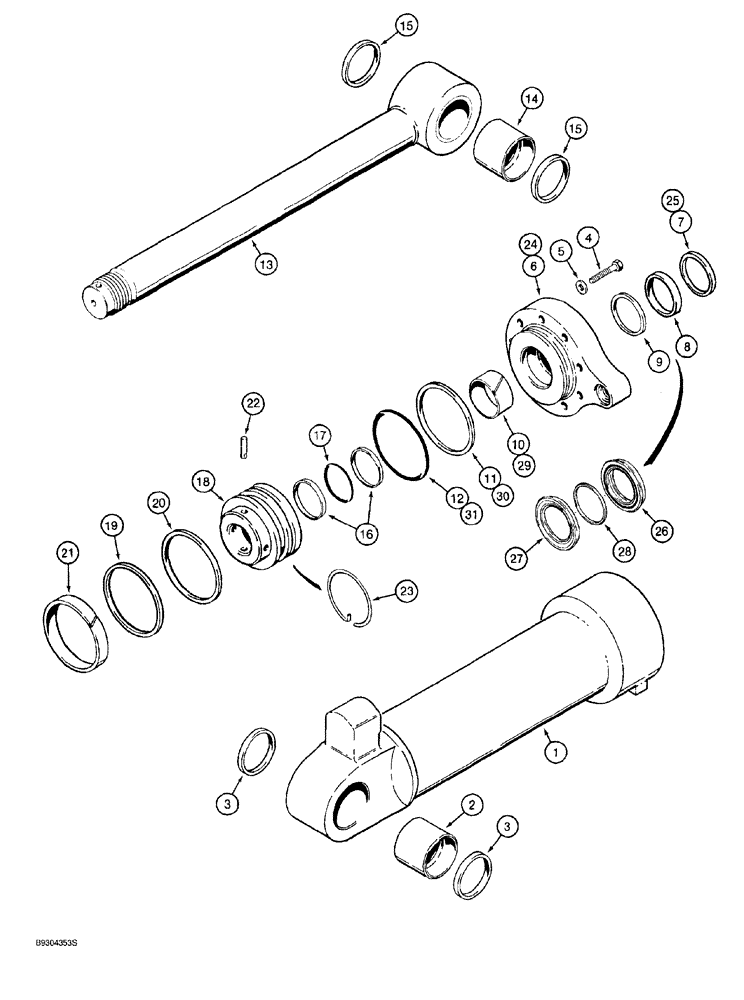

Запчасти Case 921 (8-054) - BUCKET CYLINDER (08) - HYDRAULICS

1346171C3

CYLINDER ASSY.

8 (203) ID x 29-5/16 inch (745 mm) stroke, see Figure 9-004 for mounting, Includes: Ref. 1 - 31

1шт.

1

1346172C1

HYD CYL SLEEVE

TUBE ASSY., Includes: Ref. 2

1шт.

2

L127807

BUSHING

tube

1шт.

3

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

wiper, tube eye

2шт.

4

26-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

BOLT hex, 7/8 NC x 3-1/2 inch, grade 8

9шт.

5

396-31094

WASHER,15/16" x 1 3/4" x .219", HDN

flat, hardened, 15/16 x 1-3/4 x 7/32 inch

9шт.

1346358C2

CYLINDER END CAP

GLAND ASSY., if used, no longer available, order 1346184C2

1шт.

For identification purposes, Ref, 24, 1346186C2 gland has a groove on the outside rim around the wiper. The 1346358C2 or 1346184C2 gland assemblies do not have a groove.

1шт.

1346184C2

CYLINDER END CAP

GLAND ASSY., if used, Includes: Ref. 6 - 12

1шт.

For identification purposes, Ref, 24, 1346186C2 gland has a groove on the outside rim around the wiper. The 1346358C2 or 1346184C2 gland assemblies do not have a groove.

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND, uses Ref. 8, 9

1шт.

For identification purposes, Ref, 24, 1346186C2 gland has a groove on the outside rim around the wiper. The 1346358C2 or 1346184C2 gland assemblies do not have a groove.

1шт.

7

S108245

WIPER SEAL

piston rod

1шт.

8

G109056

SEAL

U-cup, piston rod

1шт.

9

G109031

SEAL

SEALRING buffer

1шт.

10

1346213C1

BUSHING

, Serial Range: gland-rod

1шт.

11

1346211C1

BACK-UP RING,192.35mm ID x 1.9mm Width

backup, gland O-ring

1шт.

12

238-6367

O-RING,0.21" Thk x 7.475" ID, -367, Cl 6, 90 Duro

1шт.

13

1346173C2

PISTON ROD

101 mm diameter, Includes: Ref. 14

1шт.

14

L127807

BUSHING

rod eye

1шт.

15

1346341C1

WIPER SEAL,86.49mm ID x 101.73mm OD x 7.95mm Thk

wiper, rod eye

2шт.

16

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Seal, Serial Range: Piston-rod

2шт.

Part of kit P/N 1346357C2

1шт.

17

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Piston to rod

1шт.

Part of kit P/N 1346357C2

1шт.

18

1346182C1

PISTON

rod

1шт.

19

1346359C1

SEALING RING

, Serial Range: piston-tube

1шт.

Part of kit P/N 1346357C2

1шт.

20

1346340C1

SEALING RING

RING backup, piston

1шт.

Part of kit P/N 1346357C2

1шт.

21

1346212C1

RING

BUSHING, Serial Range: piston-tube

1шт.

Part of kit P/N 1346357C2

1шт.

22

G106602

LOCK PIN

locking, Serial Range: piston-rod

1шт.

23

1346328C1

CIRCLIP

RING retaining, locking pin

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY., cylinder, if used, Includes: Ref. 24 - 31

1шт.

For identification purposes, Ref, 24, 1346186C2 gland has a groove on the outside rim around the wiper. The 1346358C2 or 1346184C2 gland assemblies do not have a groove.

1шт.

24

1346186C2

CYLINDER END CAP

GLAND, uses Ref. 26, 27, 28

1шт.

For identification purposes, Ref, 24, 1346186C2 gland has a groove on the outside rim around the wiper. The 1346358C2 or 1346184C2 gland assemblies do not have a groove.

1шт.

25

S108245

WIPER SEAL

piston rod

1шт.

Part of kit P/N 1346357C2

1шт.

1542883C1

SEAL KIT

seal, NSS, order 1346357C2, Includes: Ref. 26 - 28

1шт.

Part of kit P/N 1346357C2

1шт.

26

1543013C1

SEAL rod, NSS, order 1346357C2

1шт.

27

1543014C1

SEAL buffer, NSS, order 1346357C2

1шт.

28

1543356C1

RING backup, NSS, order 1346357C2

1шт.

29

1346213C1

BUSHING

, Serial Range: gland-rod

1шт.

Part of kit P/N 1346357C2

1шт.

30

1346211C1

BACK-UP RING,192.35mm ID x 1.9mm Width

backup, gland O-ring

1шт.

Part of kit P/N 1346357C2

1шт.

31

238-6367

O-RING,0.21" Thk x 7.475" ID, -367, Cl 6, 90 Duro

1шт.

Part of kit P/N 1346357C2

1шт.

1346357C2

SEAL KIT

seal, Includes: Ref. 16, 17, 19 - 21, 25, 29 - 31, P/N 1542883C1 and instruction sheet

1шт.
