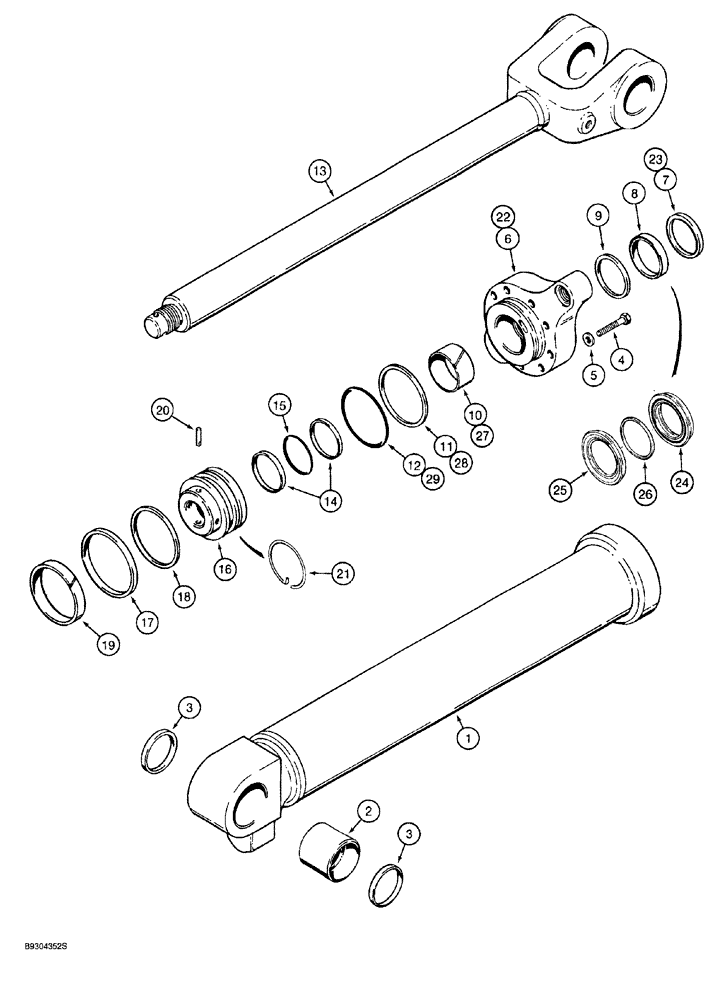

Запчасти Case 921 (8-052) - LIFT CYLINDERS (08) - HYDRAULICS

1986603C1

CYLINDER ASSY.

7 (178) ID x 34-1/8 inch (867 mm) stroke, see Figure 9-004 for mounting, Includes: Ref. 1 - 29

1шт.

1

1542892C1

HYD CYL SLEEVE,177.8 mm ID

TUBE ASSY., Includes: Ref. 2

1шт.

2

L127972

BUSHING

tube

1шт.

3

L128529

SEAL,95.2mm ID x 107.9mm OD x 8.3mm Thk

tube eye

2шт.

4

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

9шт.

5

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, special, hardened

9шт.

1986919C1

CYLINDER END CAP

GLAND ASSY., if used, no longer available, order 1986654C1

1шт.

For identification purposes, Ref. 22, 1986604C1 gland has a groove on the outside rim around the wiper. The 1986919C1 or 1986654C1 gland assemblies do not have a groove.

1шт.

1986654C1

CYLINDER END CAP

GLAND ASSY., if used, Includes: Ref. 6 - 12

1шт.

For identification purposes, Ref. 22, 1986604C1 gland has a groove on the outside rim around the wiper. The 1986919C1 or 1986654C1 gland assemblies do not have a groove.

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND cylinder, uses Ref. 8, 9

1шт.

For identification purposes, Ref. 22, 1986604C1 gland has a groove on the outside rim around the wiper. The 1986919C1 or 1986654C1 gland assemblies do not have a groove.

1шт.

7

S108245

WIPER SEAL

piston rod

1шт.

8

G109056

SEAL

U-cup, piston rod

1шт.

9

G109031

SEAL

SEALRING buffer

1шт.

10

1346213C1

BUSHING

, Serial Range: gland-rod

1шт.

11

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

backup, gland O-ring

1шт.

12

G110678

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

gland seal

1шт.

13

1986623C1

PISTON ROD

101 mm diameter

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Seal, Serial Range: Piston-rod

2шт.

Part of kit P/N 1986920C2

1шт.

15

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Piston to rod

1шт.

Part of kit P/N 1986920C2

1шт.

16

1986627C1

PISTON

rod

1шт.

17

S110157

SEAL,172.11mm ID x 179.58mm OD x 9.32mm Thk

, Serial Range: piston-tube

1шт.

Part of kit P/N 1986920C2

1шт.

18

S110156

SEALING RING,6.86mm Thk x 157.86mm ID

RING backup, piston

1шт.

Part of kit P/N 1986920C2

1шт.

19

S109534

WEAR RING,Split, 171.45mm ID x 177.8mm OD x 38.1mm Thk

RING wear, Serial Range: piston-tube

1шт.

Part of kit P/N 1986920C2

1шт.

20

G106602

LOCK PIN

locking, Serial Range: piston-rod

1шт.

21

1346328C1

CIRCLIP

RING retaining, locking pin

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY., cylinder, if used, Includes: Ref. 22 - 29

1шт.

For identification purposes, Ref. 22, 1986604C1 gland has a groove on the outside rim around the wiper. The 1986919C1 or 1986654C1 gland assemblies do not have a groove.

1шт.

22

1986604C1

CYLINDER END CAP

GLAND, uses Ref. 24, 25, 26

1шт.

For identification purposes, Ref. 22, 1986604C1 gland has a groove on the outside rim around the wiper. The 1986919C1 or 1986654C1 gland assemblies do not have a groove.

1шт.

23

S108245

WIPER SEAL

piston rod

1шт.

Part of kit P/N 1986920C2

1шт.

1542883C1

SEAL KIT

seal, NSS, order 1986920C2, Includes: Ref. 24 - 26

1шт.

Part of kit P/N 1986920C2

1шт.

24

1543013C1

SEAL rod, NSS, order 1986920C2

1шт.

25

1543014C1

SEAL buffer, NSS, order 1986920C2

1шт.

26

1543356C1

RING backup, NSS, order 1986920C2

1шт.

27

1346213C1

BUSHING

, Serial Range: gland-rod

1шт.

Part of kit P/N 1986920C2

1шт.

28

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

backup, gland O-ring

1шт.

Part of kit P/N 1986920C2

1шт.

29

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

Part of kit P/N 1986920C2

1шт.

1986920C2

SEAL KIT

seal, Includes: Ref. 14, 15, 17 - 19, 23, 27 - 29, P/N 1542883C1 and an instruction sheet, used with 1986604C1 gland

1шт.
