(8-050) - HYDRAULIC CIRCUIT, LOADER AUXILIARY

Запчасти Case 921 (8-050) - HYDRAULIC CIRCUIT, LOADER AUXILIARY (08) - HYDRAULICS

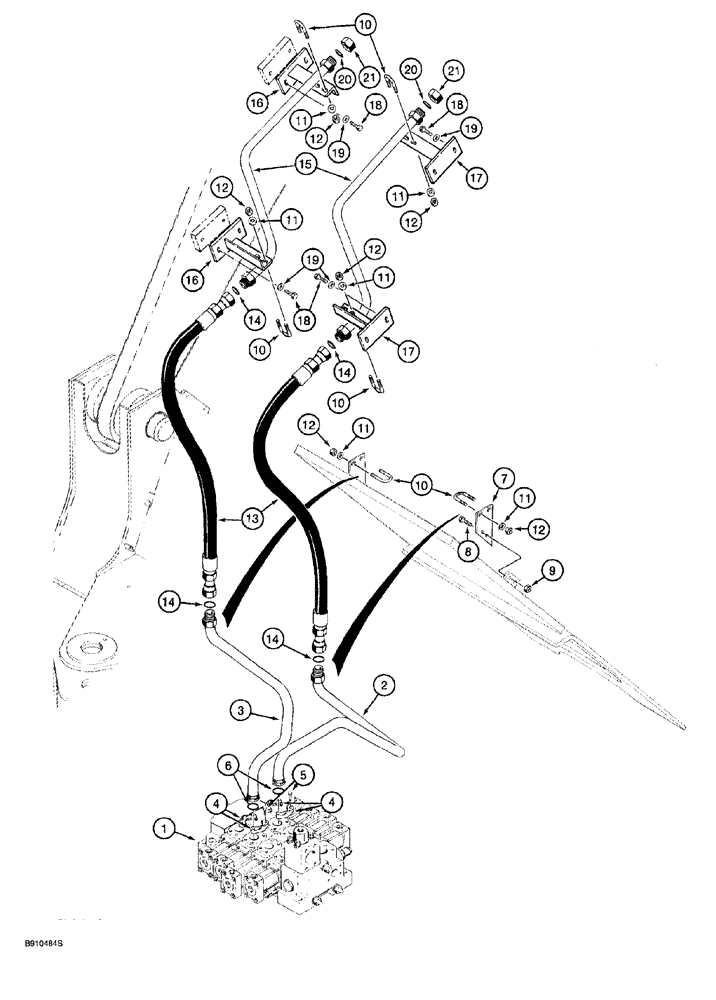

Схема запчастей Case 921 - (8-050) - HYDRAULIC CIRCUIT, LOADER AUXILIARY (08) - HYDRAULICS
3
4
18
1
19
12
10
10
17
11
14
14
19
9
4
10
12
21
12
18
10
11
20
11
21
13
16
2
11
14
18
19
12
8
11
17
12
14
6
20
12
11
7
16
5
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSY., control, loader, three-spool or four-spool, see Figures 8-022 and 8-024 or 8-034 and 8-036 for correct valve assembly and components

1шт.

2

L129808

TUBE,31.75 mm OD

loader control valve to right-hand hose

1шт.

3

L129810

TUBE,31.75 mm OD

loader control valve to left-hand hose

1шт.

4

A12301

CLAMP,Half

CLAMP split

4шт.

5

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT hex, 7/16 NC x 1-1/4 inch

8шт.

6

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

7

L129834

SUPPORT

BRACKET mounting, tube

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

L129257

U-BOLT

tube retaining

6шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

12

231-1446

NUT,3/8" - 16, Gr 5

12шт.

13

L129253

HOSE ASSY.

53-5/32 inch (1350 mm) long, tube at loader valve to tube on loader arm

2шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

15

L129843

TUBE,31.75 mm OD x 770, 441 mm L

at loader arm, right-hand and left-hand

2шт.

16

L129260

SUPPORT

BRACKET mounting, tube, left-hand

2шт.

17

L129263

SUPPORT

BRACKET mounting, tube, right-hand

2шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

21

201-901

CAP,1 7/16"-12 ORFS

CAP hex, 1-7/16-12 inch face seal

2шт.
