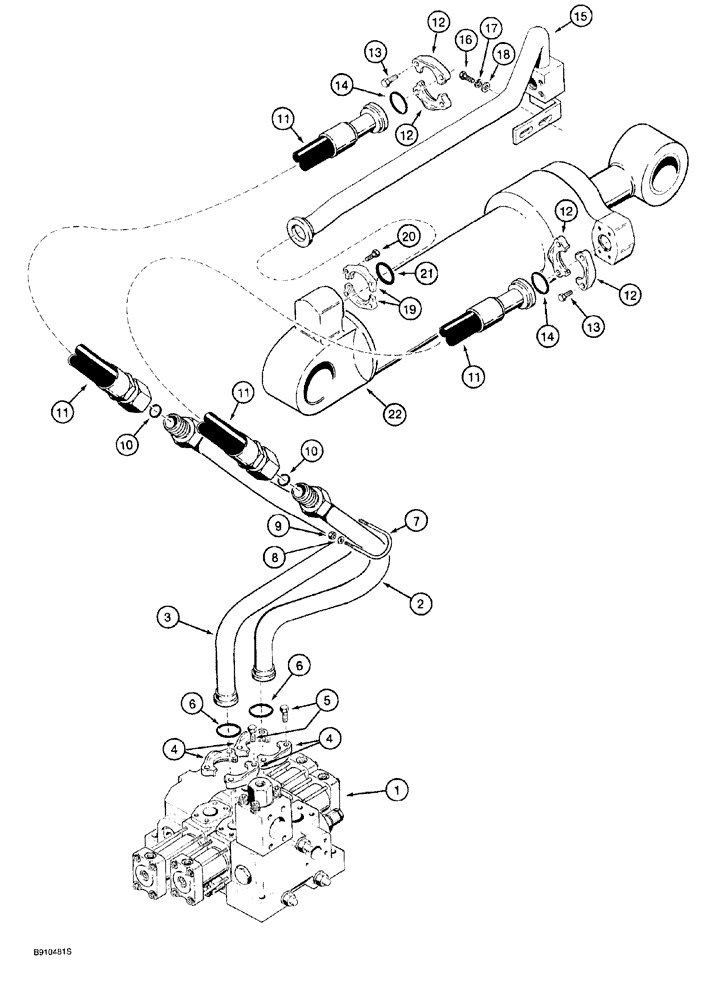

Запчасти Case 921 (8-048) - HYDRAULIC CIRCUIT, LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY., control, loader, see Figures 8-020 - 8-024 or 8-032 - 8-036 for correct valve assmbly and components

1шт.

2

L129721

TUBE,38.09 mm OD

supply, right-hand

1шт.

3

L129719

TUBE,38.09 mm OD

supply, left-hand

1шт.

4

A12301

CLAMP,Half

CLAMP split

4шт.

5

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT hex, 7/16 NC x 1-1/4 inch

8шт.

6

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

7

L129258

U-BOLT

BOLT "U" tube retaining

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

11

L129716

HOSE ASSY.

63-9/16 inch (1650 mm) long, tube to bucket cylinder

2шт.

12

A12301

CLAMP,Half

CLAMP split

4шт.

13

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT hex, 7/16 NC x 1-1/4 inch

8шт.

14

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

15

L128519

TUBE,38.09 mm OD

bucket cylinder

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

19

A14157

FLANGE

CLAMP split

2шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

21

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

22

1346171C3

CYLINDER ASSY.

8 (203) ID x 29-5/16 inch (745 mm) stroke, see Figure 8-054

1шт.
