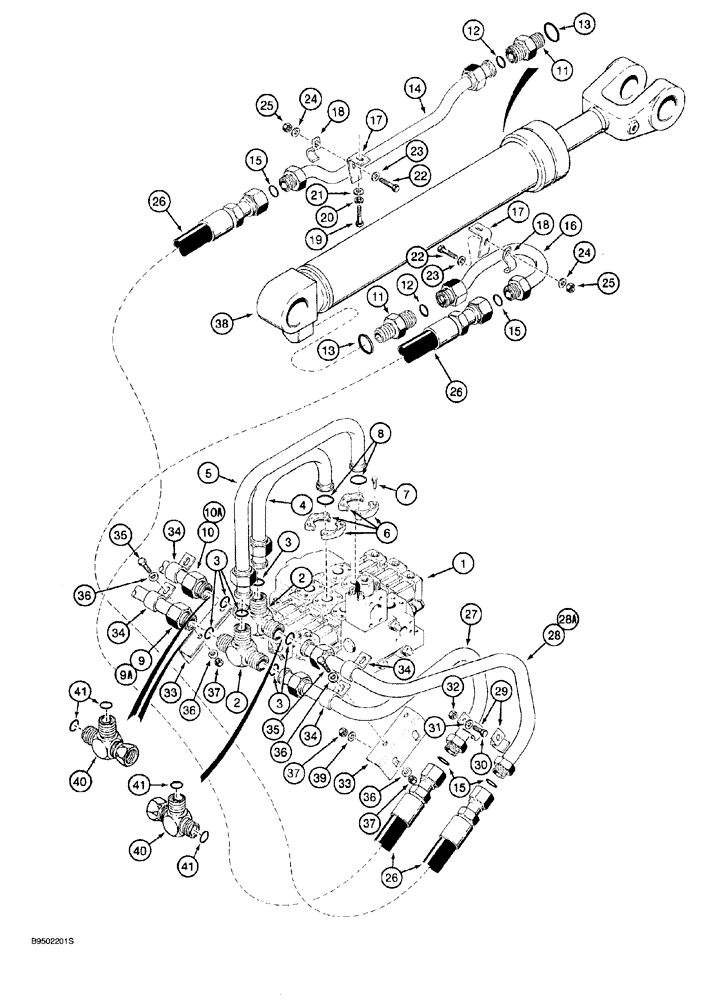

Запчасти Case 921 (8-046) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY., control, loader, see Figures 8-020 - 8-024 or 8-032 - 8-036 for correct valve assembly and components

1шт.

2

201-431

TEE,2"-12 ORFS

2-12 inch face seal branch x face seal x face seal, Includes: Ref. 3

2шт.

3

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

3шт.

4

L129509

TUBE,38.09 mm OD x 293, 275 mm L

lift, at valve, cylinder closed end circuit

1шт.

5

L129503

TUBE,38.09 mm OD x 485, 412 mm L

lift, at valve, cylinder rod end circuit

1шт.

6

A12301

CLAMP,Half

CLAMP split

4шт.

7

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT hex, 7/16 NC x 1-1/4 inch

8шт.

8

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

9

L129507

TUBE,38.09 mm OD

lift, at tee, left-hand cylinder rod end circuit, models without ride control

1шт.

9a

131898A1

TUBE

TUBE lift, at tee, left-hand cylinder rod end circuit, models with ride control

1шт.

10

L129513

TUBE,38.09 mm OD

lift, at tee, left-hand cylinder closed end circuit, models without ride control

1шт.

10a

131900A1

TUBE

TUBE lift, at tee, left-hand cylinder closed end circuit, models with ride control

1шт.

11

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER straight, 1-11/16-12 face seal x 1-5/8-12 inch O-ring boss, Includes: Ref. 12, 13

4шт.

12

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss end

1шт.

14

L127938

TUBE,31.75 mm OD

TUBE lift cylinder, rod end

2шт.

15

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

8шт.

16

L127936

PIPE ASSY.,31.75 mm OD

TUBE lift cylinder, closed end

2шт.

17

L128507

SUPPORT

BRACKET mounting, tube

4шт.

18

S120173

CLAMP

tube

4шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

25

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

26

L128448

HOSE ASSY.,25.4mm ID x 1425mm L, SAE 100R12

56 inch (1425 mm) long, lift cylinder, Serial Range: tube-tube

4шт.

27

L129505

TUBE,38.09 mm OD

lift, at tee, right hand cylinder rod end circuit

1шт.

28

L129511

TUBE,38.09 mm OD

lift, at tee, right hand cylinder closed end circuit, models without ride control

1шт.

28a

131902A1

TUBE

TUBE lift, at tee, right hand cylinder closed end circuit, models with ride control

1шт.

29

S87573

CLAMP

tube

4шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

31

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

32

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

33

L127925

SUPPORT

BRACKET mounting, tube

2шт.

34

S87573

CLAMP

tube

4шт.

35

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

36

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

37

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

8шт.

38

1986603C1

CYLINDER ASSY.

7 (178) ID x 34-1/8 inch (867 mm) stroke, lift, see Figure 8-052

2шт.

39

S95569

WASHER

flat, hardened, special, 1/2 inch

4шт.

40

201-437

TEE,2"-12 ORFS x 2"-12 Sw Run

2-12 inch face branch x face x swivel face, Includes: Ref. 41

3шт.

41

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.
