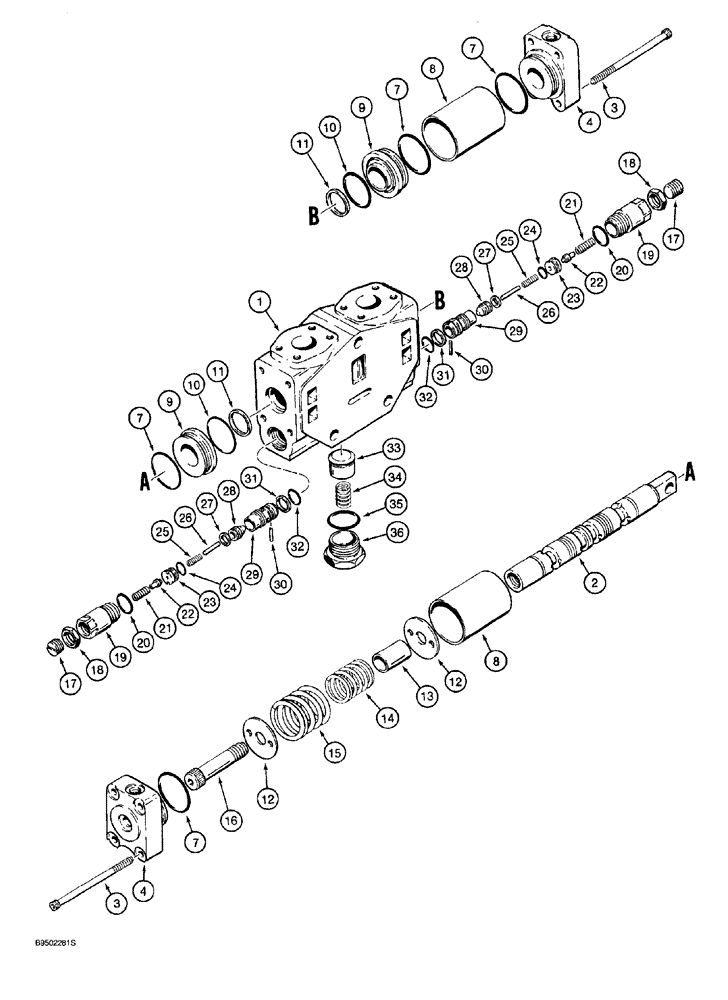

Запчасти Case 921 (8-044) - LOADER AUXILIARY SECTION, P.I.N. JEE0040188 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
132445A1
ELEMENT
SECTION ASSY., auxiliary, Replaces: S302081, Includes: Ref. 1 - 36
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING auxiliary section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL auxiliary section
1шт.
3
S302052
SCREW
hex socket, special, 5/16 NC x 5-1/2 inch grade 8
8шт.
4
132457A1
CAP
end
2шт.
7
238-6227
O-RING,0.139" Thk x 2.109" ID, -227, Cl 6, 90 Duro
4шт.
8
S302067
TUBE,2.31" ID x 2.62 - 2.625" OD x 3.504" L
SLEEVE spring
2шт.
9
S302069
TUBE
RETAINER seal
2шт.
10
238-6226
O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro
2шт.
11
L33217
RING
backup
2шт.
12
S302079
WASHER
SEAT spring
2шт.
13
S302068
TUBE,0.81" ID x 1" OD x 1.766" L
SPACER spring
1шт.
14
132455A1
SPRING
inner, spool positioner
1шт.
15
S302078
SPRING
spool positioner
1шт.
16
S302051
BOLT
BOLT hex socket head, special, spool positioner
1шт.
D149040
VALVE
ASSEMBLY circuit relief/anti-cavitation, Includes: Ref. 17 - 32
2шт.
17
NSS
NOT SOLD SEPARAT
SCREW adjusting, special
1шт.
18
NSS
NOT SOLD SEPARAT
NUT hex, special
1шт.
19
NSS
NOT SOLD SEPARAT
BODY valve
1шт.
20
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
21
NSS
NOT SOLD SEPARAT
SPRING poppet
1шт.
22
NSS
NOT SOLD SEPARAT
POPPET valve
1шт.
23
NSS
NOT SOLD SEPARAT
SEAT poppet
1шт.
24
NSS
NOT SOLD SEPARAT
O-RING seat
1шт.
25
NSS
NOT SOLD SEPARAT
SPRING plunger
1шт.
26
NSS
NOT SOLD SEPARAT
PLUNGER pilot
1шт.
27
NSS
NOT SOLD SEPARAT
SEAL filter
1шт.
28
NSS
NOT SOLD SEPARAT
FILTER valve
1шт.
29
NSS
NOT SOLD SEPARAT
BODY pilot plunger
1шт.
30
NSS
NOT SOLD SEPARAT
PIN roll
1шт.
31
S302062
BACK-UP RING
valve
1шт.
32
238-5116
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
1шт.
33
NSS
NOT SOLD SEPARAT
POPPET load check
1шт.
34
NSS
NOT SOLD SEPARAT
SPRING load check
1шт.
35
237-5020
O-RING,0.864" ID x 1.004" OD x 0.07"
1шт.
36
S302050
PLUG
load check
1шт.
Выбрано товаров: 36
