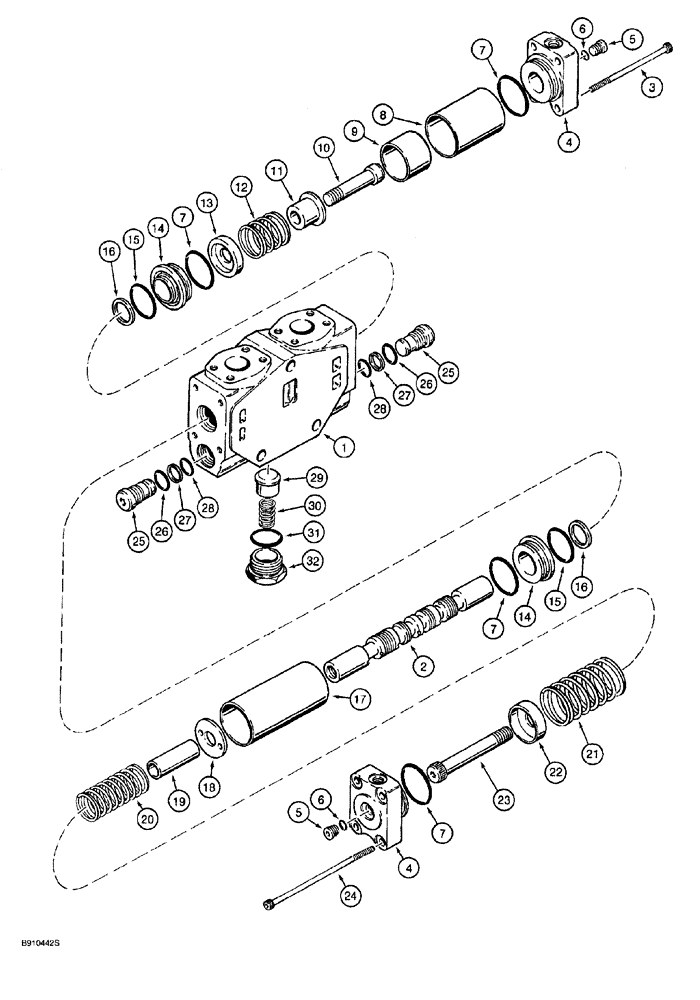

Запчасти Case 921 (8-042) - LOADER LIFT SECTION, P.I.N. JEE0040188 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
136970A1
CONTROL VALVE
SECTION ASSY., lift, Includes: Ref. 1 - 32
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING loader lift section
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL loader lift section
1шт.
3
S302052
SCREW
hex socket, special, 5/16 NC x 5-1/2 inch grade 8
4шт.
4
S302045
CAP
end
2шт.
5
76349
PLUG,9/16" - 18 ORB
Incl. Ref. 6
2шт.
6
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
7
238-5226
O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro
4шт.
8
S302067
TUBE,2.31" ID x 2.62 - 2.625" OD x 3.504" L
SLEEVE spring, short
1шт.
9
S302072
TUBE,2.03" ID x 2.6" OD x 1.66" L
SPACER sleeve, inner
1шт.
10
S302053
BOLT
BOLT hex socket head, special, short, spool positioner
1шт.
11
S302061
GUIDE
SEAT spring
1шт.
12
S302074
SPRING
spool positioner
1шт.
13
S302080
WASHER
SPACER spring
1шт.
14
S302069
TUBE
RETAINER seal
2шт.
15
238-5225
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
2шт.
16
L33217
RING
backup
2шт.
17
S302070
TUBE,2.31" ID x 2.62 - 2.625" OD x 5.472" L
SLEEVE spring, long
1шт.
18
S302079
WASHER
SEAT spring
1шт.
19
S302071
TUBE,0.81" ID x 1" OD x 2.89" L
SPACER inner
1шт.
20
S302076
SPRING
spool positioner
1шт.
21
S302075
SPRING
spool positioner
1шт.
22
S302060
GUIDE
SPACER outer
1шт.
23
S302055
STEP BOLT
BOLT hex socket head, special, long, spool positioner
1шт.
24
S302054
SCREW
hex socket, special, 5/16 NC x 7-1/2 inch grade 8
4шт.
S302063
PLUG
ASSEMBLY no relief, Includes: Ref. 25 - 28
2шт.
25
NSS
NOT SOLD SEPARAT
PLUG lift section
1шт.
26
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
27
S302062
BACK-UP RING
small O-ring
1шт.
28
238-5116
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
1шт.
29
S302064
VALVE POPPET
load check
1шт.
30
S302073
SPRING
load check
1шт.
31
237-5020
O-RING,0.864" ID x 1.004" OD x 0.07"
1шт.
32
S302050
PLUG
load check
1шт.
Выбрано товаров: 34
