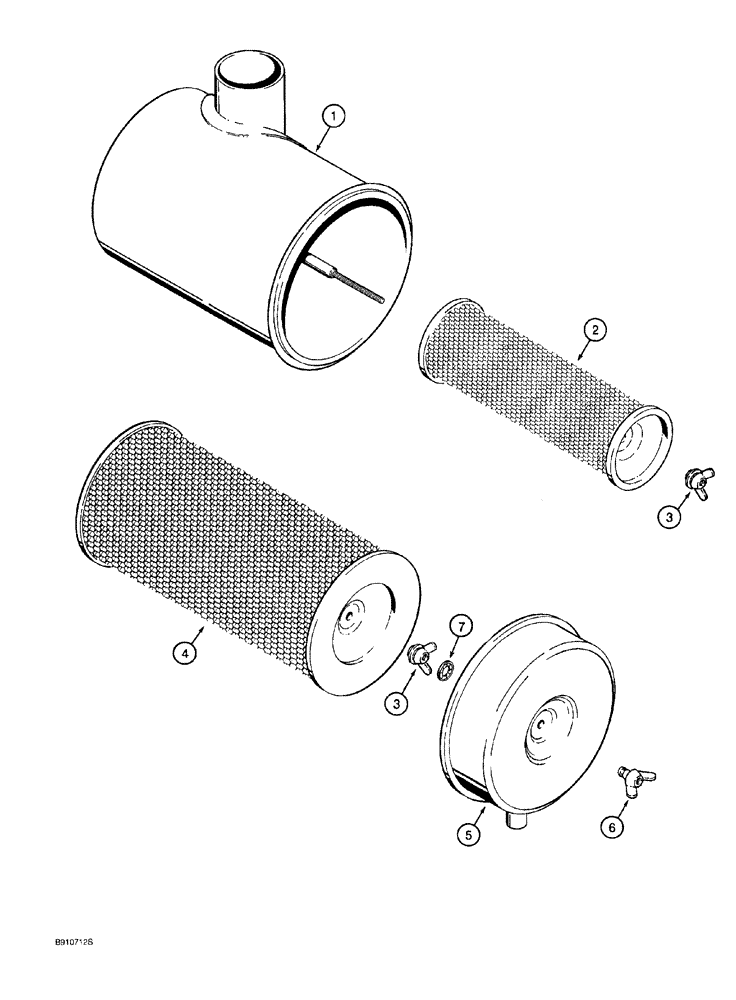

Запчасти Case 921 (2-006) - AIR CLEANER ASSEMBLY (02) - ENGINE

90-7743T91

AIR CLEANER

ASSY., engine, see Figure 2-004 for mounting, Replaces: 1347832C2, Includes: Ref. 1 - 7

1шт.

The service breakdown for the 90-7743T91 is one each of the following: 132149A1 secondary element, 132151A1 outer element and 90-7791T1 cover assembly, which includes a body assembly that is NSS.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

2

627976C1

AIR FILTER

secondary, inner

1шт.

3

L35499

NUT

wing, element retainer

2шт.

4

627975C3

AIR FILTER

ELEMENT primary, outer

1шт.

1347839C1

COVER

ASSY., air cleaner, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER end

1шт.

6

A47102

WING NUT

wing

1шт.

7

1347879C1

PLATE, LOCKING

WASHER special, internal teeth

1шт.
