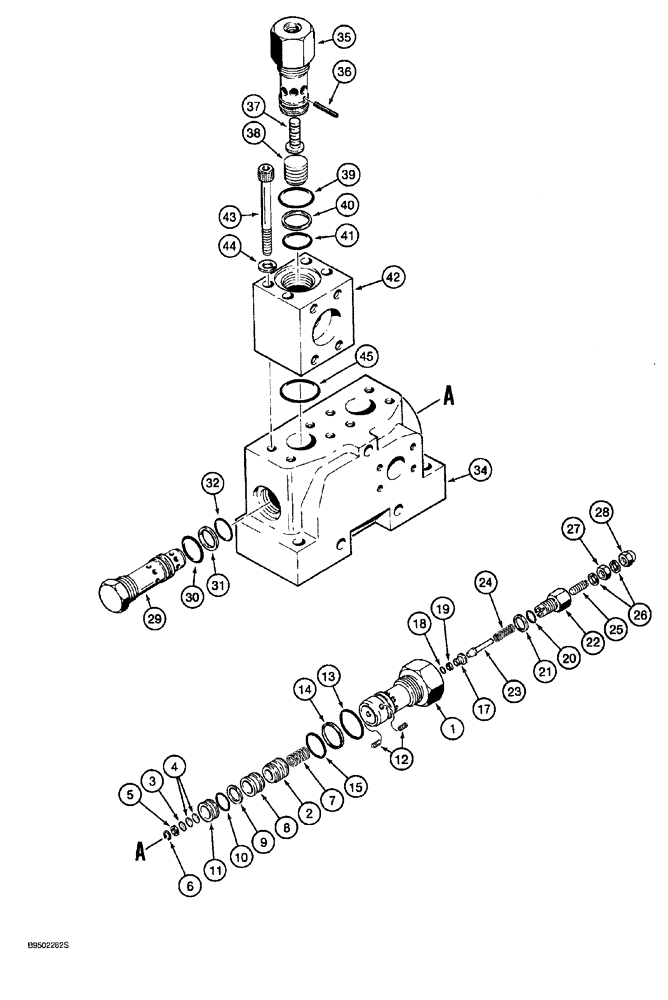

Запчасти Case 921 (8-038) - LOADER INLET AND OUTLET SECTION AND LOW PRESSURE REGENERATION VALVE, P.I.N. JEE0040188 AND AFTER (08) - HYDRAULICS

139654A1

ELEMENT

SECTION ASSY., inlet and outlet, Includes: Ref. 1 - 34

1шт.

138868A1

VALVE

ASSY., main relief, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

3

NSS

NOT SOLD SEPARAT

SCREEN mesh

1шт.

4

NSS

NOT SOLD SEPARAT

SCREEN mesh

2шт.

5

D77534

SPACER

screen

1шт.

6

D77535

RING, SNAP

RING SNAP

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING large

1шт.

8

D77536

SEAT

poppet

1шт.

9

D77537

BACK-UP RING

1шт.

10

177132A1

O-RING

small

1шт.

11

D77539

RETAINER

seat

1шт.

12

83-6254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

set, hex socket, 1/4 NC x 1/4 inch, half dog point

2шт.

13

T52486

O-RING

large

1шт.

14

S302065

BACK-UP RING

RING backup

1шт.

15

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

19

177128A1

BACK-UP RING

1шт.

20

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

21

D31450

WASHER

GASKET copper

1шт.

22

D77546

RETAINER

spring

1шт.

23

D77547

SEAT

poppet

1шт.

24

D77548

SPRING

small

1шт.

25

D38814

ADJUSTMENT SCREW,3/8" - 24

set, adjusting

1шт.

26

23150

WASHER

GASKET copper

2шт.

27

NSS

NOT SOLD SEPARAT

NUT hex, jam

1шт.

28

177157A1

NUT

dome

1шт.

126587A1

VALVE

ASSY., check, Includes: Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

VALVE check

1шт.

30

237-5016

O-RING,0.614" ID x 0.754" OD x 0.07"

1шт.

31

L32991

RING

backup, check valve

1шт.

32

L33234

O-RING,1" ID x 40546" OD x 3"

small

1шт.

34

NSS

NOT SOLD SEPARAT

BODY inlet and outlet section

1шт.

S302048

VALVE

ASSY., low pressure regeneration, includes block, Includes: Ref. 35 - 45

1шт.

126583A1

CARTRIDGE

VALVE ASSY., low pressure regeneration, Includes: Ref. 35 - 41

1шт.

35

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

36

NSS

NOT SOLD SEPARAT

PIN retaining

1шт.

37

NSS

NOT SOLD SEPARAT

PLUNGER valve

1шт.

38

NSS

NOT SOLD SEPARAT

VALVE low pressure regeneration

1шт.

39

T52486

O-RING

large valve body

1шт.

40

S302065

BACK-UP RING

RING backup

1шт.

41

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

42

NSS

NOT SOLD SEPARAT

BLOCK valve

1шт.

43

61-35076

HEX SOC SCREW,1/2"-13 x 4 3/4"

BOLT hex socket, 1/2 NC x 4-3/4 inch

4шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

45

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.
