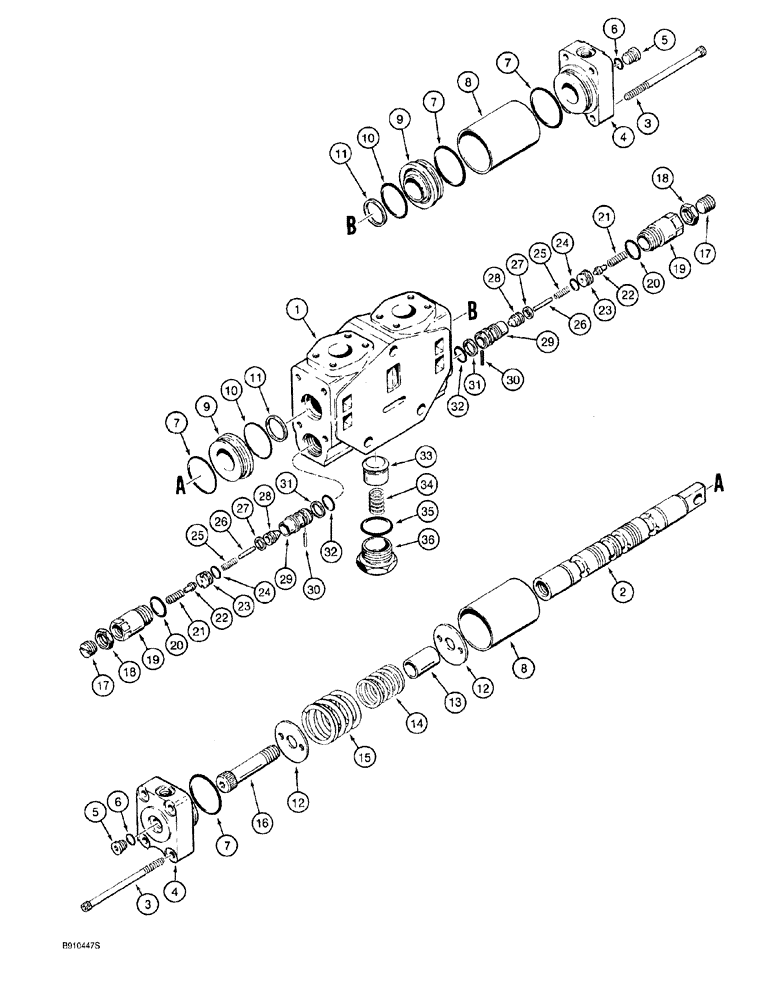

Запчасти Case 921 (8-028) - LOADER BUCKET TILT/ AUXILIARY SECTION, PRIOR TO P.I.N. JEE0040188 (08) - HYDRAULICS

S302081

KNIFE SECTION

SECTION, KNIFE ASSY., bucket tilt/auxiliary, no longer available, Includes: Ref. 1 - 36

1шт.

For bucket section, order 136969A1 on Figure 8-040. For auxiliary section, order 132445A1 on Figure 8-044.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket tilt/auxiliary section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket tilt/auxiliary section

1шт.

3

S302052

SCREW

hex socket, special, 5/16 NC x 5-1/2 inch grade 8

8шт.

4

S302045

CAP

end

2шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6

2шт.

7

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

4шт.

8

S302067

TUBE,2.31" ID x 2.62 - 2.625" OD x 3.504" L

SLEEVE spring

2шт.

9

S302069

TUBE

RETAINER seal

2шт.

10

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

2шт.

11

L33217

RING

backup

2шт.

12

S302079

WASHER

SEAT spring

2шт.

13

S302068

TUBE,0.81" ID x 1" OD x 1.766" L

SPACER spring

1шт.

14

S302077

SPRING

spool positioner

1шт.

15

S302078

SPRING

spool positioner

1шт.

16

S302051

BOLT

BOLT hex socket head, special, spool positioner

1шт.

D149040

VALVE

ASSEMBLY circuit relief/anti-cavitation, Includes: Ref. 17 - 32

2шт.

17

NSS

NOT SOLD SEPARAT

SCREW adjusting, special

1шт.

18

NSS

NOT SOLD SEPARAT

NUT hex, special

1шт.

19

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING seat

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING plunger

1шт.

26

NSS

NOT SOLD SEPARAT

PLUNGER pilot

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL filter

1шт.

28

NSS

NOT SOLD SEPARAT

FILTER valve

1шт.

29

NSS

NOT SOLD SEPARAT

BODY pilot plunger

1шт.

30

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

31

S302062

BACK-UP RING

valve, Replaces: A35698

1шт.

32

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

(Replaces A27365)

1шт.

33

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

35

237-5020

O-RING,0.864" ID x 1.004" OD x 0.07"

1шт.

36

S302050

PLUG

load check

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
