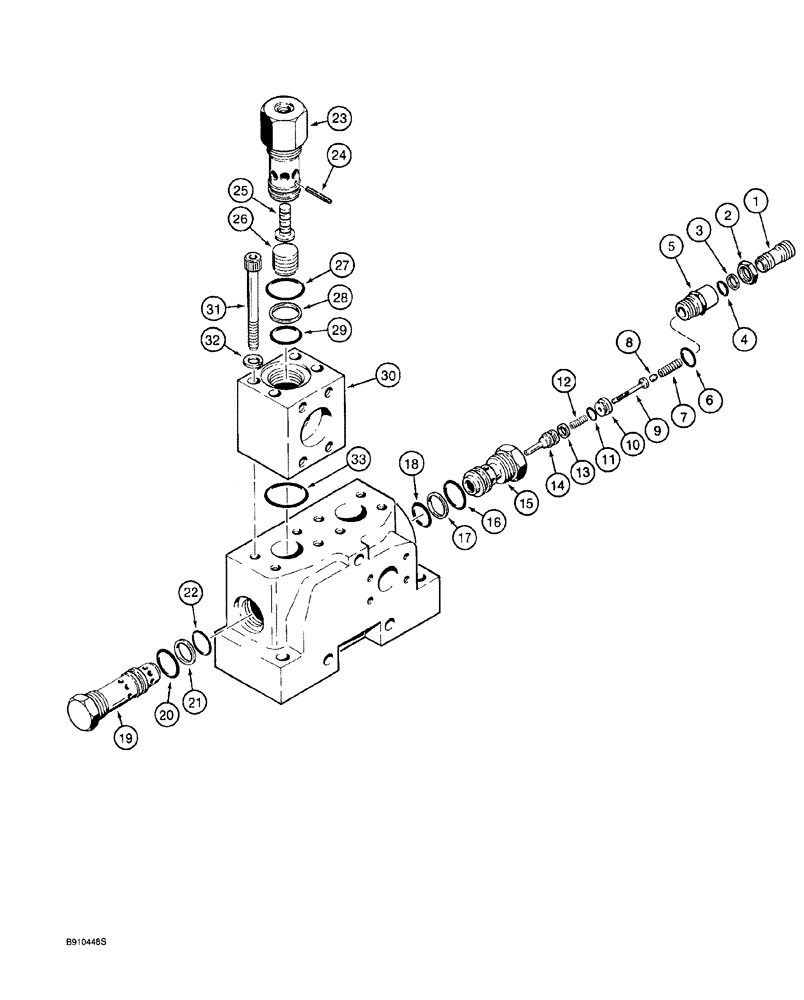

Запчасти Case 921 (8-026) - LOADER INLET AND OUTLET SECTION AND LOW PRESSURE REGENERATION VALVE, PRIOR TO P.I.N. JEE0040188 (08) - HYDRAULICS

S302083

VALVE

SECTION ASSY., inlet and outlet, loader control valve, Includes: Ref. 1 - 22, no longer available, order 139654A1, see Figure 8-038

1шт.

107078A1

VALVE, PRESSURE RELI

EF ASSY., main relief cartridge, Includes: Ref. 1 - 18, internal components not serviced separately, Replaces: S302084, no longer available, order 138868A1, see Figure 8-038

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

2

NSS

NOT SOLD SEPARAT

NUT hex, self-locking, special

1шт.

3

NSS

NOT SOLD SEPARAT

RING backup, O-ring

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING 9/16 ID x 1/16 inch wide

1шт.

5

NSS

NOT SOLD SEPARAT

BODY pilot plunger

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING body

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING plunger

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING poppet, 1/2 ID x 1/16 inch wide

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL poppet

1шт.

14

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

15

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

16

132207A1

O-RING,1-3/16" ID x 1" Width

O-RING 1-3/16 ID x 1/8 inch wide, large, valve

1шт.

17

132202A1

BACK-UP RING

valve

1шт.

18

132200A1

O-RING

O-RING 1 ID x 3/32 inch wide, small, valve

1шт.

S302046

VALVE

ASSEMBLY check, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE check

1шт.

20

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

21

L32991

RING

backup, check valve

1шт.

22

L33234

O-RING,1" ID x 40546" OD x 3"

check valve, small

1шт.

S302048

VALVE

ASSY., low pressure regeneration, includes block, Includes: Ref. 23 - 33

1шт.

S302047

VALVE

ASSY., low pressure regeneration, Includes: Ref. 23 - 29

1шт.

23

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

24

NSS

NOT SOLD SEPARAT

PIN retaining

1шт.

25

NSS

NOT SOLD SEPARAT

PLUNGER valve

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE low pressure regeneration

1шт.

27

238-6220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

1шт.

28

S302065

BACK-UP RING

RING backup

1шт.

29

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

30

NSS

NOT SOLD SEPARAT

BLOCK valve

1шт.

31

61-35076

HEX SOC SCREW,1/2"-13 x 4 3/4"

BOLT hex socket, 1/2 NC x 4-3/4 inch

4шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

33

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.
