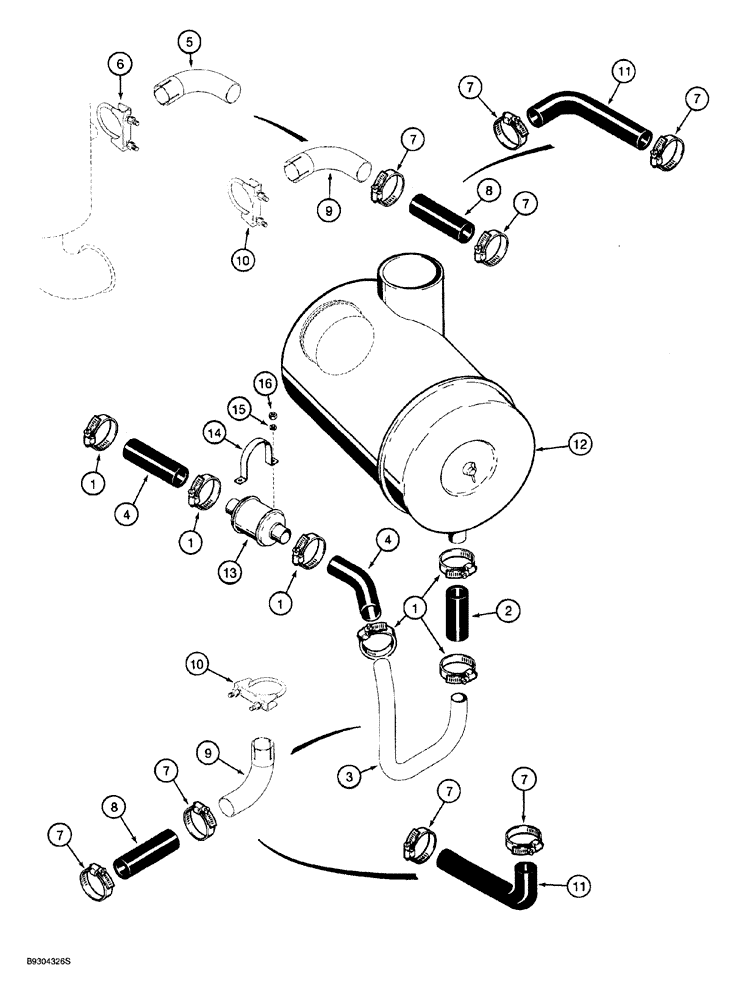

Запчасти Case 921 (2-005A) - AIR INDUCTION SYSTEM, AIR CLEANER TO MUFFLER (02) - ENGINE

1

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable, Serial Range: -JAK0026022

6шт.

2

L129120

HOSE,38.1 mm ID x 127.00 mm, SAE 100R4

Air Cleaner to Aspirator Tube, Serial Range: -JAK0026022

1шт.

3

L129731

TUBE,38.09 mm OD

aspirator, Serial Range: -JAK0026022

1шт.

4

L127301

HOSE,38.1 mm ID x 230.00 mm

At Check Valve, Serial Range: -JAK0026022

2шт.

5

L129735

ELBOW

aspirator, at muffler, no longer available, order Ref. 11, 107777A1, Serial Range: -JAK0026022

1шт.

6

D61412

CLAMP

elbow to muffler, Serial Range: -JAK0026022

1шт.

7

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Adjustable, Start Serial: JAK0026022

4шт.

8

101509A1

HOSE,38.10 mm ID x 190.00 mm, SAE 100R4

No longer available, Order Ref. 11, 107777A1, Start Serial: JAK0026022

2шт.

9

L129735

ELBOW

aspirator, no longer available, order Ref. 11, 107777A1, Start Serial: JAK0026022

2шт.

10

D61412

CLAMP

elbow to muffler, used with L129735, Start Serial: JAK0026022

2шт.

11

107777A1

ELBOW

TUBE, 90°, aspirator, Start Serial: JAK0026022

2шт.

12

1347832C2

AIR CLEANER

ASSY., engine, see Figure 2-006

1шт.

13

A190699

VALVE

check, aspirator tube

1шт.

14

L129733

CLAMP

check valve

1шт.

15

492-11025

LOCK WASHER,1/4"

2шт.

16

425-104

NUT,1/4"-20, Cl 5

2шт.
