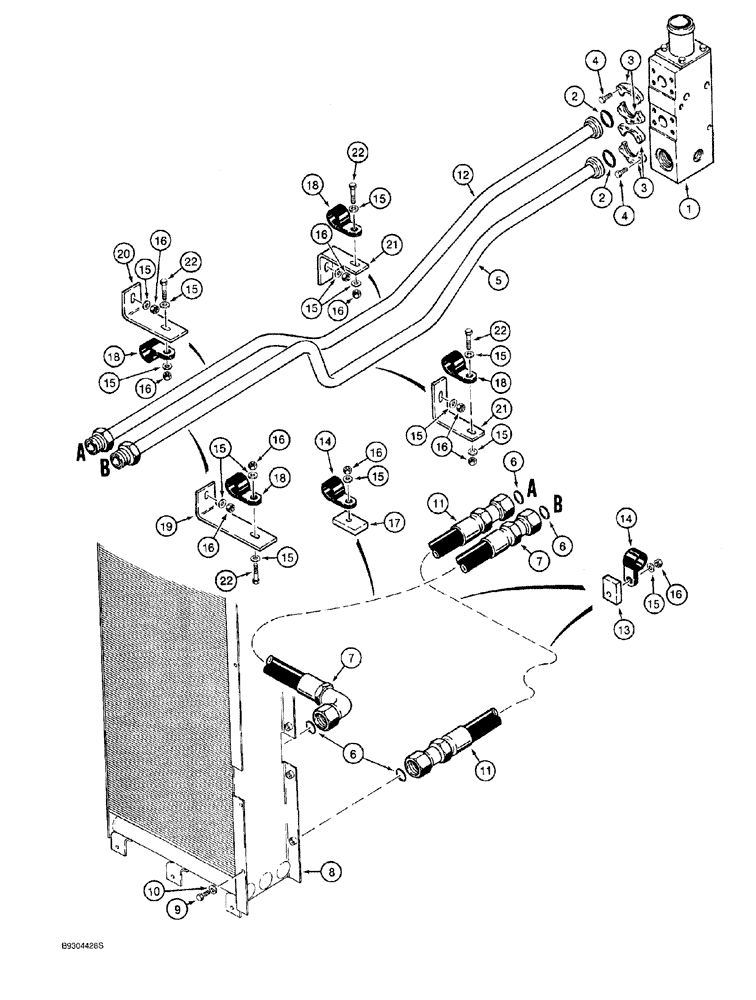

Запчасти Case 921 (8-016) - HYDRAULIC CIRCUIT, COOLER BYPASS VALVE TO HYDRAULIC OIL COOLER (08) - HYDRAULICS

1

L127968

VALVE BODY

ASSY., cooler bypass, see Figure 8-006, see Figure 8-018 for mounting

1шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

3

A12306

FLANGE

CLAMP split

4шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

5

L129166

TUBE,25.4 mm OD

hydraulic oil cooler supply

1шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

7

L129091

HOSE ASSY.

50 inch (1270 mm) long, hydraulic oil cooler supply

1шт.

8

L129695

OIL COOLER

transmission and hydraulic oil

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

9шт.

11

L129094

HOSE ASSY.

73-1/2 inch (1867 mm) long, hydraulic oil cooler return

1шт.

12

L129168

TUBE,25.4 mm OD

hydraulic oil cooler return

1шт.

13

L128763

SPACER

hose clamp

2-3шт.

14

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type

3-4шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

11-12шт.

16

231-1446

NUT,3/8" - 16, Gr 5

11шт.

17

L128859

SPACER

clamp

1шт.

18

S88820

CLAMP

tube

4шт.

19

L129274

SUPPORT

BRACKET mounting, supply tube

1шт.

20

L129275

SUPPORT

BRACKET mounting, return tube

1шт.

21

L129205

SUPPORT

BRACKET mounting, supply and return tubes

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.
