(8-014) - HYDRAULIC CIRCUIT, LOADER CONTROL VALVE TO COOLER BYPASS VALVE

Запчасти Case 921 (8-014) - HYDRAULIC CIRCUIT, LOADER CONTROL VALVE TO COOLER BYPASS VALVE (08) - HYDRAULICS

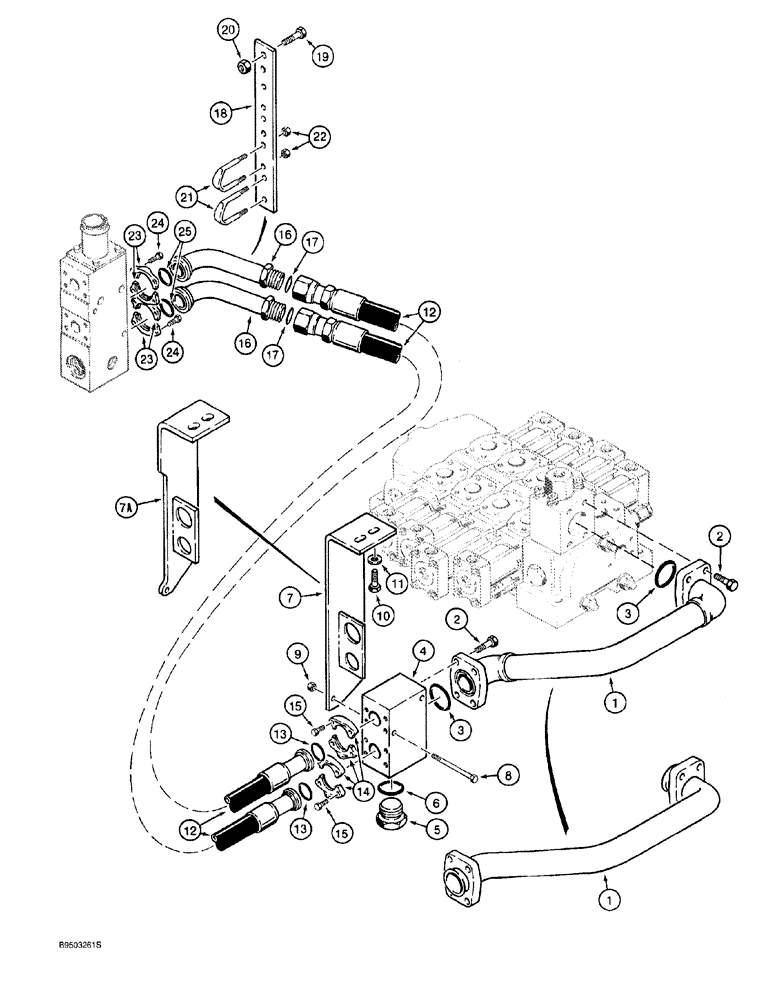

Схема запчастей Case 921 - (8-014) - HYDRAULIC CIRCUIT, LOADER CONTROL VALVE TO COOLER BYPASS VALVE (08) - HYDRAULICS
12
11
6
20
15
17
12
3
15
7a
23
25
16
19
13
16
9
1
1
10
8
5
14
2
13
22
24
24
23
18
7
17
2
21
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L129530

TUBE,50.8 mm OD x 560, 317 mm L

return, loader control valve to manifold

1шт.

Ref. 1 tube may have different types of flanged ends as shown on the illustration. The part number is the same for both styles and either one may be used.

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

3

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.

4

L128072

MANIFOLD VALVE

, Serial Range: tube-hoses

1шт.

5

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

PLUG hex, 1-7/8-12 inch O-ring boss, Includes: Ref. 6, models without ride control, see Figure 8-096, Ref. 21, for elbow used on models with ride control

1шт.

6

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

7

L129580

SUPPORT

BRACKET mounting, manifold, no longer available, order Ref. 7A

1шт.

7a

107703A1

SUPPORT

BRACKET mounting, manifold

1шт.

8

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch

2шт.

9

231-1446

NUT,3/8" - 16, Gr 5

2шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

11

S95569

WASHER

flat, special, 1/2 inch

2шт.

12

L128494

HOSE ASSY.

39 inch (990 mm) long, manifold to tubes at cooler bypass valve

2шт.

13

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

14

A12301

CLAMP,Half

CLAMP split

4шт.

15

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT hex, 7/16 NC x 1-1/4 inch

8шт.

16

L128146

TUBE,38.09 mm OD x 215, 64 mm L

return, at cooler bypass valve

2шт.

17

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

18

L128564

LARGE PLATE

PLATE, LARGE BRACKET mounting, tube

1шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

20

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

21

L129258

U-BOLT

BOLT "U" tube retaining

2шт.

22

231-1446

NUT,3/8" - 16, Gr 5

4шт.

23

A12301

CLAMP,Half

CLAMP split

4шт.

24

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT hex, 7/16 NC x 1-1/4 inch

8шт.

25

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.
