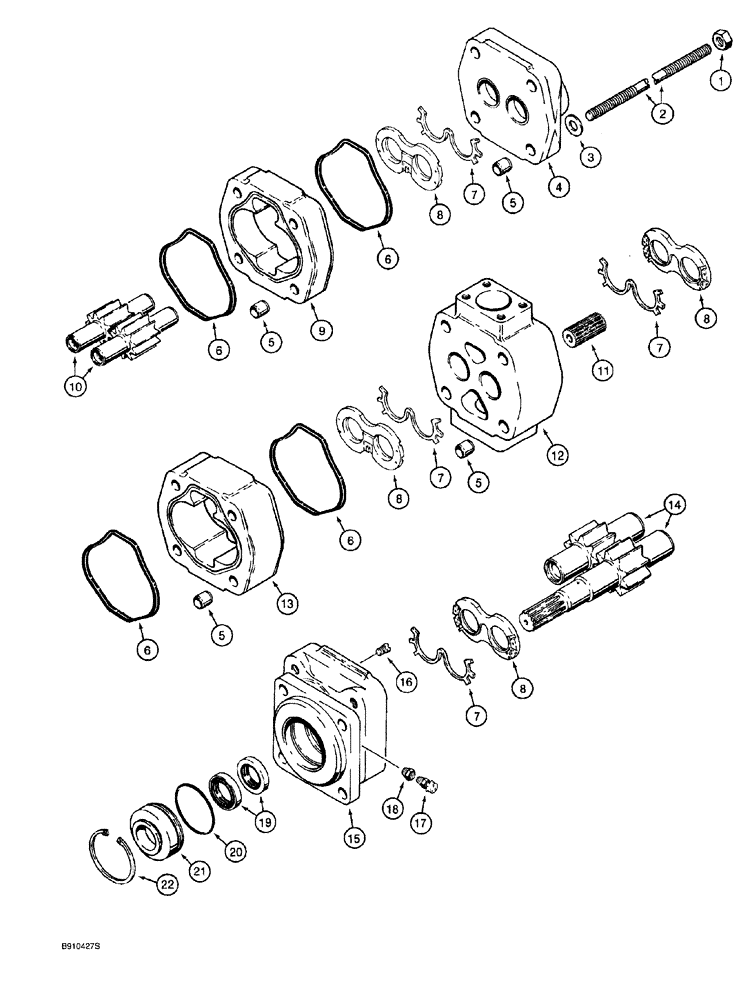

Запчасти Case 921 (8-008) - EQUIPMENT AND STEERING PUMP (08) - HYDRAULICS

L127716

PUMP, HYDRAULIC

ASSY., equipment and steering, see Figure 8-010 for mounting, Includes: Ref. 1 - 22

1шт.

1

429-1010

NUT,5/8"-11, G8

4шт.

2

S301141

STUD

pump

4шт.

3

19-488

WASHER

flat, special

4шт.

4

S301968

COVER

port end

1шт.

5

1978258C1

CENTERING RING

BUSHING alignment

16шт.

6

1978257C1

SEALING RING

SEALRING SEAL square section

4шт.

7

1978256C1

SEAL

grooved, thrust plate

4шт.

8

1978255C1

BACK-UP RING

PLATE thrust

4шт.

9

S301967

HOUSING

gear, port end

1шт.

10

S301963

GEAR-SET

port end

1шт.

11

S301142

GEAR SHAFT

connecting

1шт.

12

S301966

BEARING CARRIER

CARRIER bearing

1шт.

13

S301965

HOUSING

gear, shaft end

1шт.

14

S301964

GEAR-SET

shaft end

1шт.

15

S300592

COVER

shaft end

1шт.

16

L32320

PLUG

slotted, 7/16 inch NF

1шт.

17

1978259C1

VALVE POPPET

VENT air

1шт.

18

S300421

RESTRICTOR

REDUCER special, cover to air vent

1шт.

19

S300419

SEAL,34.92mm ID x 54.08mm OD x 7.92mm Thk

lip

2шт.

20

S300420

O-RING,2.862" ID x 3.068" OD x 0.103"

O-RING special, shaft end cover

1шт.

21

1978254C1

SEAL RETAINER

RETAINER

1шт.

22

100-21315

SNAP RING,3.156", Int, #315

1шт.

245878A1

SET OF PARTS

for installing a vane pump, for units with standard steering

1шт.

245879A1

SET OF PARTS

for installing a vane pump, for units with secondary steering

1шт.
