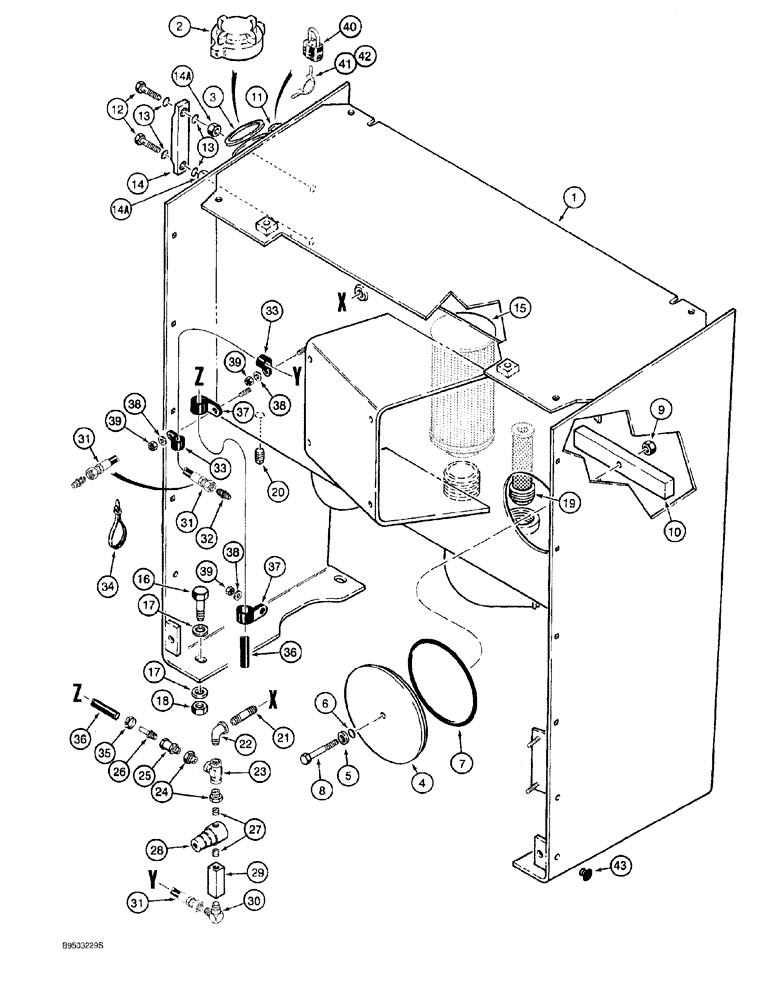

Запчасти Case 921 (8-004) - HYDRAULIC RESERVOIR, P.I.N. JAK0026022 AND AFTER (08) - HYDRAULICS

L127843

TANK, HYDRAULIC OIL

RESERVOIR ASSY., Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR hydraulic

1шт.

2

L127940

PLUG

CAP filler, hydraulic reservoir

1шт.

3

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

rubber, filler cap

1шт.

4

L128352

COVER

access, hydraulic filter

1шт.

5

L78045

WASHER

flat, special

1шт.

6

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

7

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

7-1/4 ID x 1/4 inch wide

1шт.

8

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

9

131-510

LOCK NUT,1/2"-13

heavy hex

1шт.

10

L50741

BAR

cover retainer

1шт.

11

R46704

BRACKET

TAB locking

1шт.

L116247

GAUGE

ASSY., sight, Includes: Ref. 12 - 14

1шт.

12

N13213

BOLT

BOLT special, sight gauge

2шт.

13

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge

4шт.

14

NSS

NOT SOLD SEPARAT

GAUGE sight, order L116247

1шт.

14

829-1412

NUT,M12, Cl 10.9

2шт.

15

L128515

STRAINER ELEMENT

SCREEN suction

1шт.

16

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT hex, 5/8 NC x 2-1/4 inch

4шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

flat, special, hardened

8шт.

18

425-1010

NUT,5/8"-11, G5

4шт.

19

L129303

FILTER SCREEN

reservoir

1шт.

20

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

square, 3/4 inch PT, magnetic

1шт.

21

221-1165

JUNCTION

NIPPLE straight, 3/8 PT x 2-1/2 inch

1шт.

22

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

ELBOW street, 90°, 3/8 inch PT

1шт.

23

221-1423

TEE,Pipe, 3/8" NPT

pipe, 3/8 inch

1шт.

24

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

REDUCER pipe, 3/8 male x 1/4 inch female

2шт.

25

L76420

LOCK VALVE

relief

1шт.

26

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight

1шт.

27

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

straight, 1/4 PT x 7/8 inch

2шт.

28

116133A1

VALVE

regulator

1шт.

29

116195A1

CHECK VALVE

1шт.

30

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

ELBOW, 90°, 7/16-20 flare x 1/4 inch PT

1шт.

31

116135A1

HOSE ASSY.

20-15/16 inch (1040 mm) wide, lower part of hose is rotated 90° on some models towards the rear of machine

1шт.

32

L60497

FITTING

flow reducing

1шт.

33

49836

CLAMP

P-type, 1/2 inch ID

1-2шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie

1шт.

35

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Replaces 214-1404

1шт.

36

L129439

HOSE,9.5 mm ID x 2100.00 mm, SAE 30R6

Overflow, Hydraulic Reservoir

1шт.

37

129083R1

CLAMP

P-type, 5/8 inch ID

2шт.

38

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

3шт.

39

231-1446

NUT,3/8" - 16, Gr 5

3шт.

40

D93753

PADLOCK

includes keys, if used, Includes: Ref. 41, 42

1шт.

41

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

42

R29555

KEY

for Master padlock only, if used

2шт.

43

L126856

RIVET

CUSHION rubber

4шт.
