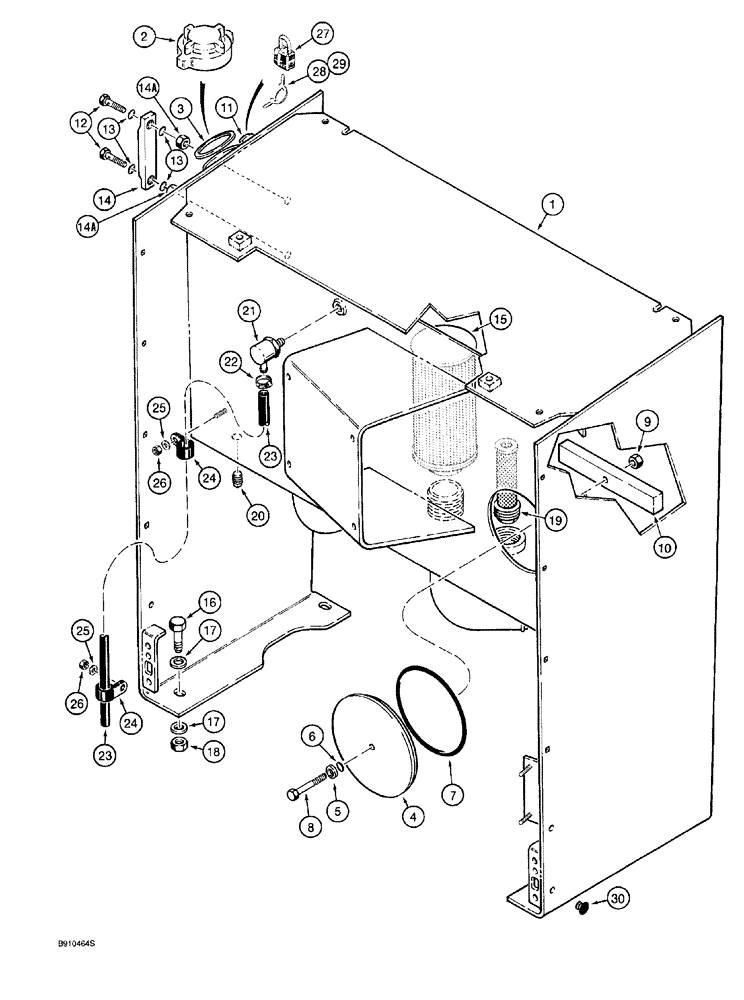

Запчасти Case 921 (8-002) - HYDRAULIC RESERVOIR, PRIOR TO P.I.N. JAK0026022 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L127843
TANK, HYDRAULIC OIL
RESERVOIR ASSY., Includes: Ref. 1 - 11
1шт.
1
NSS
NOT SOLD SEPARAT
RESERVOIR hydraulic
1шт.
2
L127940
PLUG
CAP filler, hydraulic reservoir
1шт.
3
R49868
GASKET,72mm ID x 90mm OD x 3mm Thk
rubber, filler cap
1шт.
4
L128352
COVER
access, hydraulic filter
1шт.
5
L78045
WASHER
flat, special
1шт.
6
238-5112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
1шт.
7
238-5442
O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro
7-1/4 ID x 1/4 inch wide
1шт.
8
113-2462
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1шт.
9
131-510
LOCK NUT,1/2"-13
heavy hex
1шт.
10
L50741
BAR
cover retainer
1шт.
11
R46704
BRACKET
TAB locking
1шт.
L116247
GAUGE
ASSY., sight, hydraulic oil, Includes: Ref. 12 - 14
1шт.
12
N13213
BOLT
BOLT special, sight gauge
2шт.
13
238-7112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro
Sight gauge
4шт.
14
NSS
NOT SOLD SEPARAT
GAUGE sight, order L116247
1шт.
14
829-1412
NUT,M12, Cl 10.9
2шт.
16
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
BOLT hex, 5/8 NC x 2-1/4 inch
4шт.
17
T53567
BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk
flat, special, hardened
8шт.
18
425-1010
NUT,5/8"-11, G5
4шт.
19
L129303
FILTER SCREEN
reservoir
1шт.
20
221-677
DRAIN PLUG,Sq Hd, 3/4" NPT
square, 3/4 inch PT, magnetic
1шт.
21
L79834
VENT
VALVE
1шт.
22
214-1406
HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm
1шт.
23
L129439
HOSE,9.5 mm ID x 2100.00 mm, SAE 30R6
Overflow, Hydraulic Reservoir
1шт.
24
129083R1
CLAMP
P-type, 5/8 inch ID
2шт.
25
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
2шт.
26
231-1406
LOCK NUT,3/8"-16, GB
2шт.
27
D93753
PADLOCK
includes keys, if used, Includes: Ref. 28, 29
1шт.
28
D93751
SET OF 2 KEYS
for Yale padlock only, if used
2шт.
29
R29555
KEY
for Master padlock only, if used
2шт.
30
L126856
RIVET
CUSHION rubber
4шт.
