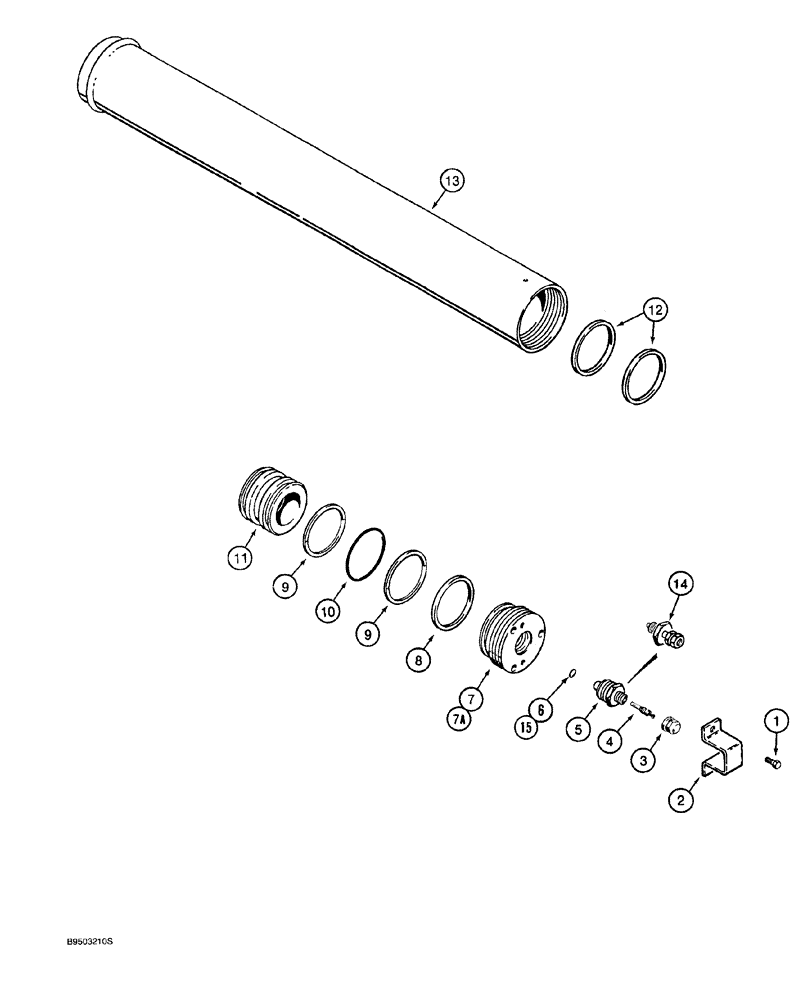

Запчасти Case 921 (7-028) - BRAKE ACCUMULATOR (07) - BRAKES

L129905

ACCUMULATOR

ASSY., brake, see Figure 7-010 for mounting, Includes: Ref. 1 - 15

1шт.

1

S301367

SCREW

special, bracket

2шт.

2

S301366

SUPPORT

BRACKET protection, valve

1шт.

1978142C1

VALVE

ASSY., charge, if used, Includes: Ref. 3 - 5

1шт.

3

1978144C1

CAP

valve

1шт.

4

1978143C1

PISTON

CORE valve

1шт.

5

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

6

1978158C1

O-RING

O-RING valve

1шт.

Part of kit P/N 1341919C1

1шт.

7

S301363

GLAND

accumulator, if used, use with 1978142C1 valve assembly

1шт.

7a

179065A1

CAP

GLAND accumulator, if used, use with 179066A1 gas valve

1шт.

S301368

SEAL KIT

seal, Includes: Ref. 8 - 10, no longer available, order 1341919C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING seal, gland

1шт.

Part of kit P/N 1341919C1

1шт.

9

NSS

NOT SOLD SEPARAT

RING backup, piston O-ring

2шт.

Part of kit P/N 1341919C1

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of kit P/N 1341919C1

1шт.

11

S301364

PISTON

accumulator

1шт.

12

S301365

RING

wear, teflon, piston

2шт.

13

NSS

NOT SOLD SEPARAT

TUBE accumulator

1шт.

14

179066A1

VALVE

gas, if used, Includes: Ref. 15 only

1шт.

15

1978158C1

O-RING

O-RING valve

1шт.

Part of kit P/N 1341919C1

1шт.

1341919C1

SEAL KIT

seal, Includes: Ref. 6, 8 - 10, 15

1шт.
