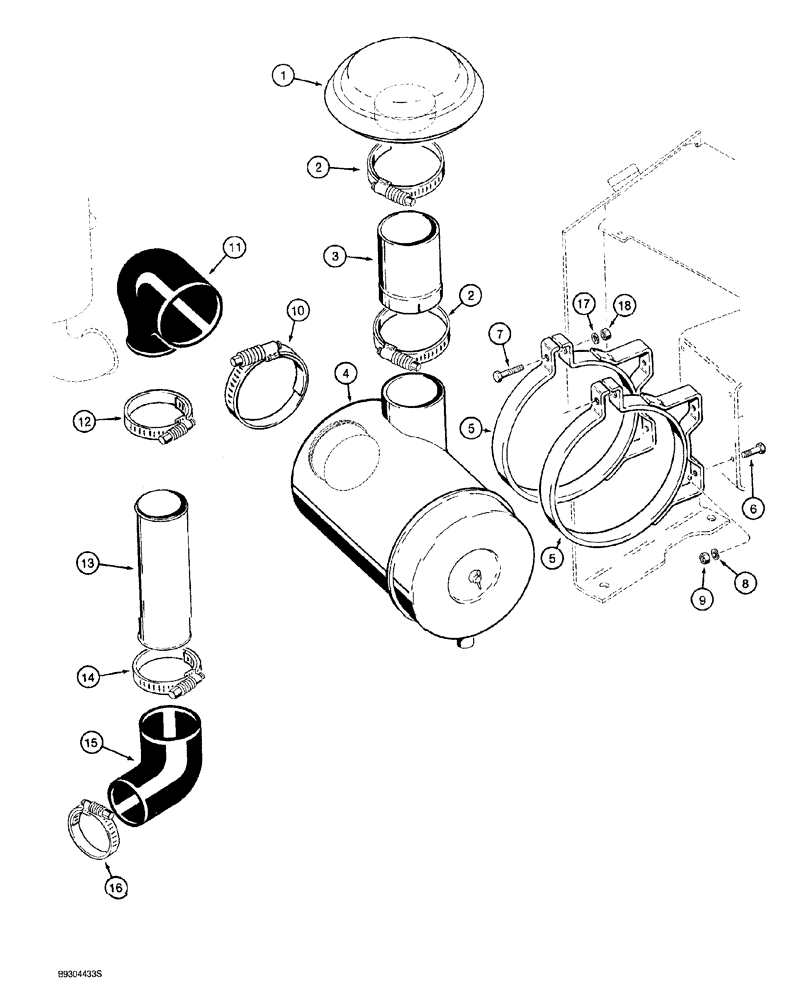

Запчасти Case 921 (2-004) - AIR INDUCTION SYSTEM, AIR CLEANER TO TURBOCHARGER (02) - ENGINE

1

9-128

CAP

air intake, Replaces: L56043, Includes: Ref. 2

1шт.

2

214-185

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

adj, 6-1/4 - 7-1/8 inch diameter

1шт.

3

L129742

EXTENSION

air cleaner

1шт.

4

1347832C2

AIR CLEANER

ASSY., engine, see Figure 2-006

1шт.

5

90-3871T1

CLIP

CLAMP air cleaner

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

L129160

CLAMP,158.75mm - 180.97mm

air, Serial Range: cleaner-elbow

1шт.

11

L128442

ELBOW

air, Serial Range: cleaner-tube

1шт.

12

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

elbow at air, Serial Range: cleaner-tube

1шт.

13

L128443

TUBE,127 mm OD x 407 mm L

elbow to elbow

1шт.

14

L124802

COLLAR CLAMP

tube to elbow at turbocharger

1шт.

15

L128441

ELBOW

, Serial Range: tube-turbocharger

1шт.

16

L124635

HOSE CLAMP

, Serial Range: elbow-turbocharger

1шт.

17

492-11031

LOCK WASHER,5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.
