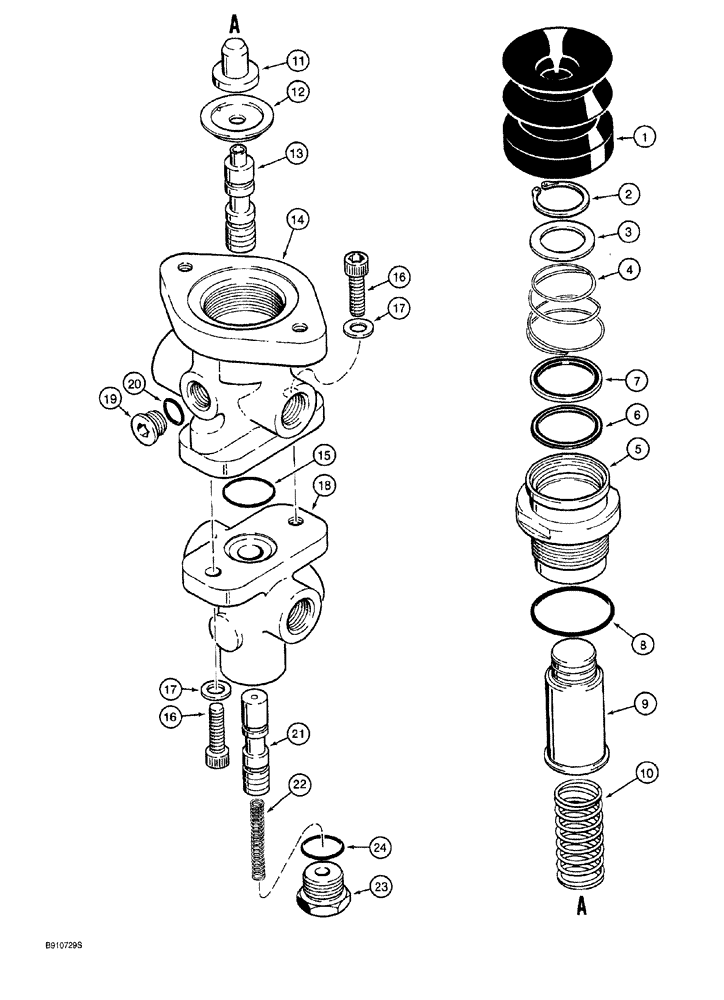

Запчасти Case 921 (7-026) - BRAKE VALVE (07) - BRAKES

L129699

VALVE

ASSY., brake, see Figure 7-014 for mounting, Includes: Ref. 1 - 24

1шт.

1

100660A1

BOOT

brake valve

1шт.

Part of kit P/N 100659A1

1шт.

2

100-1187

SNAP RING,#87, Ext

Replaces B18206

1шт.

3

100665A1

WASHER

flat, special

1шт.

4

100666A1

SPRING

gland

1шт.

5

100667A1

CENTERING RING

GLAND valve

1шт.

6

100662A1

SEALING RING

gland

1шт.

Part of kit P/N 100659A1

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER gland

1шт.

Part of kit P/N 100659A1

1шт.

8

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

(Replaces D26435)

1шт.

Part of kit P/N 100659A1

1шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING large, upper

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET spring

1шт.

12

100668A1

CUP WASHER

SEAT plunger

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL upper

1шт.

14

NSS

NOT SOLD SEPARAT

BODY upper

1шт.

15

100664A1

O-RING,0.864" ID x 1.004" OD x 0.07"

lower body

1шт.

Part of kit P/N 100659A1

1шт.

16

100672A1

HEX SOC SCREW,5/16" - 18 x 1"

hex socket, special

2шт.

17

100673A1

WASHER

flat, special

2шт.

18

NSS

NOT SOLD SEPARAT

BODY lower

1шт.

19

9625178

PLUG,9/16" - 18 ORB

Upper body, Incl. Ref. 20

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL lower

1шт.

22

100669A1

SPRING

lower

1шт.

23

100670A1

PLUG

lower body, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of kit P/N 100659A1

1шт.

100659A1

SEAL KIT

seal, Includes: Ref. 1, 6 - 8, 15, 24

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
