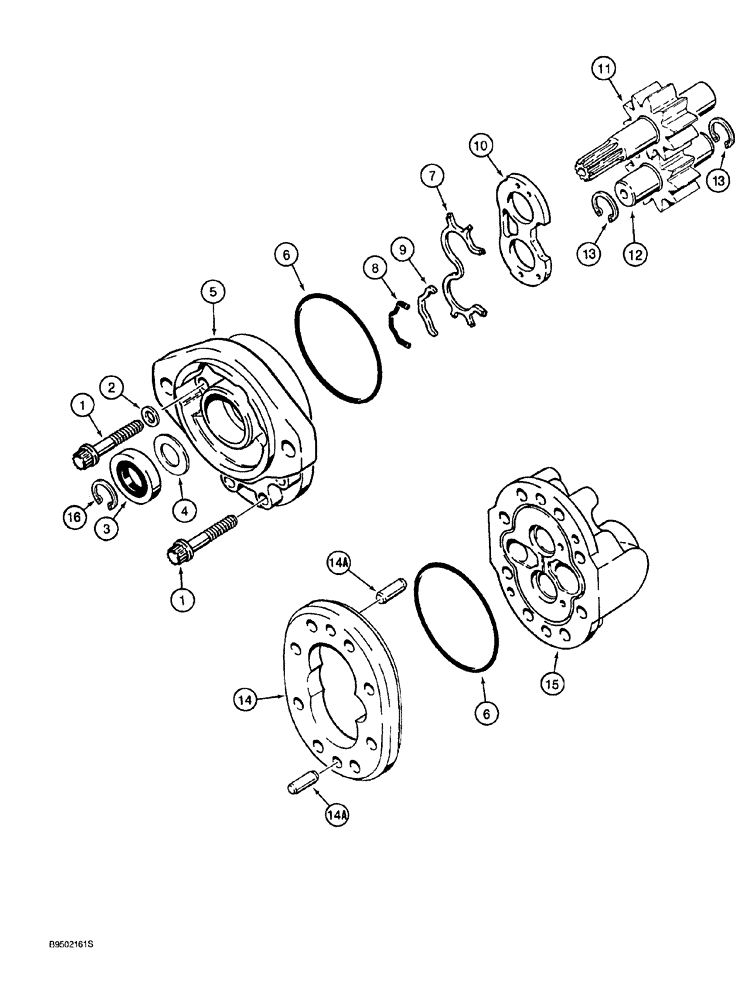

Запчасти Case 921 (7-024) - BRAKE PUMP (07) - BRAKES

L129931

PUMP

ASSY., brake, see Figure 7-008 for mounting, Includes: Ref. 1 - 16

1шт.

1

380-2532

12 PT SCREW,Flg, 5/16" - 18 x 2", Gr 8

BOLT, 12 point flange, 5/16 NC x 2 inch

8шт.

2

NSS

NOT SOLD SEPARAT

WASHER shaft end cover, used as a spacer

4шт.

Part of kit P/N 1272638C2

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

Part of kit P/N 1272638C2

1шт.

4

N13135

WASHER

special

1шт.

Part of kit P/N 1272638C2

1шт.

5

H435657

COVER

drive shaft end

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING end cover

2шт.

Part of kit P/N 1272638C2

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET shaft end cover

1шт.

Part of kit P/N 1272638C2

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL black, shaft end cover

1шт.

Part of kit P/N 1272638C2

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL white, shaft end cover

1шт.

Part of kit P/N 1272638C2

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE thrust

1шт.

Part of kit P/N 1272638C2

1шт.

11

100106A1

PINION

GEAR drive

1шт.

12

N13658

SPROCKET ASSY.

GEAR idler, Includes: Ref. 13

1шт.

13

S300377

RING, SNAP

RING SNAP

2шт.

14

N13657

BODY

HOUSING ASSY., gear, Includes: Ref. 14A

1шт.

14a

71120

VALVE

PIN dowel

4шт.

15

S300370

COVER

port end

1шт.

16

100-21137

SNAP RING,1.375", Int, #137

(Replaces A32181)

1шт.

1272638C2

SEAL KIT

seal, Includes: Ref. 2 - 4, 6 - 10

1шт.
