(7-022) - BRAKE ACCUMULATOR VALVE

Запчасти Case 921 (7-022) - BRAKE ACCUMULATOR VALVE (07) - BRAKES

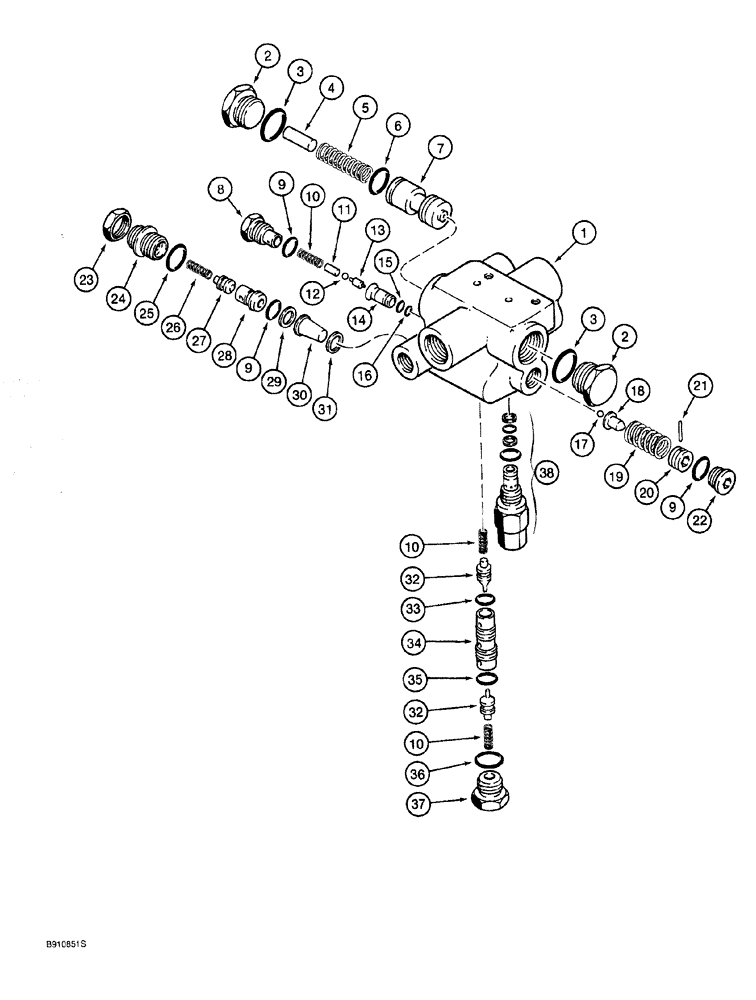

Схема запчастей Case 921 - (7-022) - BRAKE ACCUMULATOR VALVE (07) - BRAKES
9
30
38
23
7
22
5
24
35
9
19
32
2
17
27
29
13
3
10
11
26
33
37
32
28
12
3
9
16
36
15
31
6
10
2
1
4
8
14
21
10
34
18
25
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L128116

VALVE

ASSY., accumulator, see Figure 7-008 for mounting, Includes: Ref. 1 - 38

1шт.

232531A1R

REMAN-HYD VALVE

921, Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve, brake accumulator

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG large, Includes: Ref. 3

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING plug

1шт.

Part of kit P/N S302036

1шт.

4

NSS

NOT SOLD SEPARAT

ROD plunger

1шт.

5

S302035

SPRING

rod

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING spool, small

1шт.

Part of kit P/N S302036

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG special

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING plug

3шт.

Part of kit P/N S302036

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING small

3шт.

11

NSS

NOT SOLD SEPARAT

ROD plunger

1шт.

12

NSS

NOT SOLD SEPARAT

BALL poppet

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET spool

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING spool, large

1шт.

Part of kit P/N S302036

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING spool, small

1шт.

Part of kit P/N S302036

1шт.

17

NSS

NOT SOLD SEPARAT

BALL seat

1шт.

18

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

19

S302034

SPRING

large

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG hex, socket headless

1шт.

Part of kit P/N S302036

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW set

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG hex, socket

1шт.

23

NSS

NOT SOLD SEPARAT

NUT hex

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW ASSY., adjusting, includes washer

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING screw

1шт.

Part of kit P/N S302036

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

Part of kit P/N S302036

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER outer

1шт.

30

NSS

NOT SOLD SEPARAT

FILTER valve

1шт.

Part of kit P/N S302036

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER inner

1шт.

32

NSS

NOT SOLD SEPARAT

POPPET valve

2шт.

Part of kit P/N S302036

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING small, spool

1шт.

Part of kit P/N S302036

1шт.

34

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING large, spool

1шт.

Part of kit P/N S302036

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING plug

1шт.

Part of kit P/N S302036

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG end

1шт.

38

S302033

VALVE

relief

1шт.

S302036

SEAL KIT

KIT repair, Includes: Ref. 3, 6, 9, 15, 16, 20, 25, 27, 30, 32, 33, 35, 36

1шт.
