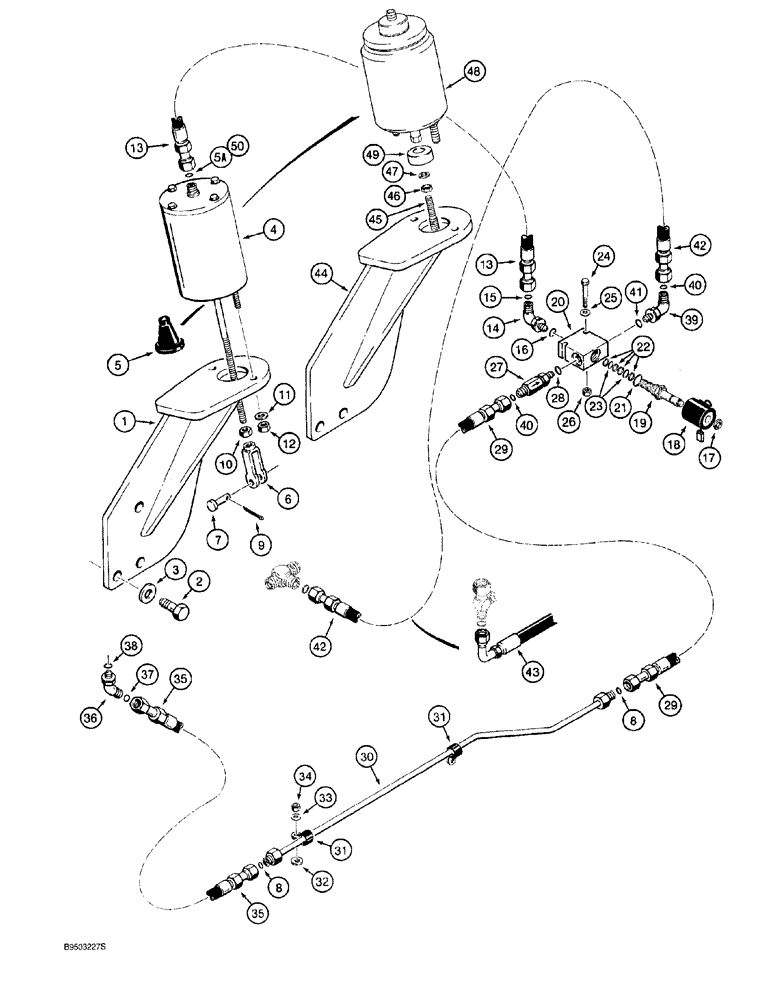

Запчасти Case 921 (7-020) - PARKING BRAKE HYDRAULIC CIRCUIT (07) - BRAKES

1

L129069

SUPPORT

BRACKET mounting, parking brake actuator, if used

1шт.

2

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

3шт.

3

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

3шт.

4

L129790

ACTUATOR

parking brake, if used, Includes: Ref. 5, 5A

1шт.

5

129325A1

BOOT

dust

1шт.

5a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

1шт.

7

527-204

CLEVIS PIN,M12 x 43

clevis, 10 x 43 mm

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

32-820

COTTER PIN,1/8" x 1 1/4"

1/8" x 1 1/4"

1шт.

10

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

12

425-118

NUT,1/2"-20, G5

2шт.

13

L129824

HOSE ASSY.

21-11/16 inch (550 mm) long, actuator to elbow at valve

1шт.

14

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 15, 16

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

L129814

VALVE, BRAKE

ASSY., solenoid, Includes: Ref. 17 - 23

1шт.

17

S302100

NUT

hex, special

1шт.

18

S302097

SPINDLE

SOLENOID valve

1шт.

19

S302099

CARTRIDGE

valve, internal components not serviced separately

1шт.

20

S302098

VALVE BODY

1шт.

S302101

SEAL KIT

seal, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING large

1шт.

22

NSS

NOT SOLD SEPARAT

RING backup

4шт.

23

NSS

NOT SOLD SEPARAT

O-RING small

2шт.

24

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

26

231-1444

NUT,1/4"-20, GB

2шт.

27

L129820

VALVE

check, Includes: Ref. 28

1шт.

29

L128710

HOSE ASSY.

25-5/8 inch (650 mm) long, relief, Serial Range: valve-tube

1шт.

30

L129851

TUBE,12.7 mm OD x 881, 90 mm L

relief valve hose to brake manifold hose

1шт.

31

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

P-type, Uses existing brake tube hardware, See Figure 7-10

2шт.

32

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

34

231-1446

NUT,3/8" - 16, Gr 5

1шт.

35

L129824

HOSE ASSY.

21-11/16 inch (550 mm) long, tube to brake manifold

1шт.

36

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

45°, 11/16-16 face seal x 9/16-18 inch adj O-ring boss, Includes: Ref. 37, 38

1шт.

37

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

39

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Includes: Ref. 40, 41

1шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end

1шт.

42

L129892

HOSE ASSY.

30-3/4 inch (780 mm) long, return, see Figure 7-014 for tee continuation of circuit, Serial Range: -JAK0026022

1шт.

43

108656A1

HOSE ASSY.

34-1/16 inch (865 mm) long, return, Start Serial: JAK0026022

1шт.

44

184621A1

SUPPORT

BRACKET mounting, parking brake actuator, if used

1шт.

45

184623A1

ROD,THREADED

THREADED ROD parking brake actuator, if used

1шт.

46

829-1410

NUT,M10 x 1.5, Cl 10.9

If Used

1шт.

47

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

48

184622A1

ACTUATOR

parking brake, if used, Includes: Ref. 49, 50

1шт.

49

NSS

NOT SOLD SEPARAT

BOOT actuator

1шт.

50

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.
