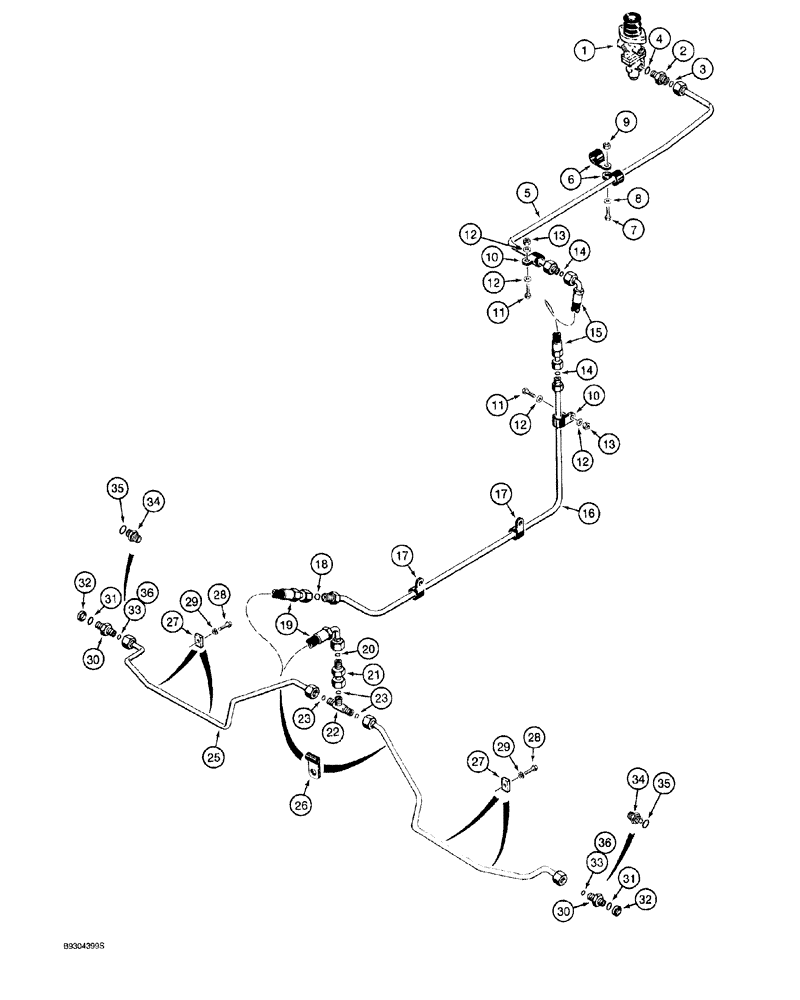

Запчасти Case 921 (7-018) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO REAR AXLE (07) - BRAKES

1

L129699

VALVE

ASSY., brake, main, see Figure 7-026

1шт.

2

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

ADAPTER straight, 1-14 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 3, 4

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

5

L129767

TUBE,15.87 mm OD

main brake valve to hose

1шт.

6

129083R1

CLAMP

P-type, 5/8 inch ID, Replaces: 49885

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

1шт.

10

129083R1

CLAMP

P-type, 5/8 inch ID, Replaces: 49885

2шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

13

231-1446

NUT,3/8" - 16, Gr 5

Replaces: 131-217

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

L129763

HOSE ASSY.

12-5/8 inch (320 mm) long, main brake valve tube to rear brake tube

1шт.

16

L129784

TUBE,15.87 mm OD

brake, hose to hose

1шт.

17

129083R1

CLAMP

P-type, 5/8 inch ID, Replaces: 49885, uses existing brake tube hardware, see Figure 7-010

2шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

L129761

HOSE ASSY.

33-1/2 inch (850 mm) long, Serial Range: tube-tee

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

L129633

TUBE,12.7 mm OD x 60 mm L

hose to tee

1шт.

22

201-409

TEE,13/16"-16 ORFS

13/16-16 inch face seal branch x face seal x face seal, Includes: Ref. 23

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

24

106715A1

TUBE,12.7 mm OD, 770, 284 mm Length

brake, right-hand rear

1шт.

25

L129641

TUBE,12.7 mm OD

brake, left-hand rear

1шт.

26

L12296

CLAMP

rear brake tube retaining, uses existing rear axle hardware

2шт.

27

L129191

CLAMP

TAB brake tube retaining

4шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

29

492-11025

LOCK WASHER,1/4"

4шт.

30

L128668

ADAPTER

straight, special, Includes: Ref. 31 - 33, no longer available, order Ref. 34

2шт.

31

100055A1

O-RING,151mm ID x 26mm Width

adapter

1шт.

32

S301414

BACK-UP RING

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

34

120782A1

ADAPTER

straight, special, Includes: Ref. 35

2шт.

35

120879A1

O-RING,0.546" ID x 0.685" OD x 0.139"

O-RING adapter

1шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Not included with 120782A1 adapter

2шт.
